Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Body Integrated Unit

Body Integrated Unit

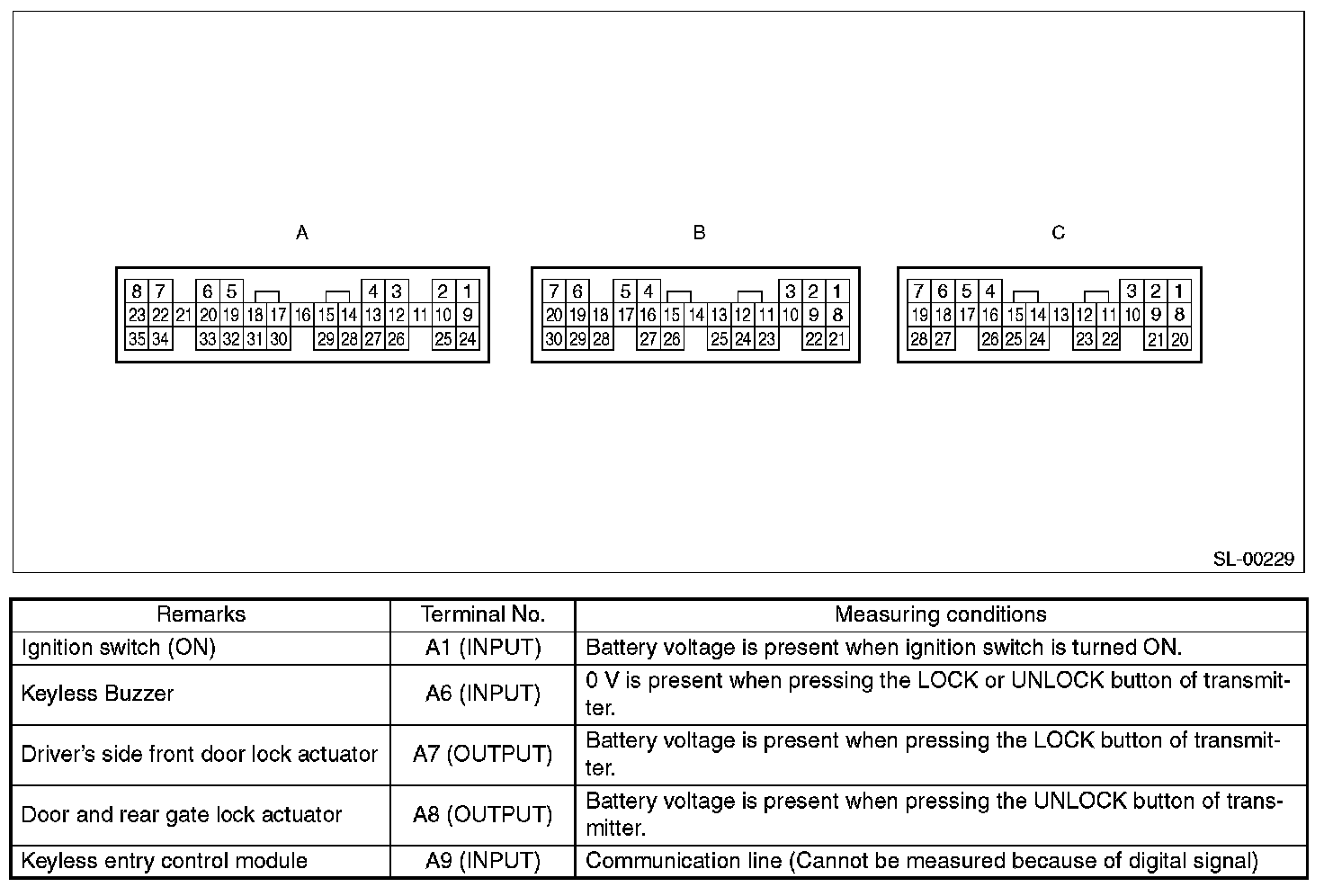

Electrical Specification Part 1:



Electrical Specification Part 2:
