Rear Quarter Trim

REAR QUARTER TRIM

REMOVAL

1. SEDAN MODEL

1. Remove the rear seat.

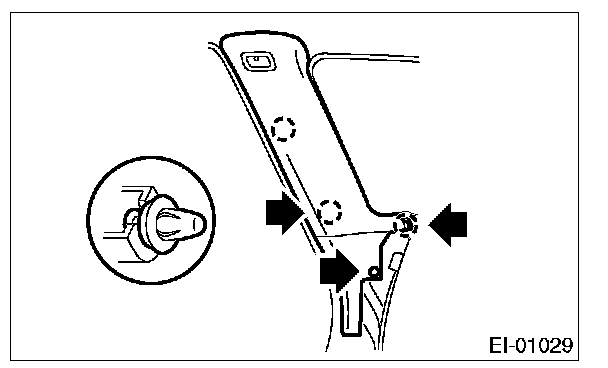

2. Turn over the trim, and remove the quarter trim rear by pressing the claw (A) of metal clip using flat tip screwdriver or the like.






CAUTION: When metal clip is removed or damaged, replace the bolt of trim and metal clip with new ones.

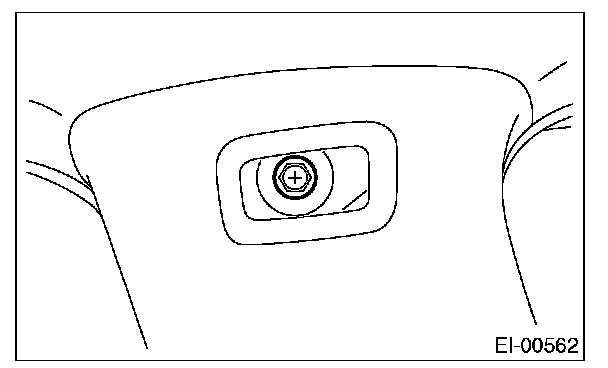

3. Remove the cap on the upper side of trim, and remove the bolt inside.

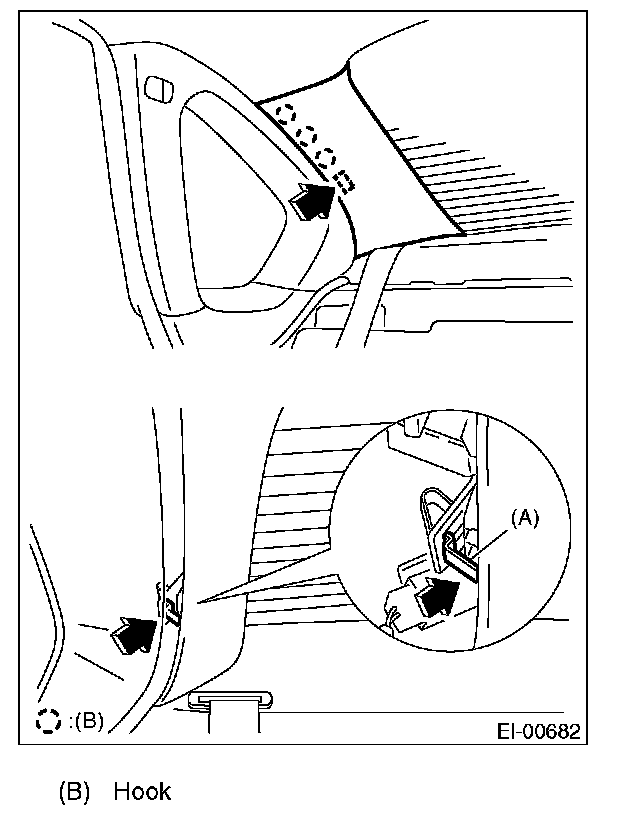

4. Remove the bolts (A), and remove the quarter trim (front).






2. WAGON MODEL

1. Remove the rear seat cushion and backrest shoulder.

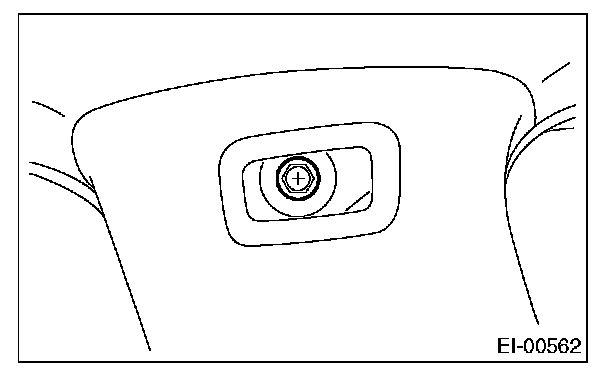

2. Remove the cap on the upper side of pillar trim, and remove the bolt inside.

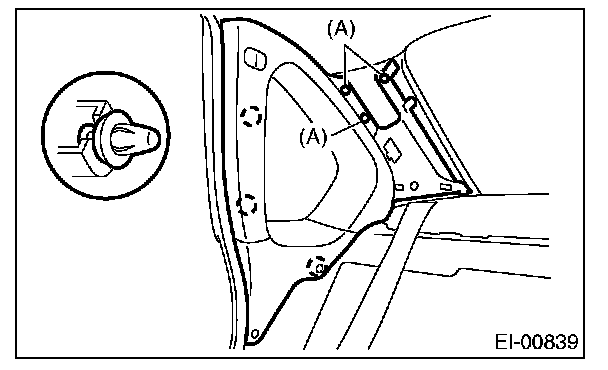

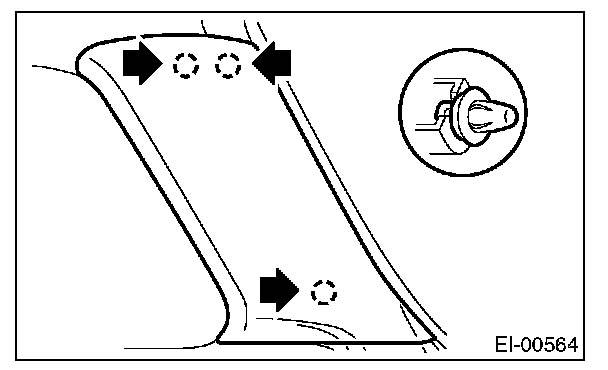

3. Remove the clip, and remove the quarter front pillar trim.






4. Remove the quarter rear pillar trim.






5. Remove the luggage floor box.

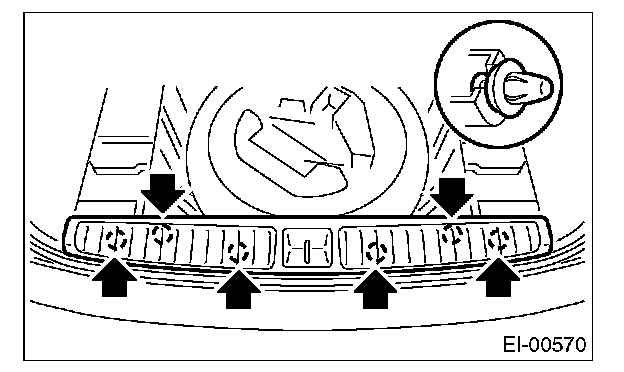

6. Remove the luggage floor end cover.

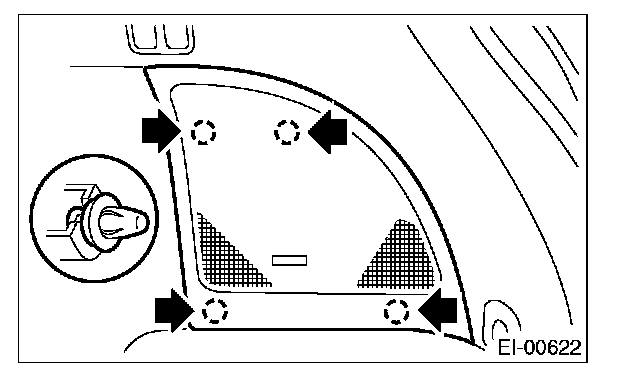

7. Remove the woofer cover. (Model with woofer)

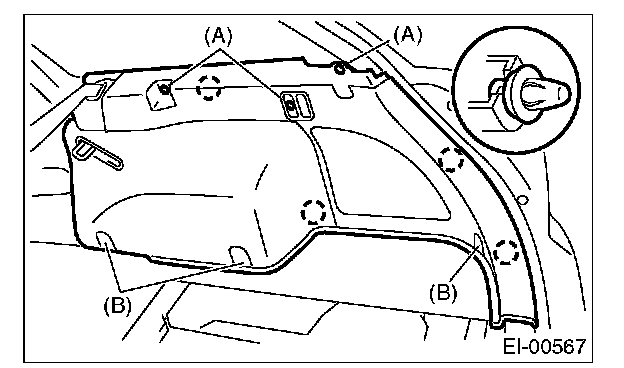

8. Remove the screws (A) and bolts (B), and remove the quarter lower trim.






NOTE:
- Remove the screw cover on the tonneau cover installing part.
- Pull out the shopping bag hook, remove the screw on back.

INSTALLATION

1. SEDAN MODEL

Install in the reverse order of removal.

2. WAGON MODEL

Install in the reverse order of removal.
