Lower Inner Trim

LOWER INNER TRIM

Inner Trim (Sedan Model):

Inner Trim (Wagon Model):

REMOVAL

1. Remove the hook, and remove the inside scuff plate.

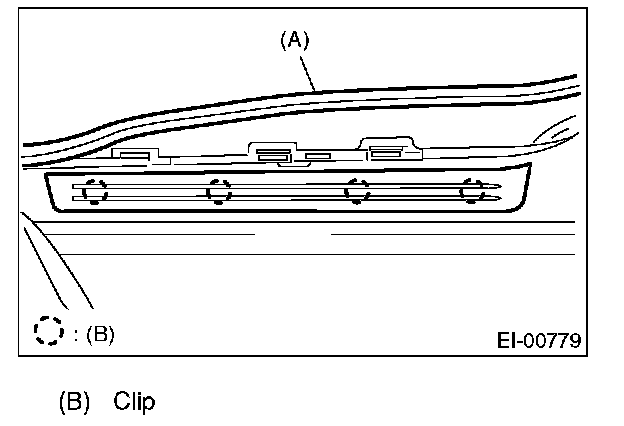

2. Remove the door molding (A), and remove the outside scuff plate.

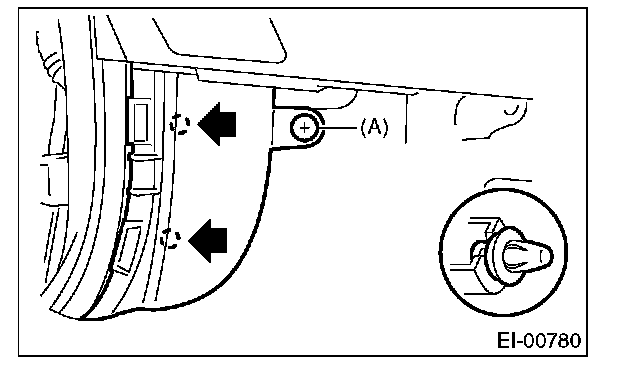

3. Remove the clip (A), and remove the front pillar lower trim.






4. Remove the rear seat cushion.

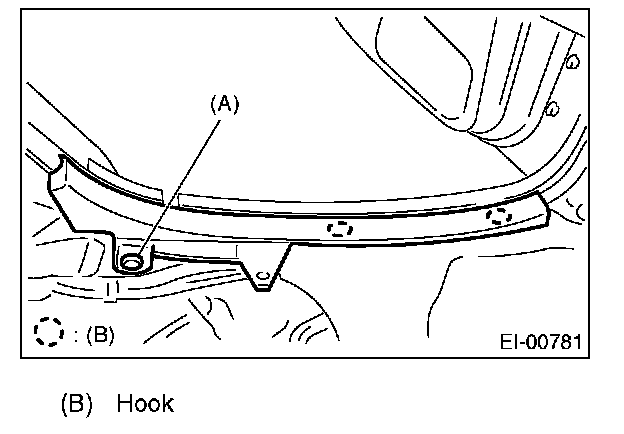

5. Remove the clip (A), and remove the inside scuff plate.

6. Remove the door molding (A) and door catcher cover (B), and then remove the outside scuff plate.

7. Remove the clips of the center pillar lower trim.

INSTALLATION

Install in the reverse order of removal.
