Passenger Assist Handle: Service and Repair

ASSIST GRIP

REMOVAL

1. Remove the screw cover, and remove the screw inside.

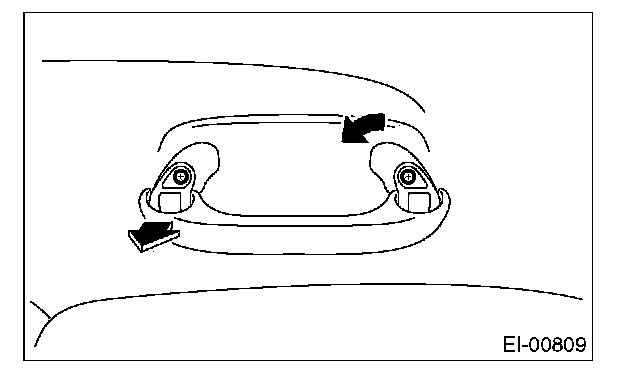

2. Pull the left side of assist grip toward you, and rotate the right side of it counterclockwise to remove.






3. Remove the roof trim.
4. Remove the bolts, and remove the assist grip bracket.






INSTALLATION

Install in the reverse order of removal.

CAUTION: Be sure to install the grommet to assist grip bracket. When install the assist grip without grommet, it may cause the faulty returning.
