Sub Frame Support Plate

Sub Frame Support Plate

REMOVAL
1. Lift-up the vehicle, and support the rear sub frame with support stand.

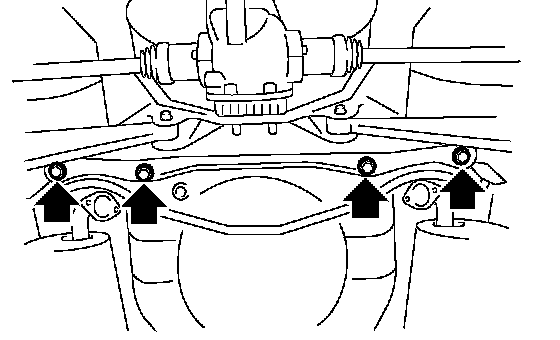

2. Remove the sub frame support plate.

INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Support plate to Sub frame 175 Nm (17.8 kgf-cm, 129 ft. lbs.)
Support plate to Body 65 Nm (6.6 kgf-cm, 48 ft. lbs.)

INSPECTION
Visually check the support plate for damage.
