Trunk / Liftgate Release Lever: Service and Repair

Trunk Lid Release Handle

REMOVAL

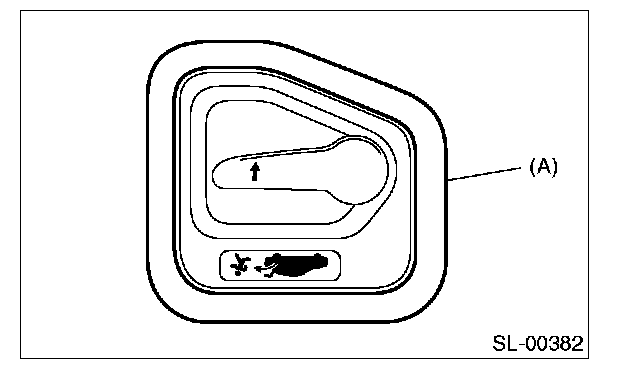

1. Remove the cover (A).
2. Remove the trunk lid trim.

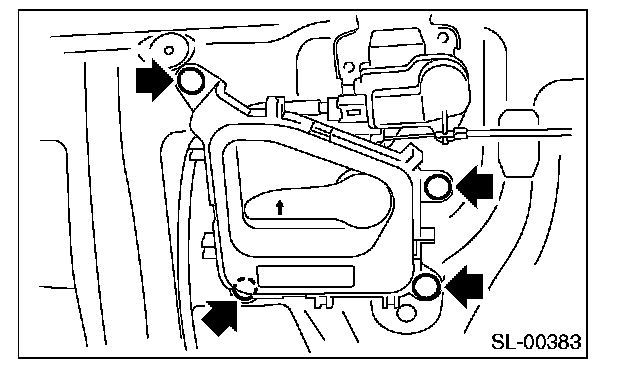

3. Remove the four clips to remove trunk lid release handle.

INSTALLATION
Install in the reverse order of removal.
