Rear Speaker

Rear Speaker

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the rear door trim.

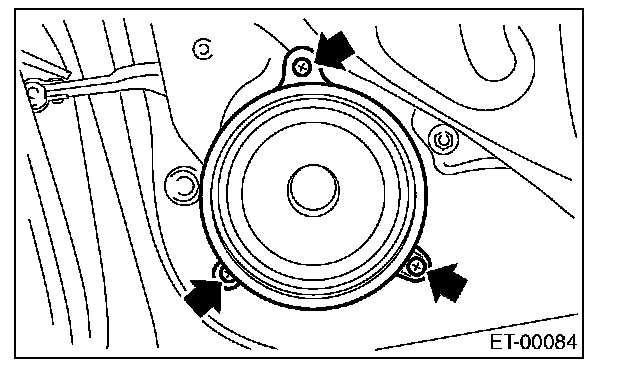

3. Remove the rear speaker mounting screws.
4. Disconnect the harness connector and remove rear speaker.

INSTALLATION
Install in the reverse order of removal.
