Front Speaker

Front Speaker

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the front door trim.

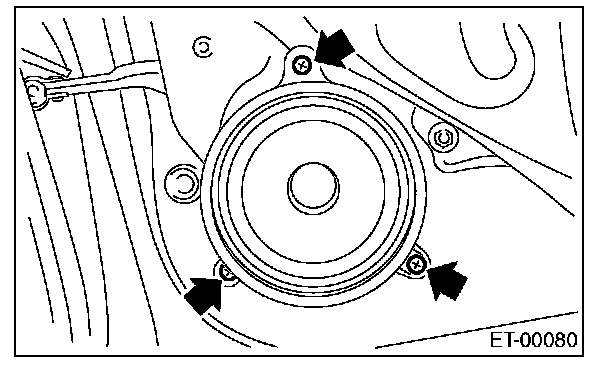

3. Remove the front speaker mounting screws.
4. Disconnect the harness connector and remove front speaker.

INSTALLATION
Install in the reverse order of removal.
