Diagnostic Strategies

BASIC DIAGNOSTICS PROCEDURE

Step 1 - 6:

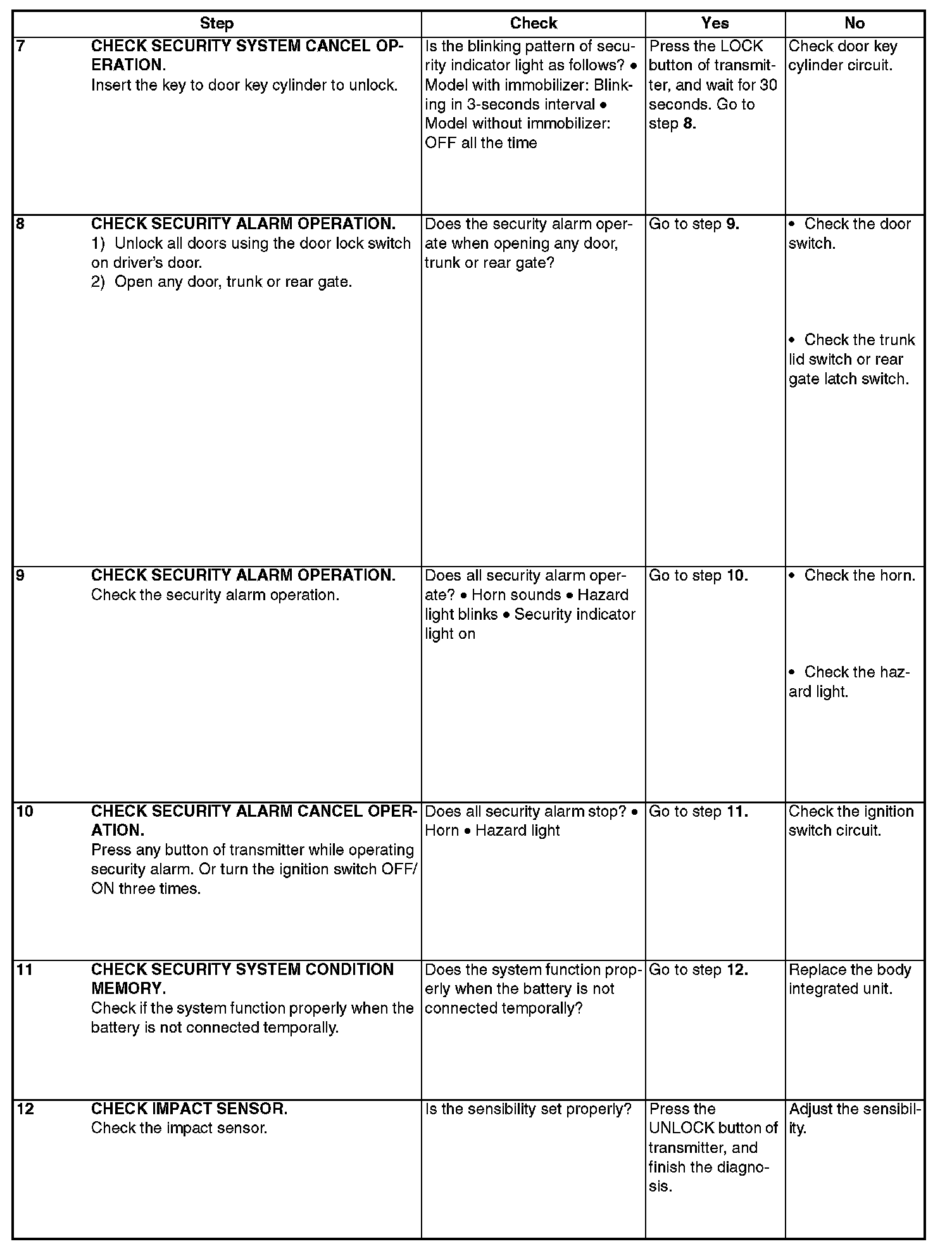

Step 7 - 12:

CAUTION:
- Security alarm ON/OFF setting
At the time of shipping from the plant, the security alarm is set to "ON". However, when {Security setting initialization} is performed with the Subaru select monitor, the security alarm automatically is set to "OFF". When security initialization has been performed, always return the ON/OFF setting for the security alarm to "ON".
- Siren YES/NO setting
The {Siren YES/NO} setting of the item {Unit customization} of the Subaru select monitor always shall be set "NO". If it is set to "YES", the horn of the security alarm will not sound.

NOTE:
When the following symptoms appear, inspect the function setting of body integrated unit. Initial Inspection and Diagnostic Overview
- The horn does not sound although security is operating.
- When the security is turned on by transmitter, the horn sounds.
