Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Security and Locks >> Diagnosis By Symptom >> Check Trunk Lid Switch (Sedan) or Rear Gate Latch Switch (Wagon)

Check Trunk Lid Switch (Sedan) or Rear Gate Latch Switch (Wagon)

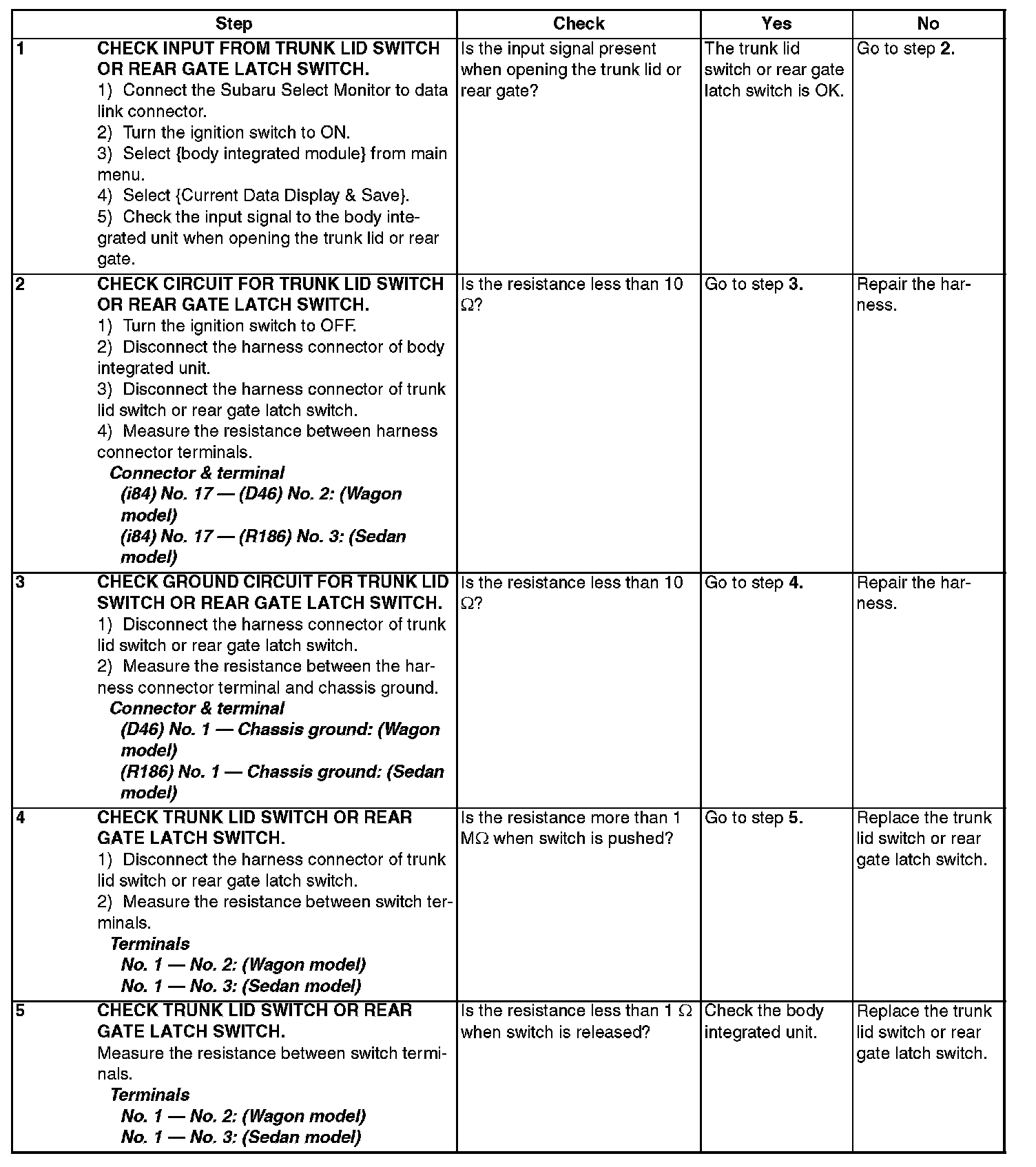

Step 1 - 5:
