Antenna Amplifier: Service and Repair
Antenna AmplifierREMOVAL

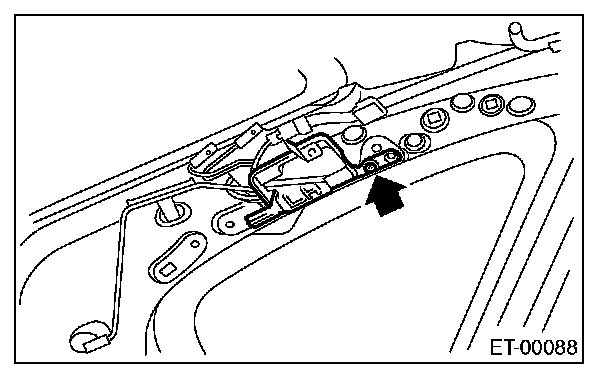

1. SEDAN MODEL
1. Disconnect the ground cable from battery.
2. Remove the rear quarter trim.
3. Disconnect the harness connectors and terminals.
4. Remove the curtain airbag module.
5. Remove the screw and detach antenna amplifier.

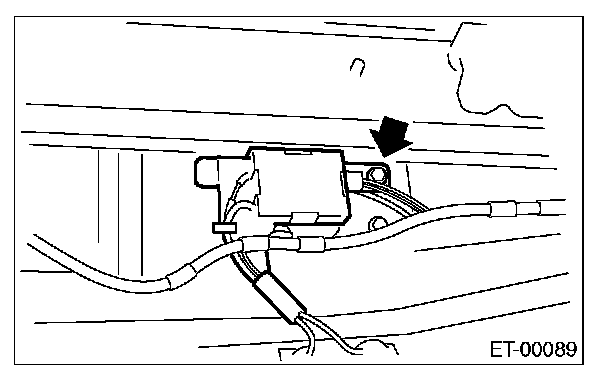

2. WAGON MODEL
1. Disconnect the ground cable from battery.
2. Remove the rear gate trim.
3. Disconnect the harness connectors and terminals.
4. Remove the screw and detach antenna amplifier.
INSTALLATION
Install in the reverse order of removal.
