P1762
P1762
DTC P1762 LATERAL ACCELERATION SENSOR CIRCUIT HIGH
DTC DETECTING CONDITION
-
Faulty lateral G sensor output voltage

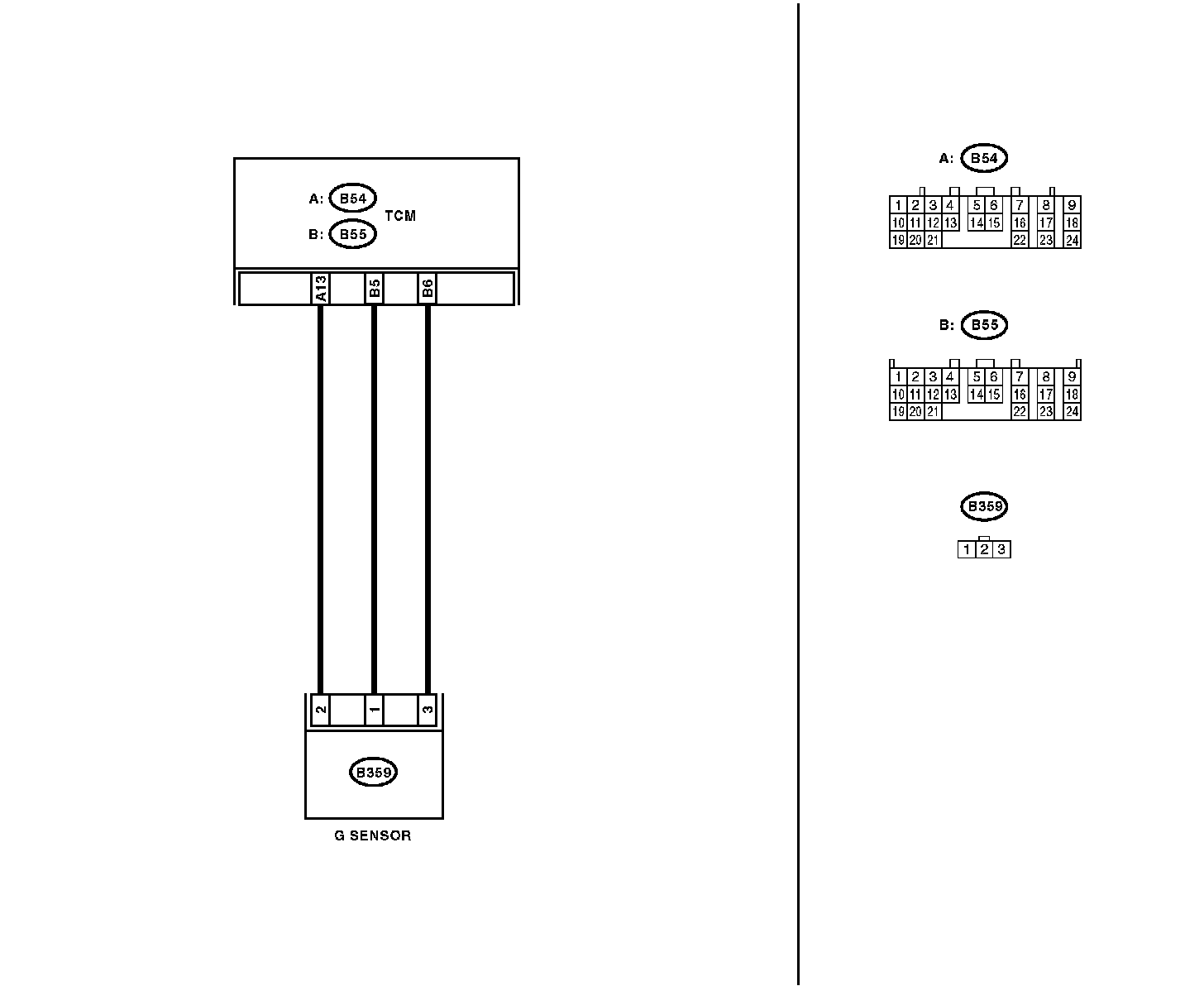

WIRING DIAGRAM
