P1574
P1574
DTC P1574 KEY COMMUNICATION FAILURE
DTC DETECTING CONDITION:
Failure of body integrated unit to verify key (transponder) ID code

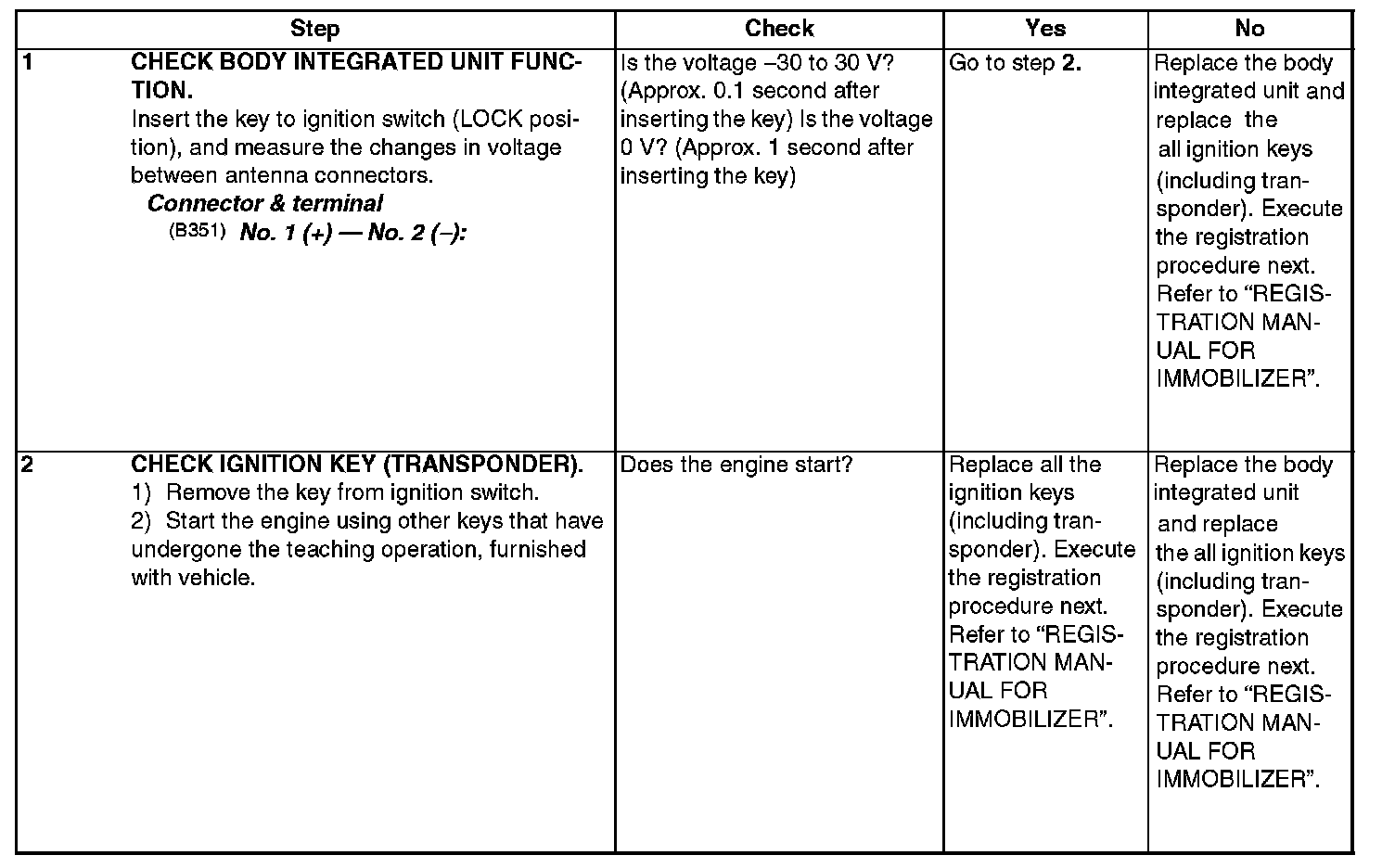

Step 1 - 2:
