P0743

DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT ELECTRICAL

DTC DETECTING CONDITION
- The output signal circuit of lock up solenoid is open or shorted.

TROUBLE SYMPTOM
- No lock-up (after engine warm-up)

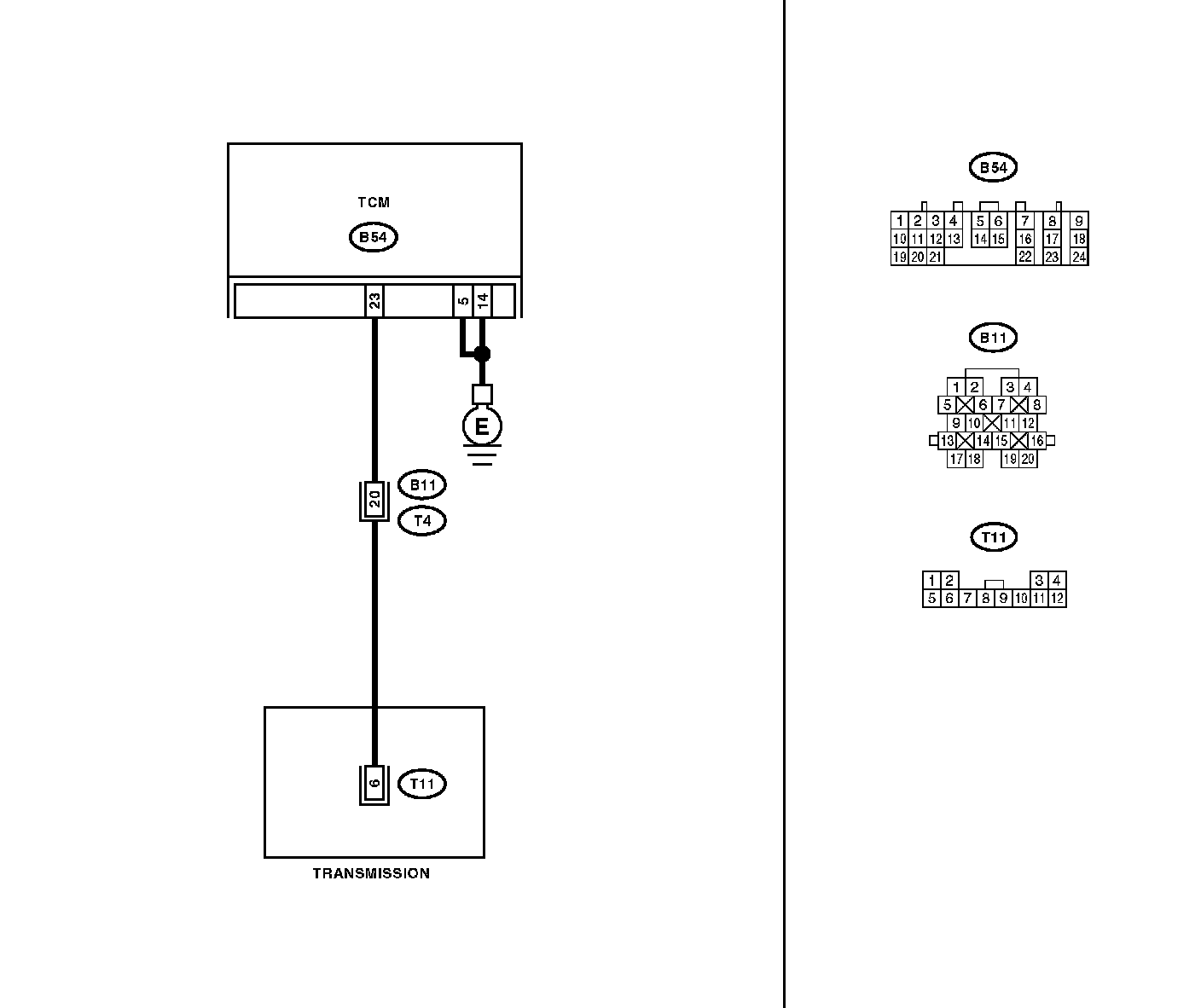

WIRING DIAGRAM
