P0724

DTC P0724 TORQUE CONVERTER/BRAKE SWITCH B CIRCUIT HIGH

DTC DETECTING CONDITION
- Brake switch malfunction, open input signal circuit

TROUBLE SYMPTOM
- Gear is not shifted down when climbing a hill.

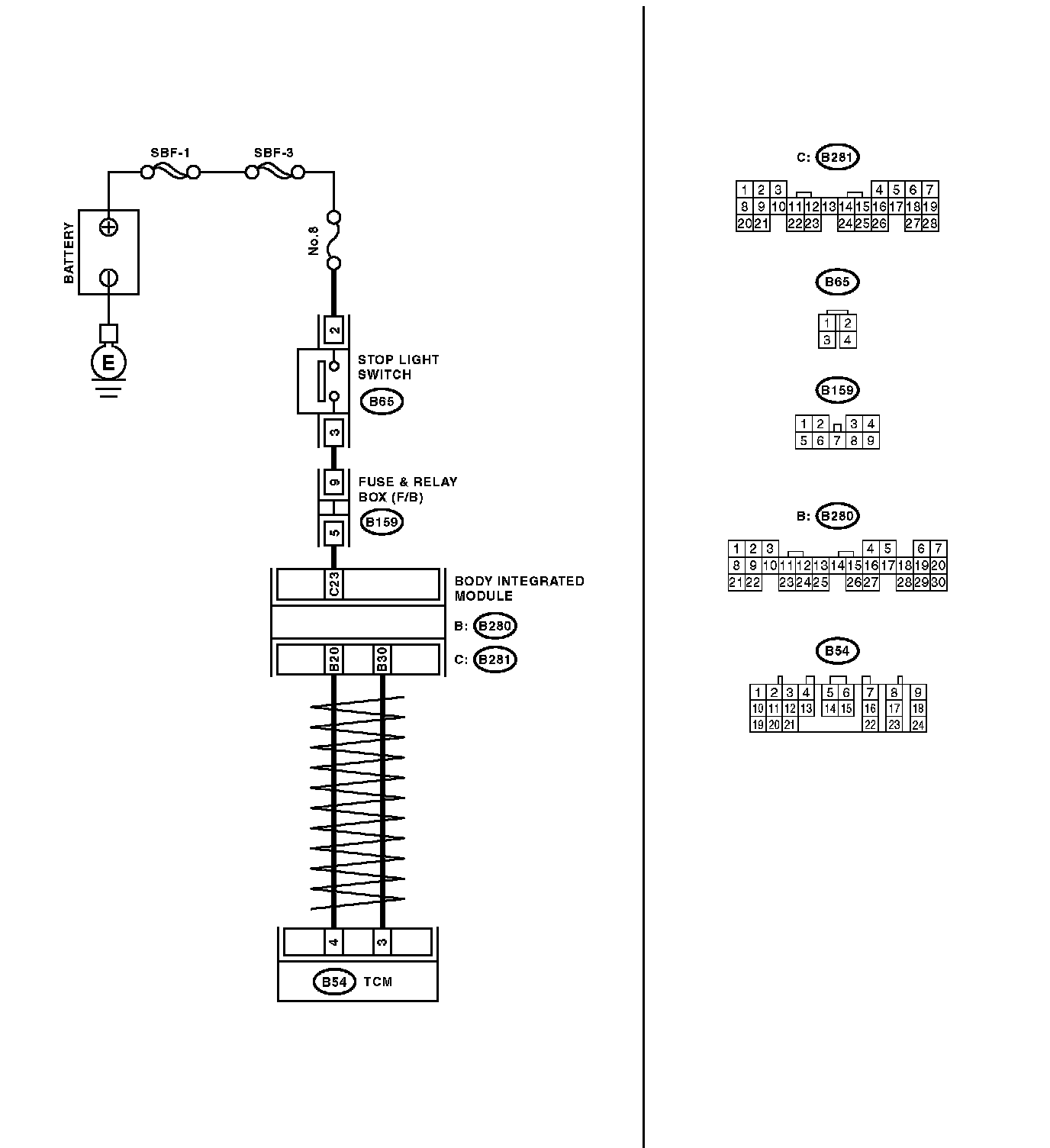

WIRING DIAGRAM
