Tire Pressure Monitoring System

DTC 61 VEHICLE SPEED IS ABNORMAL

DTC DETECTING CONDITION:
Vehicle speed function code is received from transmitter however vehicle speed signal cannot be input.

TROUBLE SYMPTOM:
Tire pressure warning light blinks.

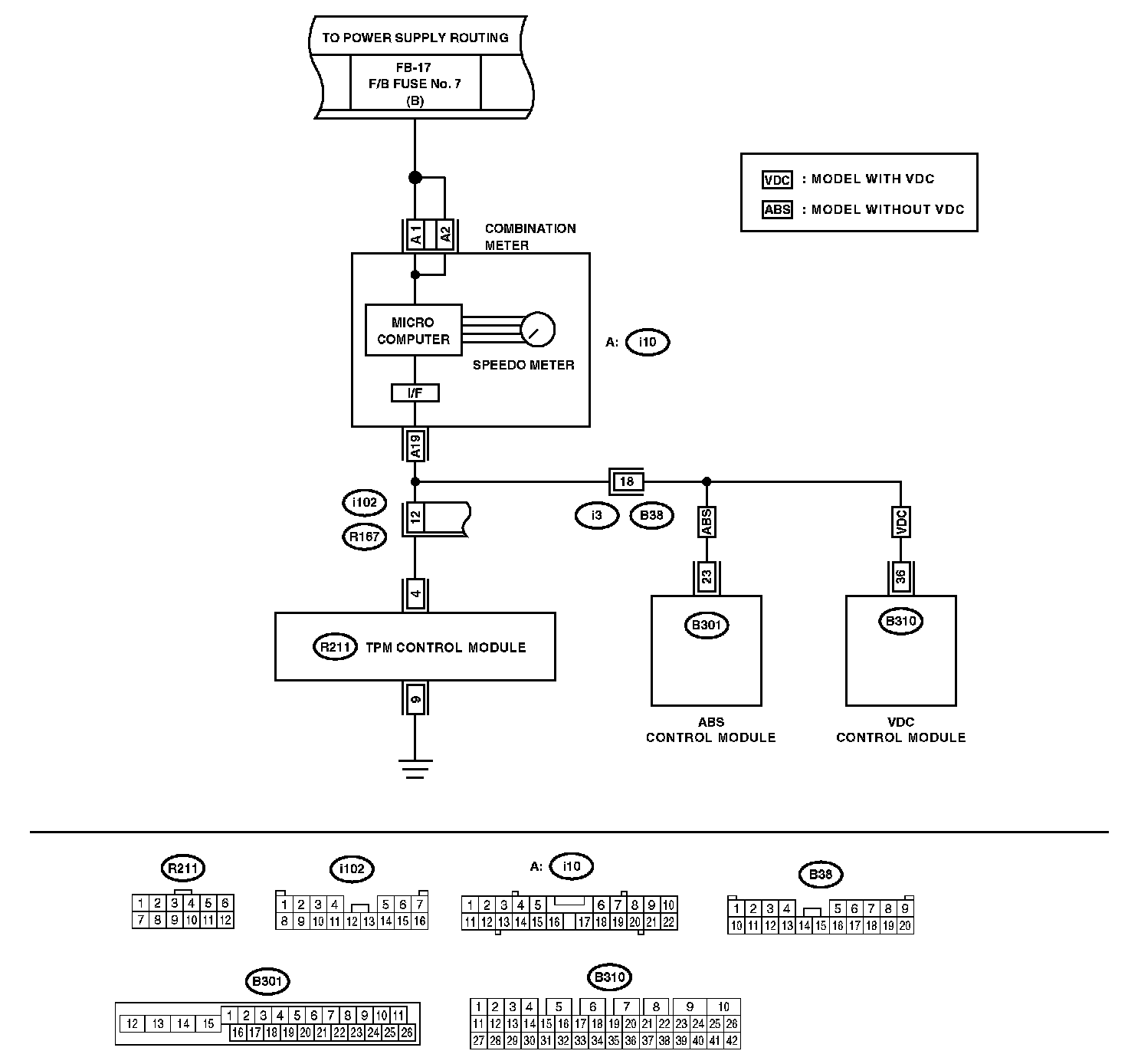

Wiring Diagram:

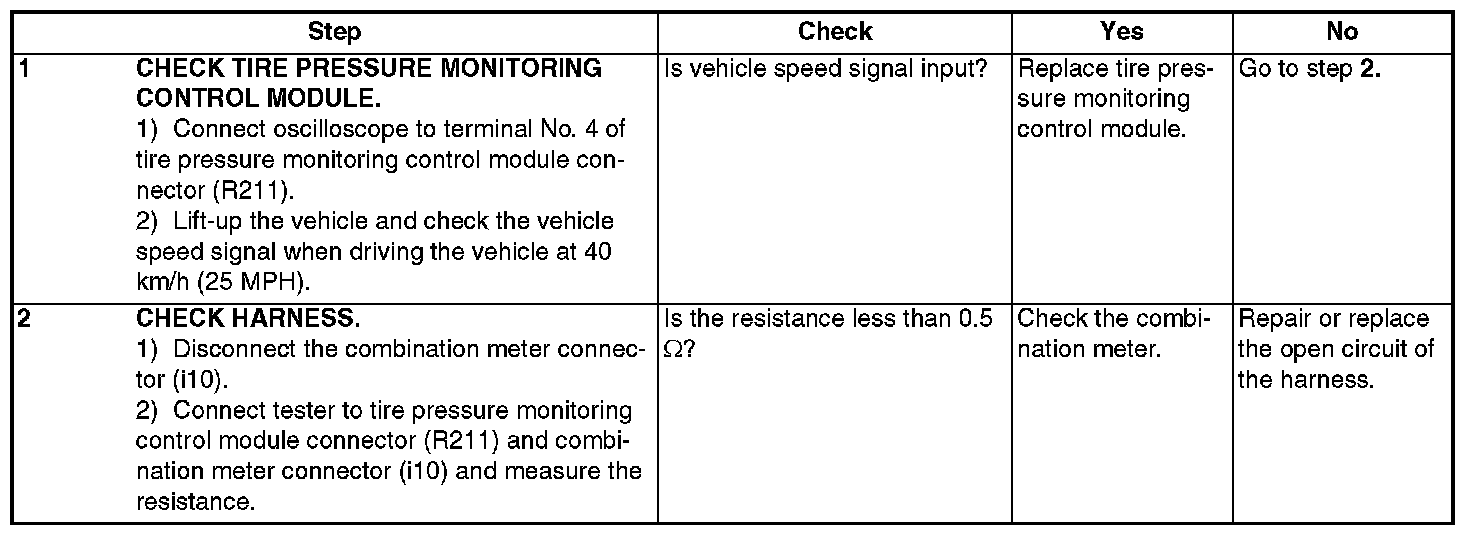

Step 1 - 2:
