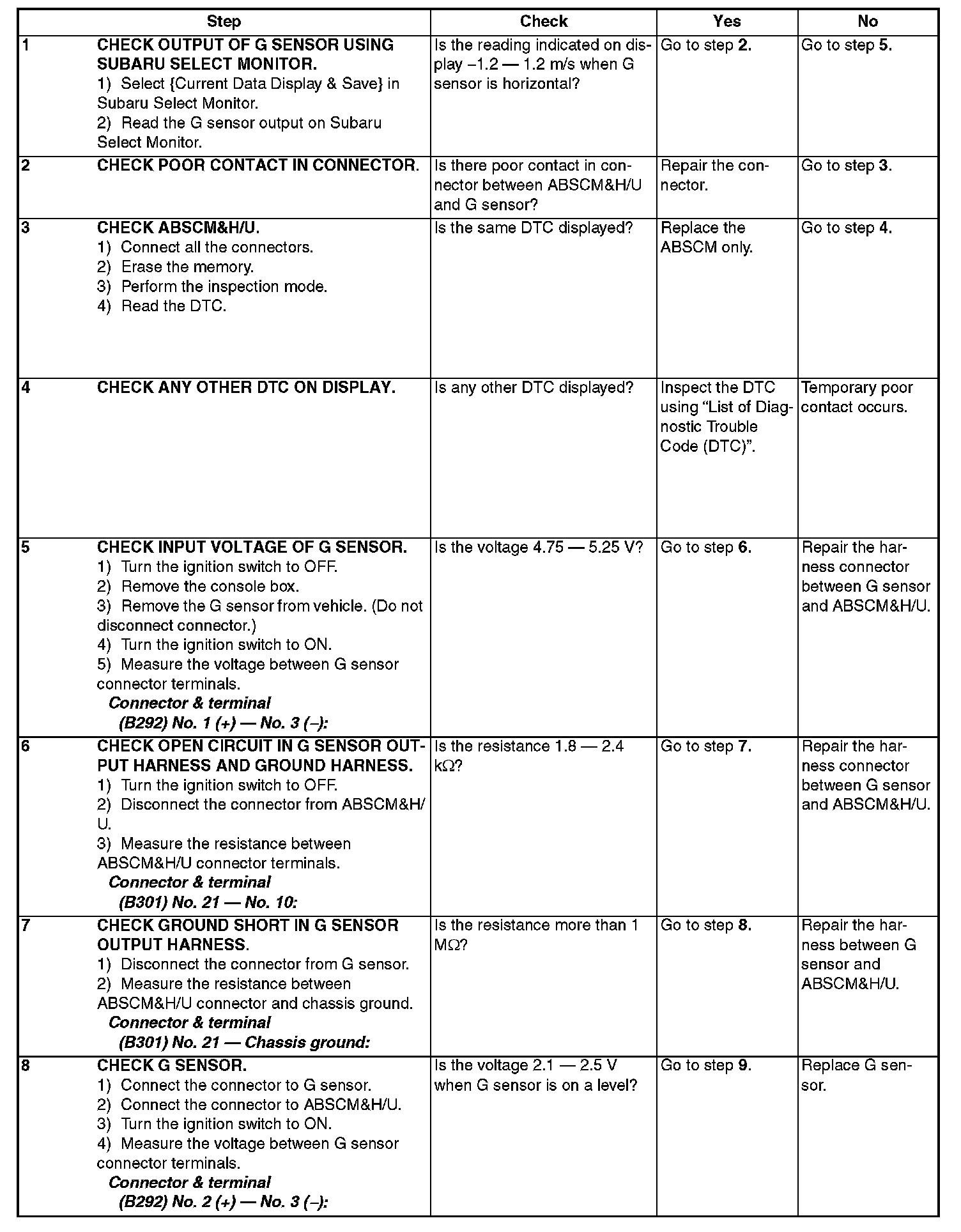

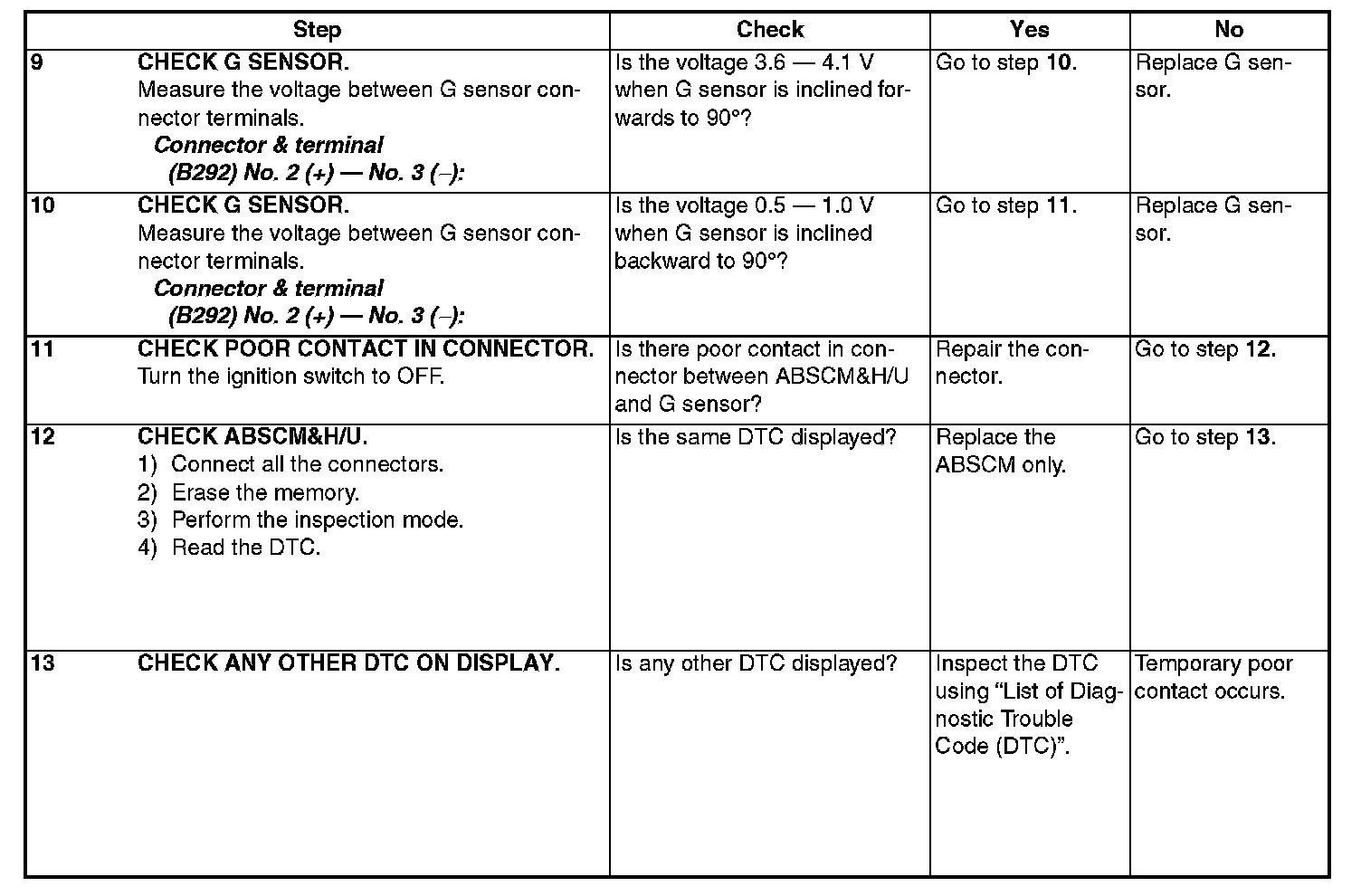

DTC C0118 G SENSOR OUTPUT VOLTAGE MALFUNCTION
DTC DETECTING CONDITION: Defective G sensor
TROUBLE SYMPTOM: ABS does not operate.

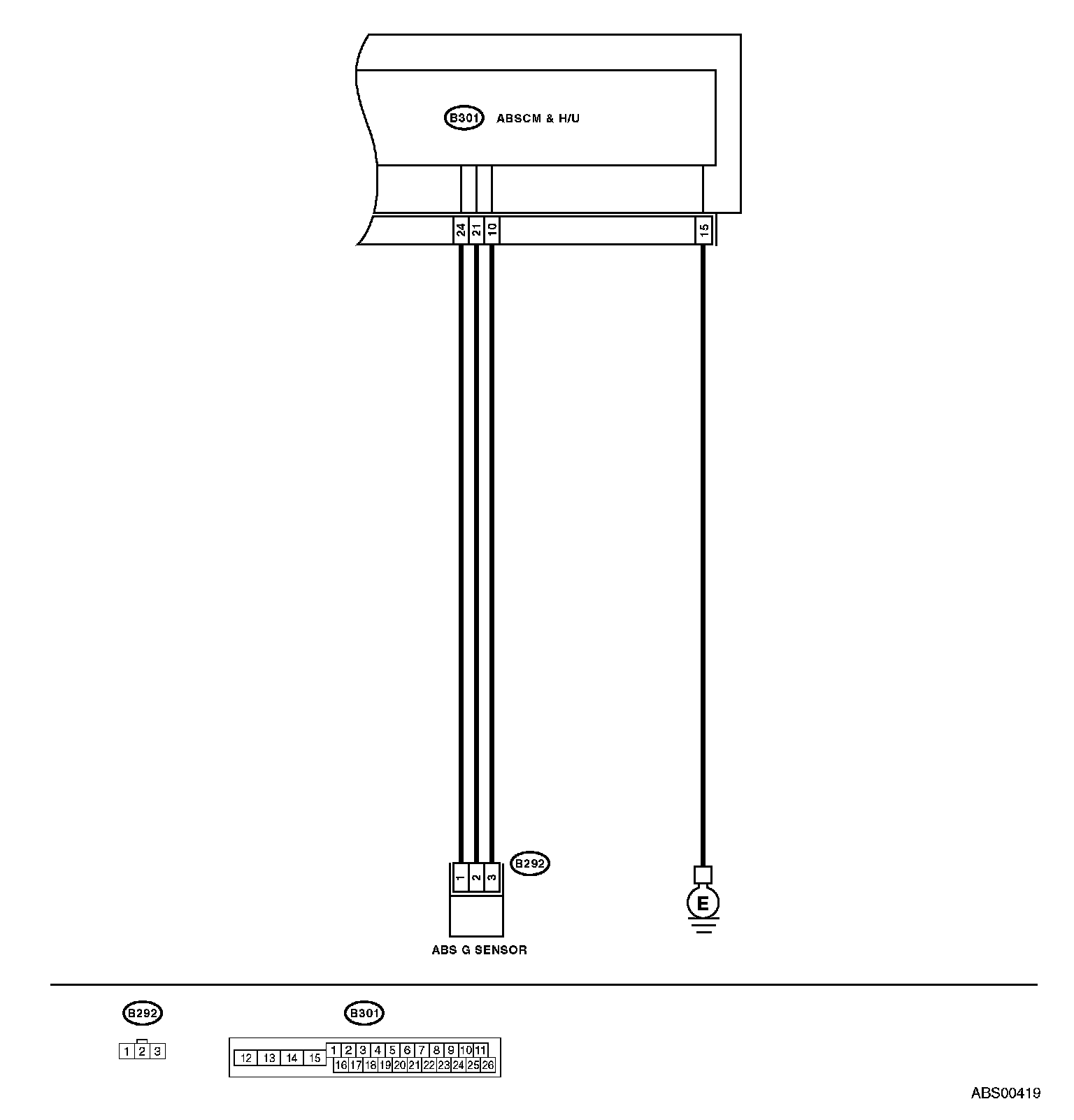

WIRING DIAGRAM
