Lateral G Sensor Power/Output

DTC C0073 LATERAL G SENSOR POWER/OUTPUT

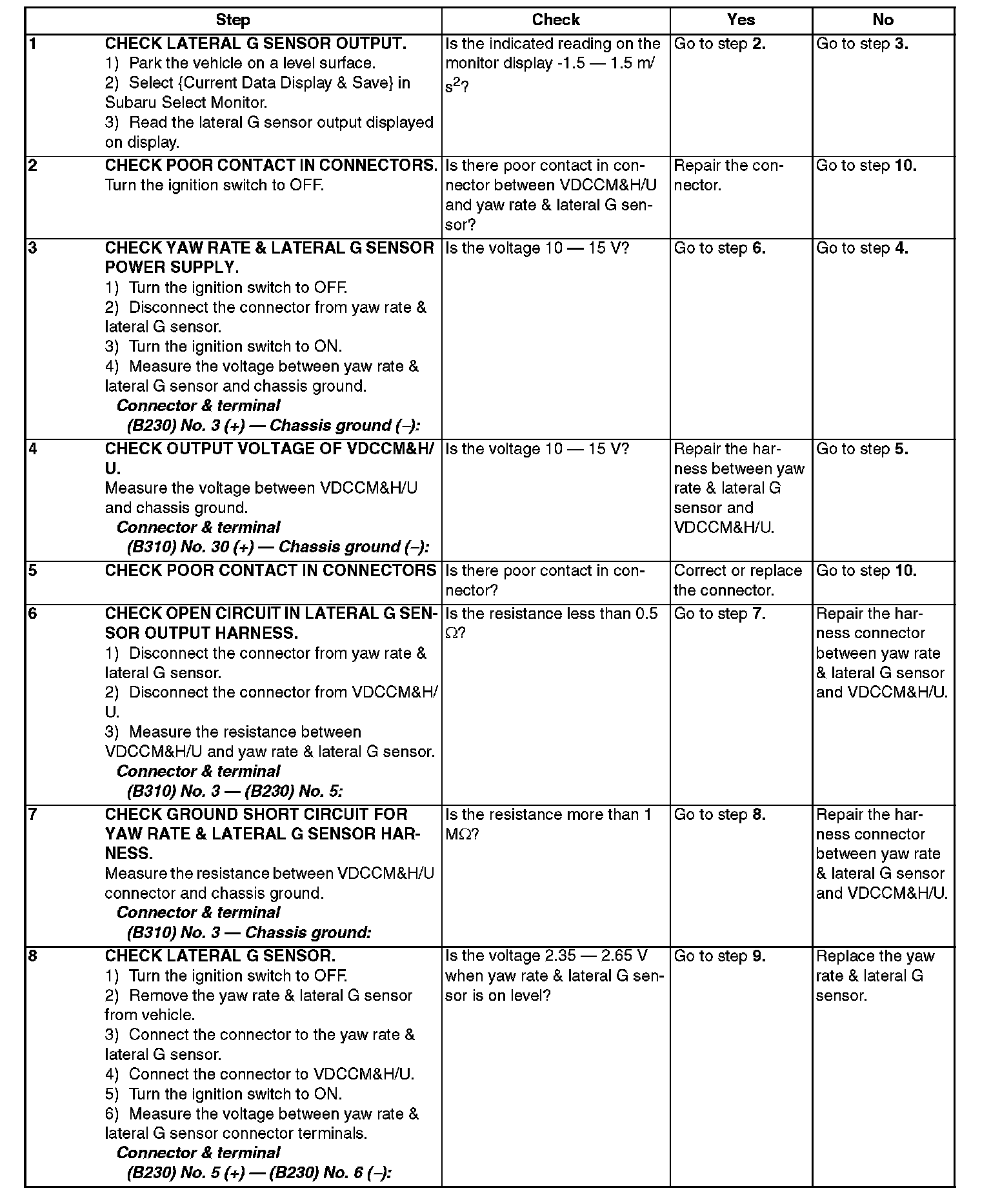

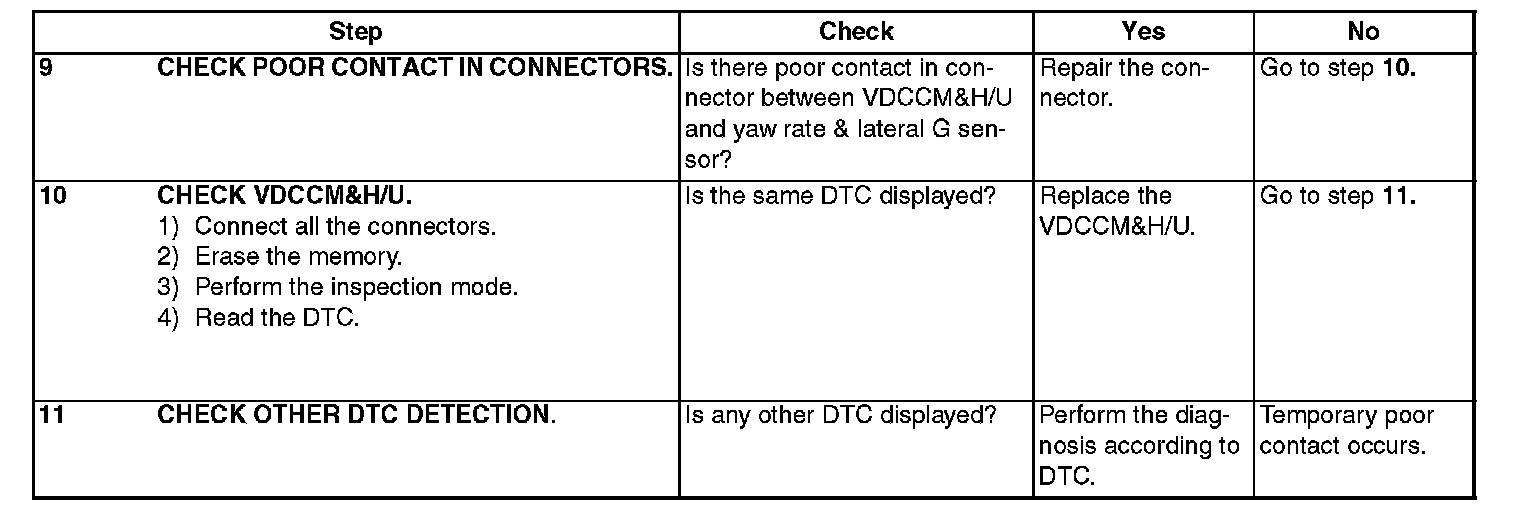

DTC DETECTING CONDITION:
Defective lateral G sensor

DTC DETECTING CONDITION: VDC does not operate.

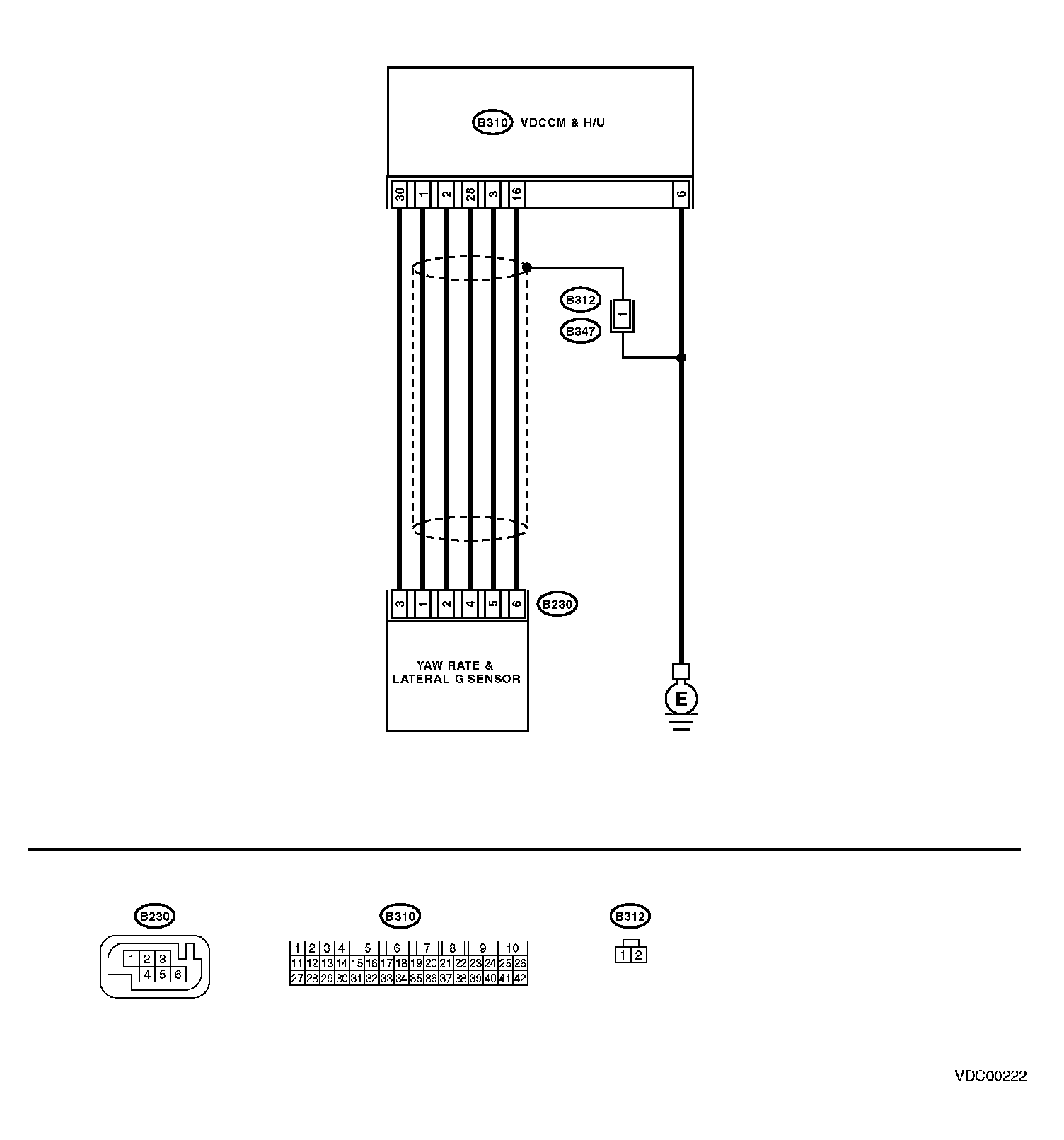

WIRING DIAGRAM
