Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0073 >> Excessive Lateral G Sensor Output

Excessive Lateral G Sensor Output

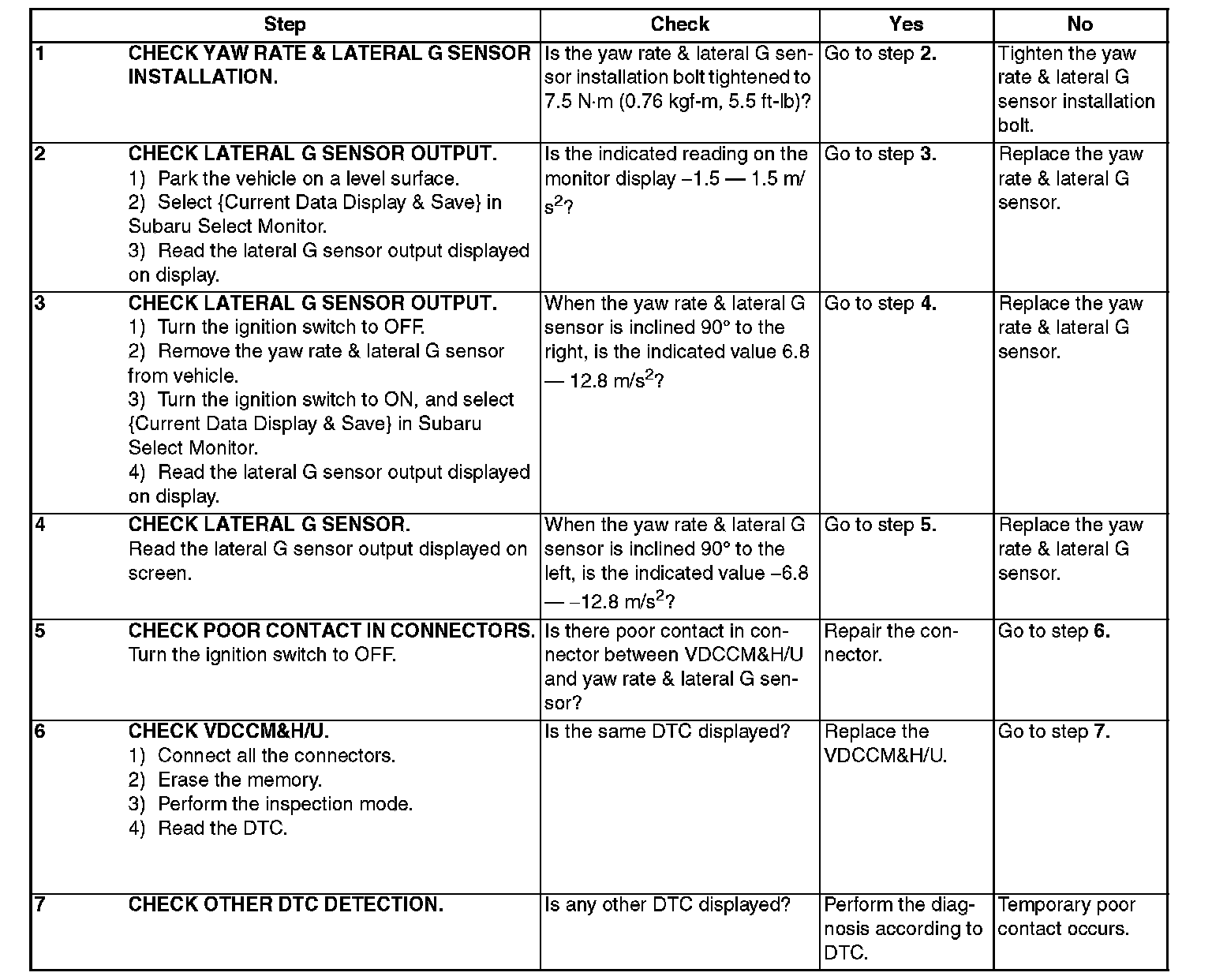

DTC C0073 EXCESSIVE LATERAL G SENSOR OUTPUT
DTC DETECTING CONDITION:
Defective lateral G sensor

TROUBLE SYMPTOM: VDC does not operate.

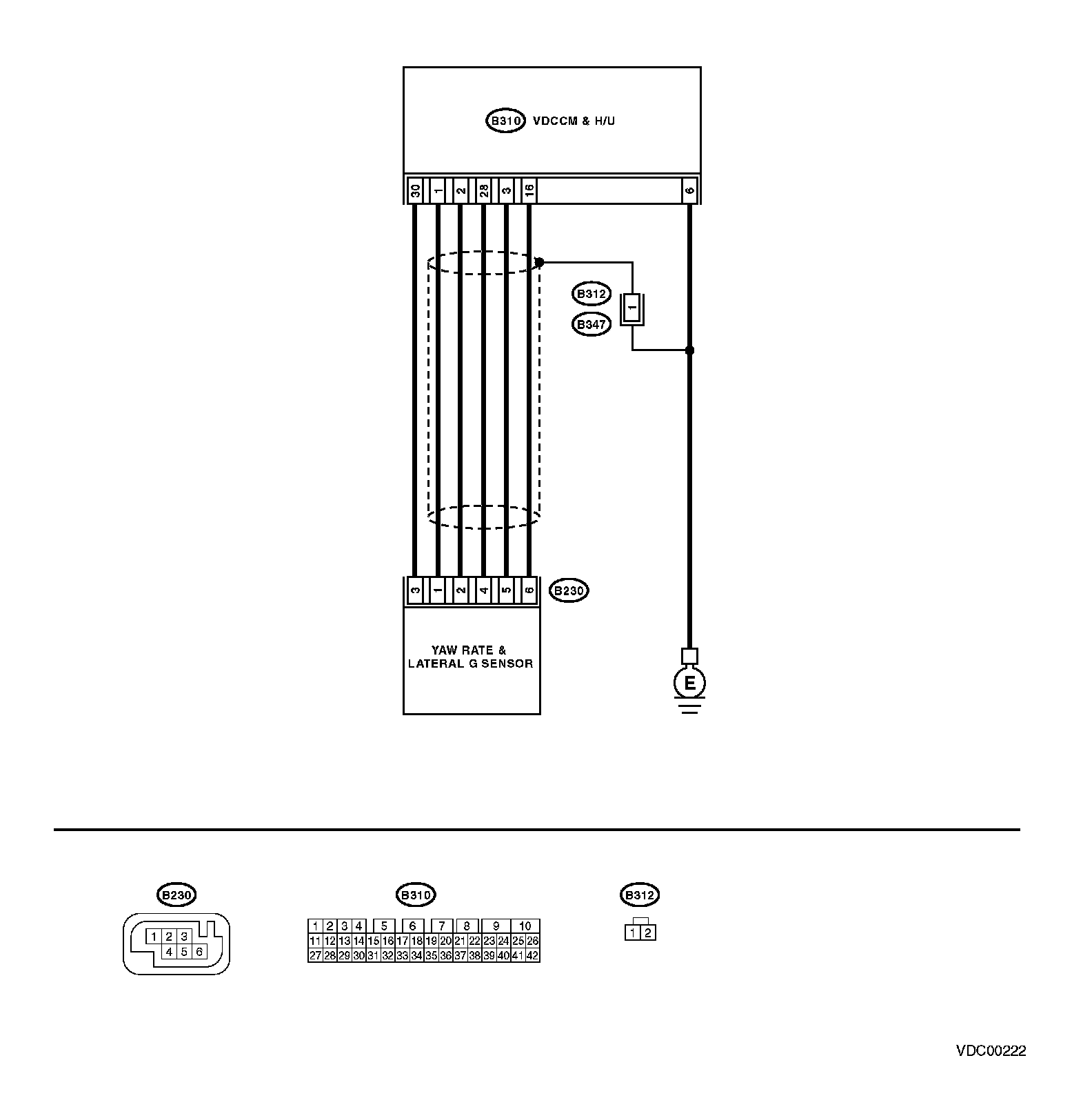

WIRING DIAGRAM
