Yaw Rate Sensor Power/Output

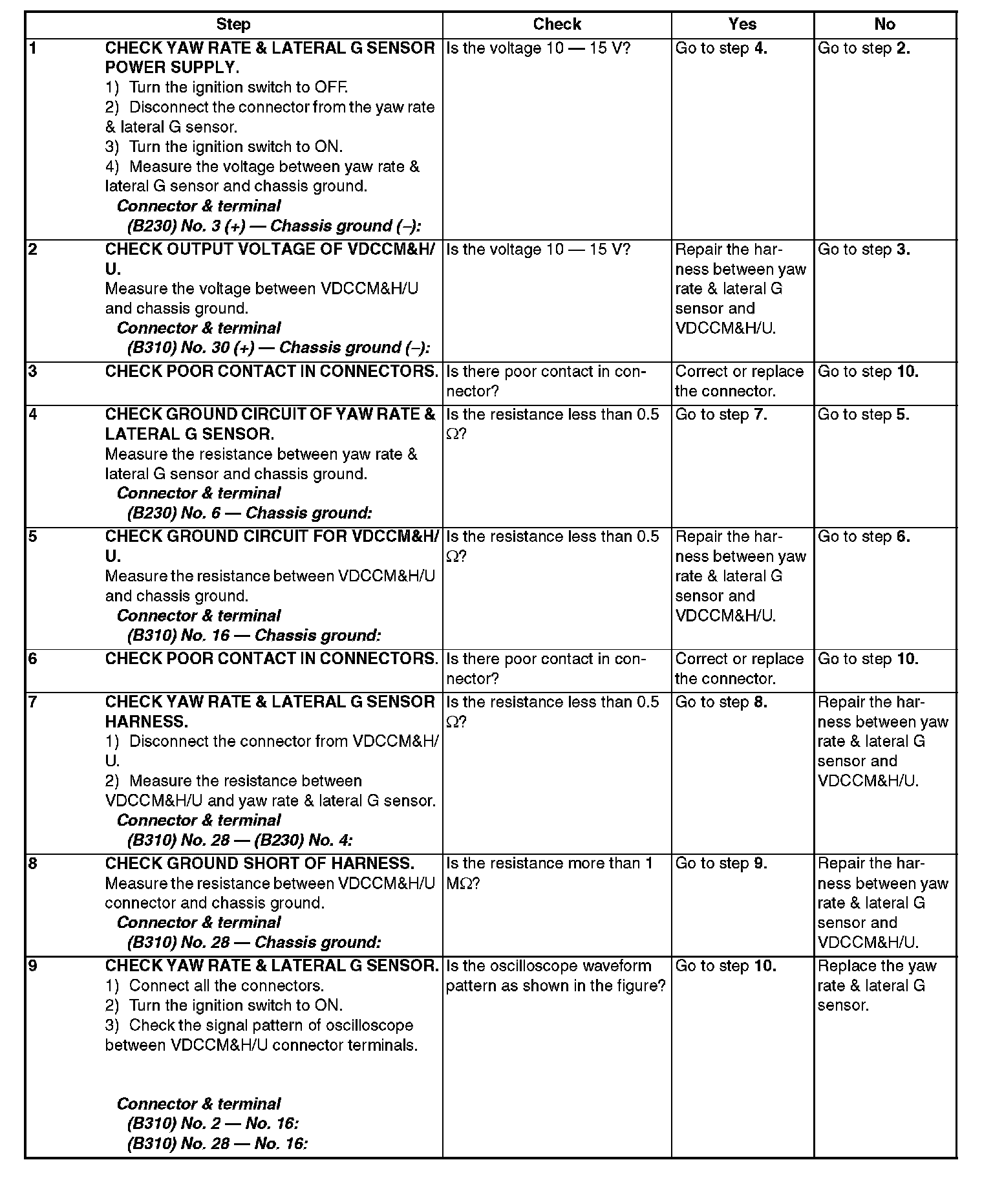

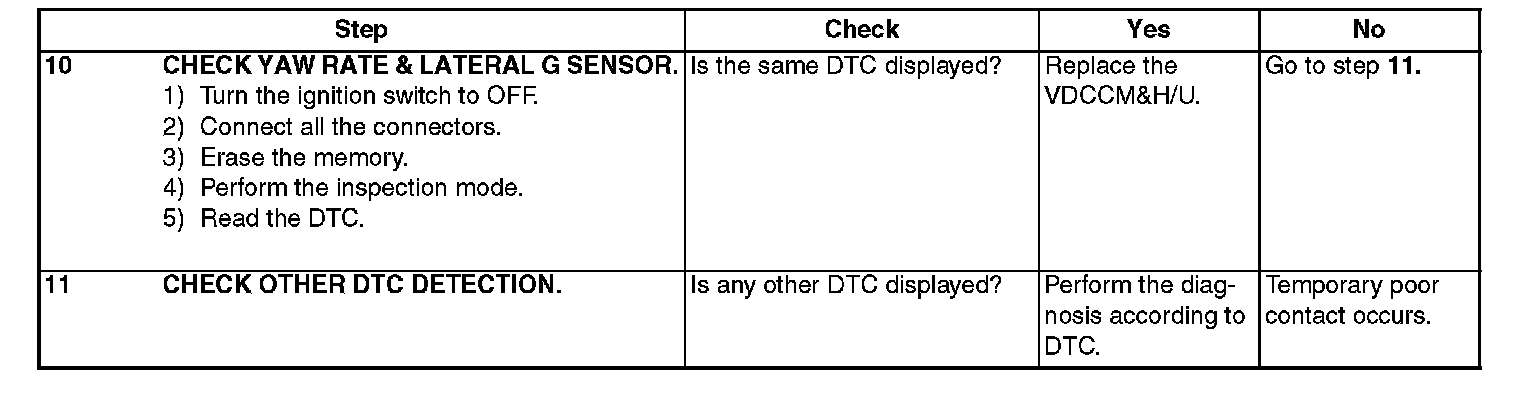

DTC C0072 YAW RATE SENSOR POWER/OUTPUT
DTC DETECTING CONDITION:
Defective yaw rate sensor

TROUBLE SYMPTOM: VDC does not operate.

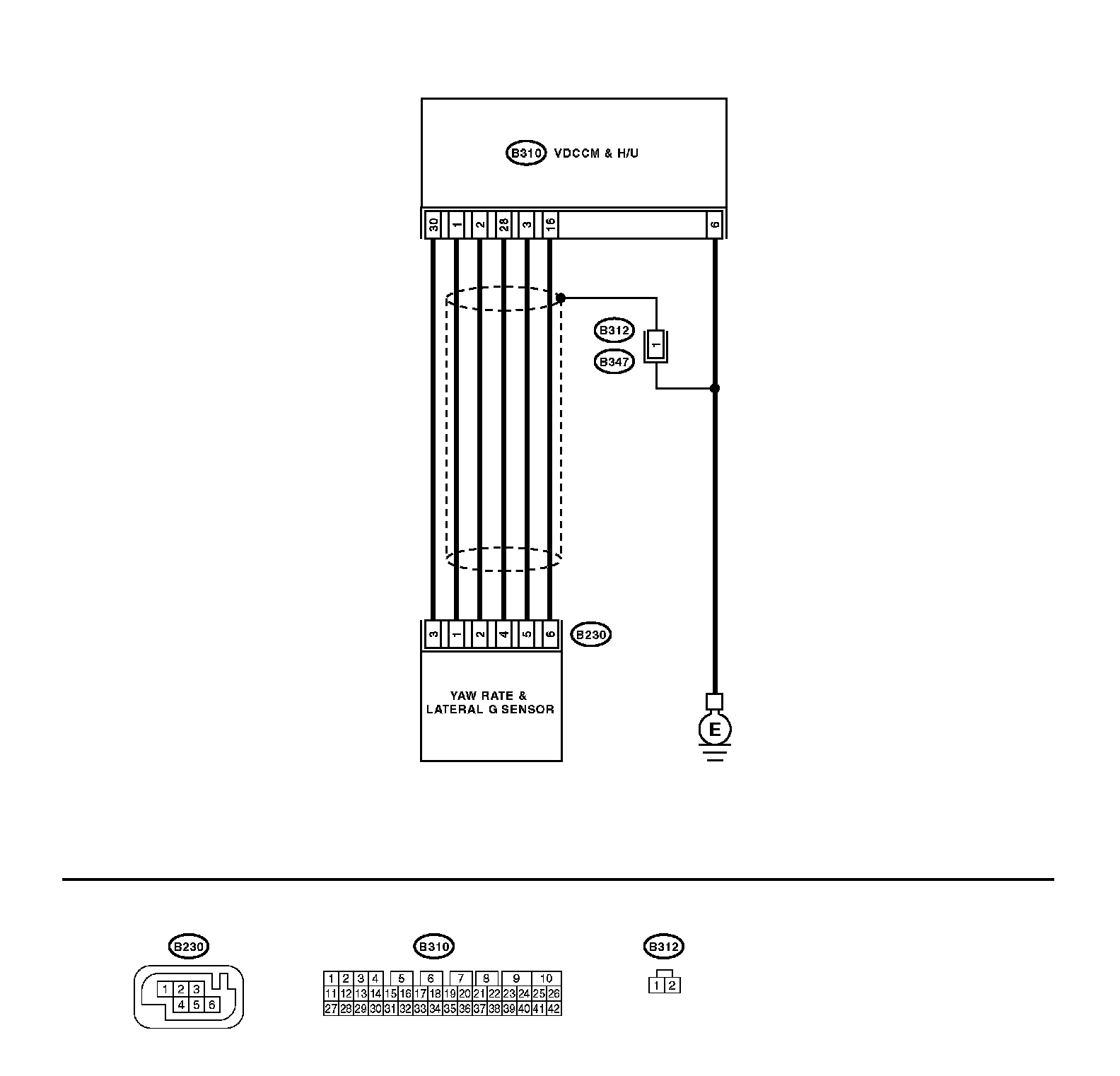

WIRING DIAGRAM
