Excessive Variation Amount of Steering Angle Sensor Output

DTC C0071 EXCESSIVE VARIATION AMOUNT OF STEERING ANGLE SENSOR OUTPUT
DTC DETECTING CONDITION:
Defective steering angle sensor

TROUBLE SYMPTOM:
VDC does not operate.

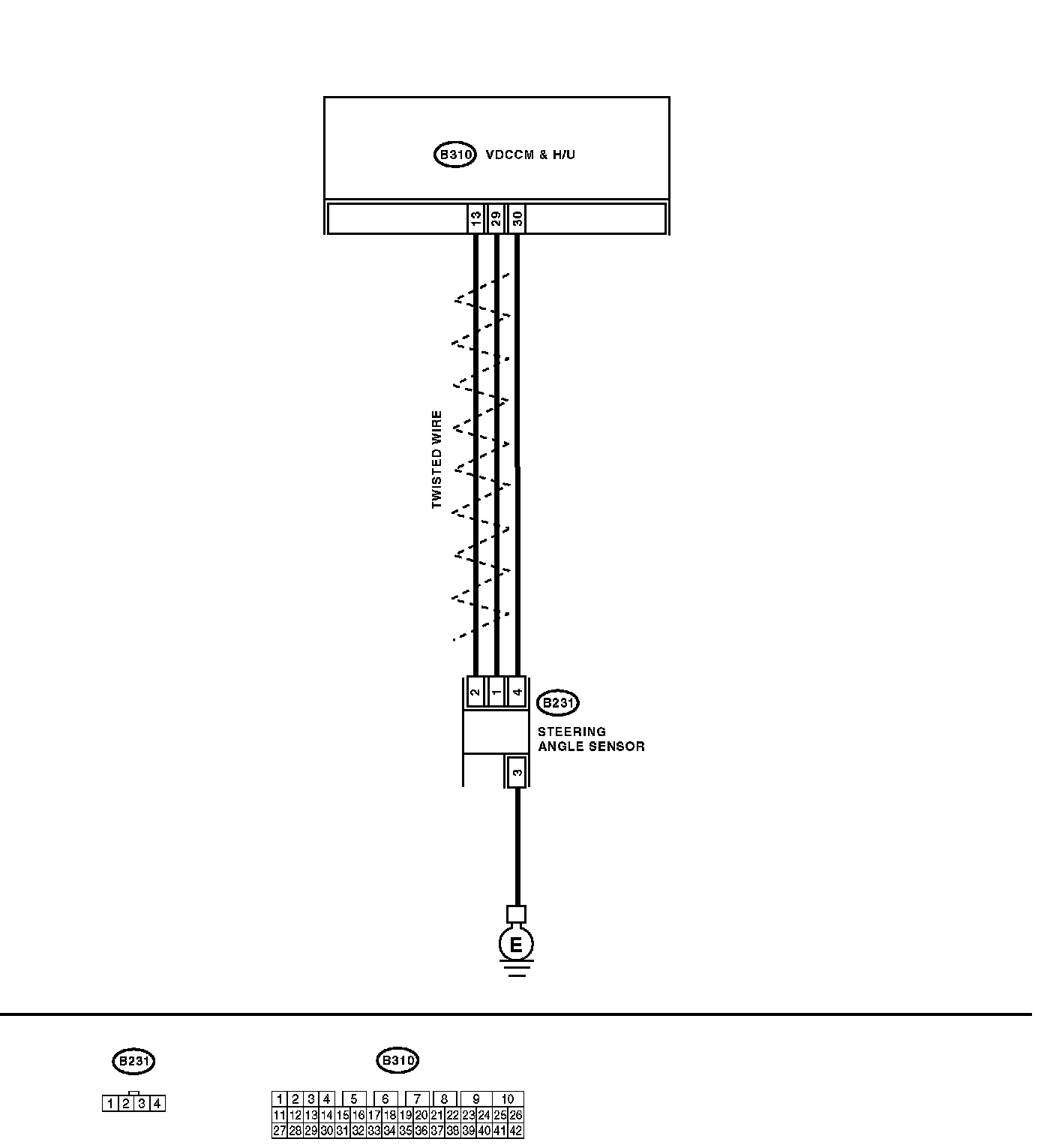

WIRING DIAGRAM
