Excessive Steering Angle Sensor Output Offset

DTC C0071 EXCESSIVE STEERING ANGLE SENSOR OUTPUT OFFSET
DTC DETECTING CONDITION:
Defective steering angle sensor

TROUBLE SYMPTOM:
VDC does not operate.

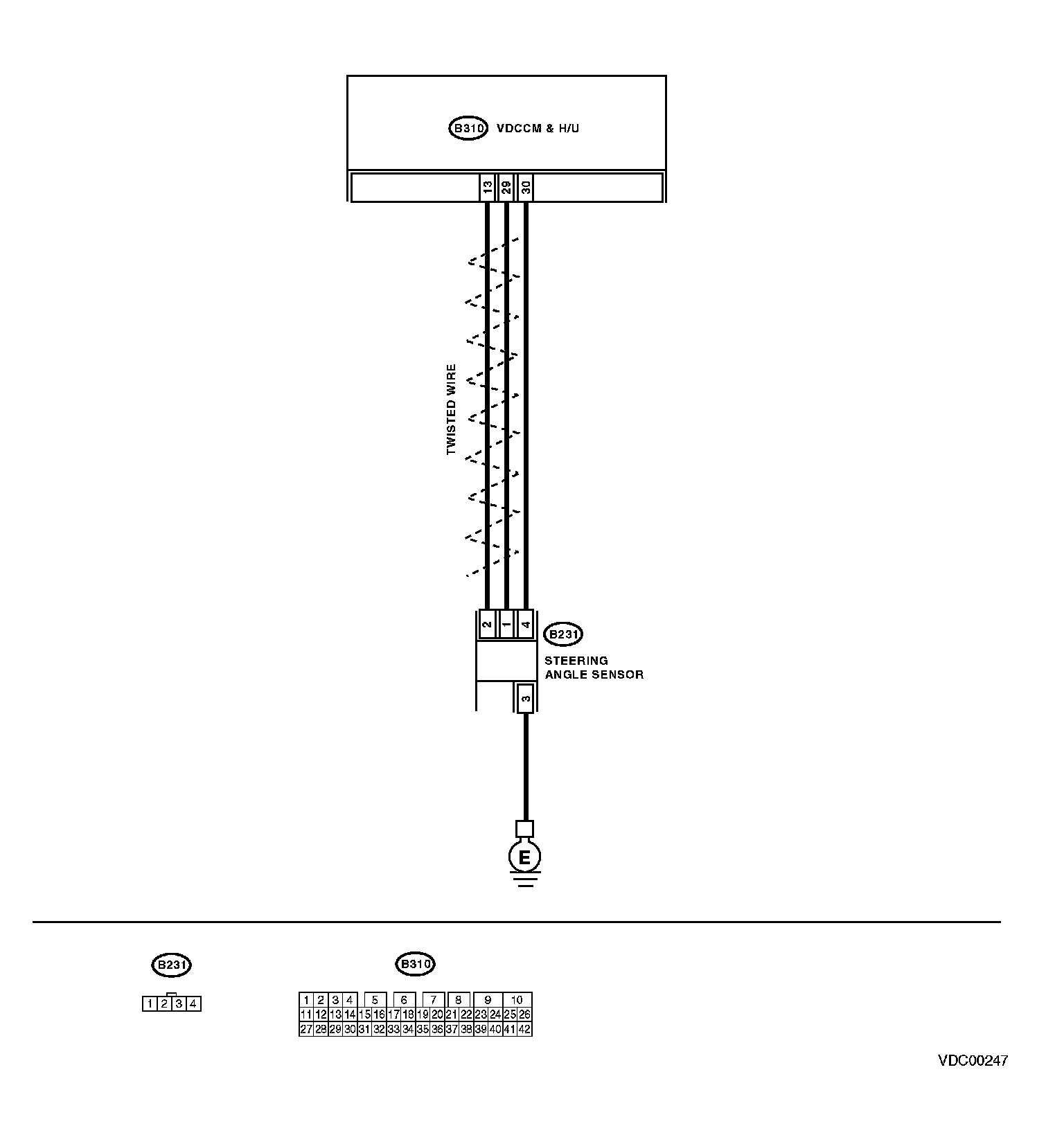

WIRING DIAGRAM
