Bus on Malfunction

DTC C0054 BUS ON MALFUNCTION
DTC DETECTING CONDITION:
Defective stop light switch

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

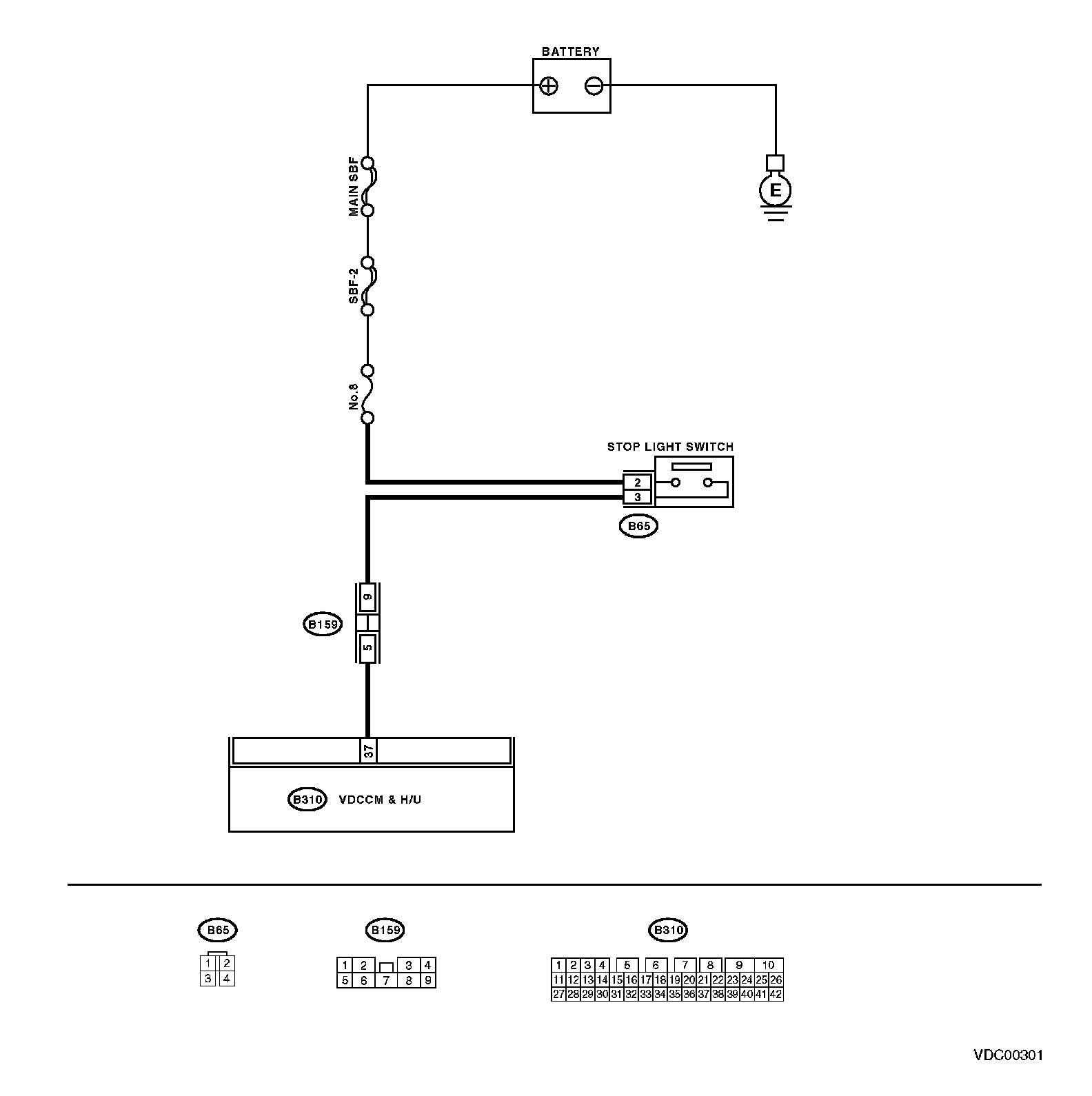

WIRING DIAGRAM
