Center Exhaust Pipe

Center Exhaust Pipe
REMOVAL
1. Set the vehicle on a lift.
2. Disconnect the ground cable from battery.
3. Remove the intercooler.





4. Remove the intercooler bracket.
5. Lift-up the vehicle.
6. Remove the under cover.

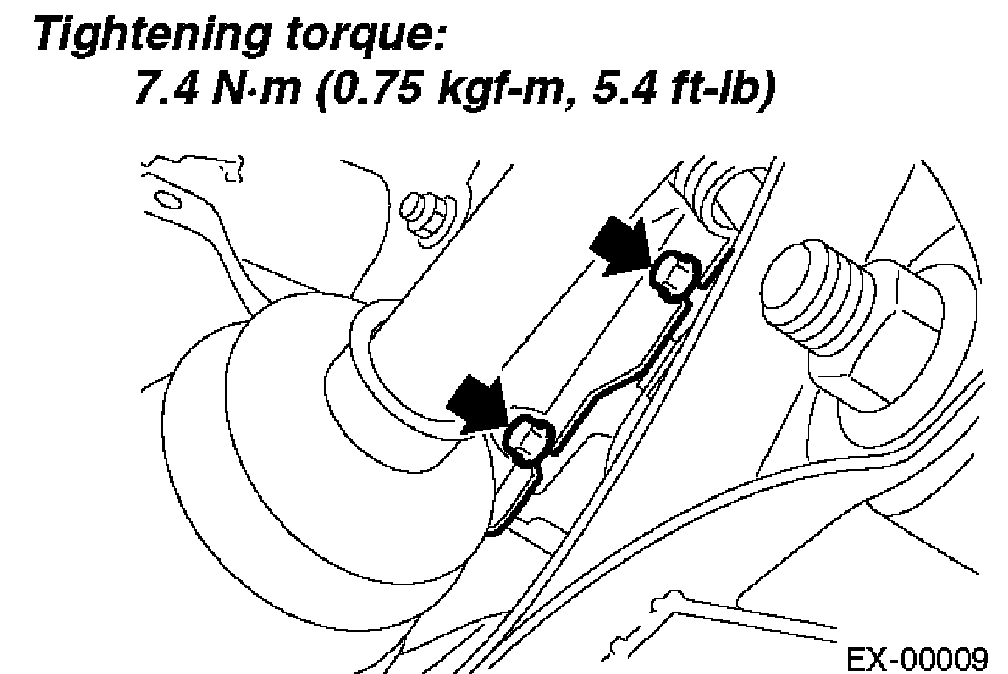

7. Remove the bolts which install the lower side of turbocharger upper cover.

CAUTION: Be careful, the turbocharger and exhaust pipe are hot.

8. Lower the vehicle.





9. Remove the turbocharger upper cover.





10. Remove the bolts which install the lower upper side of turbocharger upper cover, and remove it.





11. Separate the center exhaust pipe from turbocharger.
12. Lift-up the vehicle.

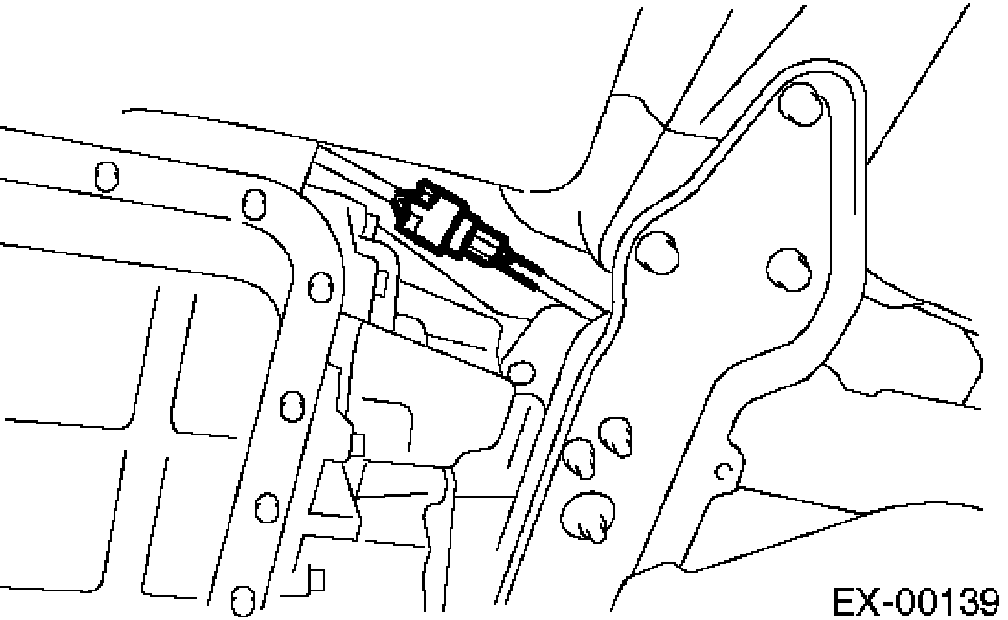

13. Disconnect the connector from rear oxygen sensor.





14. Vertically draw out the clip from crossmember.





15. Separate the center exhaust pipe from rear exhaust pipe.

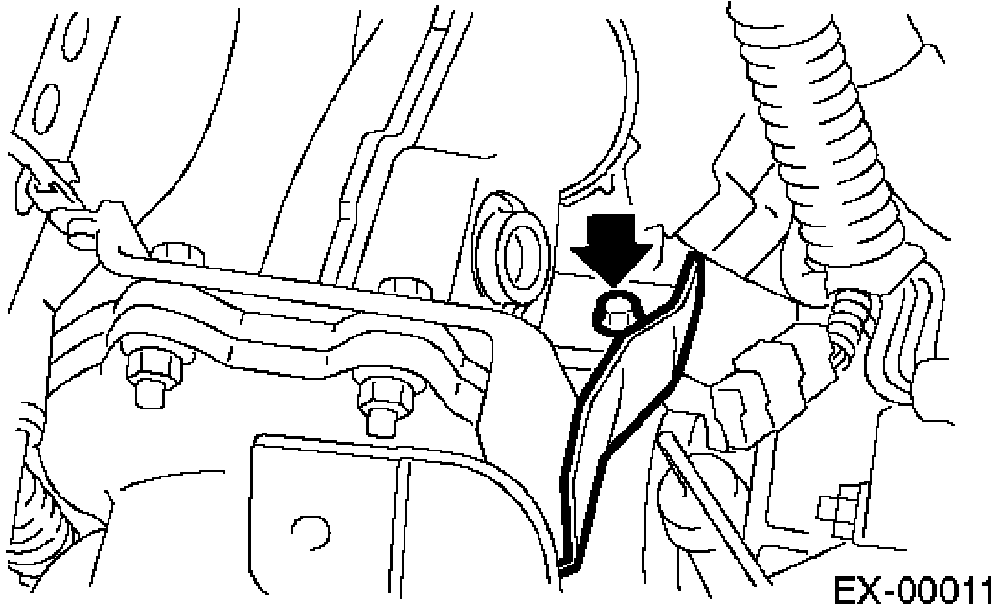

16. Remove the bolt which holds the center exhaust pipe bracket to transmission.
17. Remove the intercooler bracket.





18. Remove the bolt which holds the center exhaust pipe to hanger bracket.

CAUTION: Be careful not to pull down the center exhaust pipe.





19. Remove the center exhaust pipe.

INSTALLATION

NOTE: Replace the gaskets with new ones.

1. Install the center exhaust pipe and temporarily tighten the bolt which holds the center exhaust pipe to hanger bracket.
2. Temporarily tighten the bolt which holds the center pipe to transmission.





3. Connect the center exhaust pipe to turbocharger.





4. Install the center exhaust pipe to rear exhaust pipe.





5. Connect the connector to rear oxygen sensor.





6. Secure the clip on crossmember.





7. Tighten the bolt which holds the center exhaust pipe bracket to transmission.





8. Tighten the bolt which holds the center exhaust pipe to hanger bracket.
9. Lower the vehicle.





10. Place the turbocharger lower cover, and tighten the bolts which install the upper side of lower cover.





11. Place the turbocharger upper cover, and tighten the bolts which install the upper side of upper cover.
12. Lift-up the vehicle.





13. Tighten the bolts which install the under side of turbocharger upper cover.
14. Install the under cover.
15. Lower the vehicle.





16. Install the intercooler bracket.
17. Install the intercooler.
