Basic Diagnostic Procedure

Basic Diagnostic Procedure

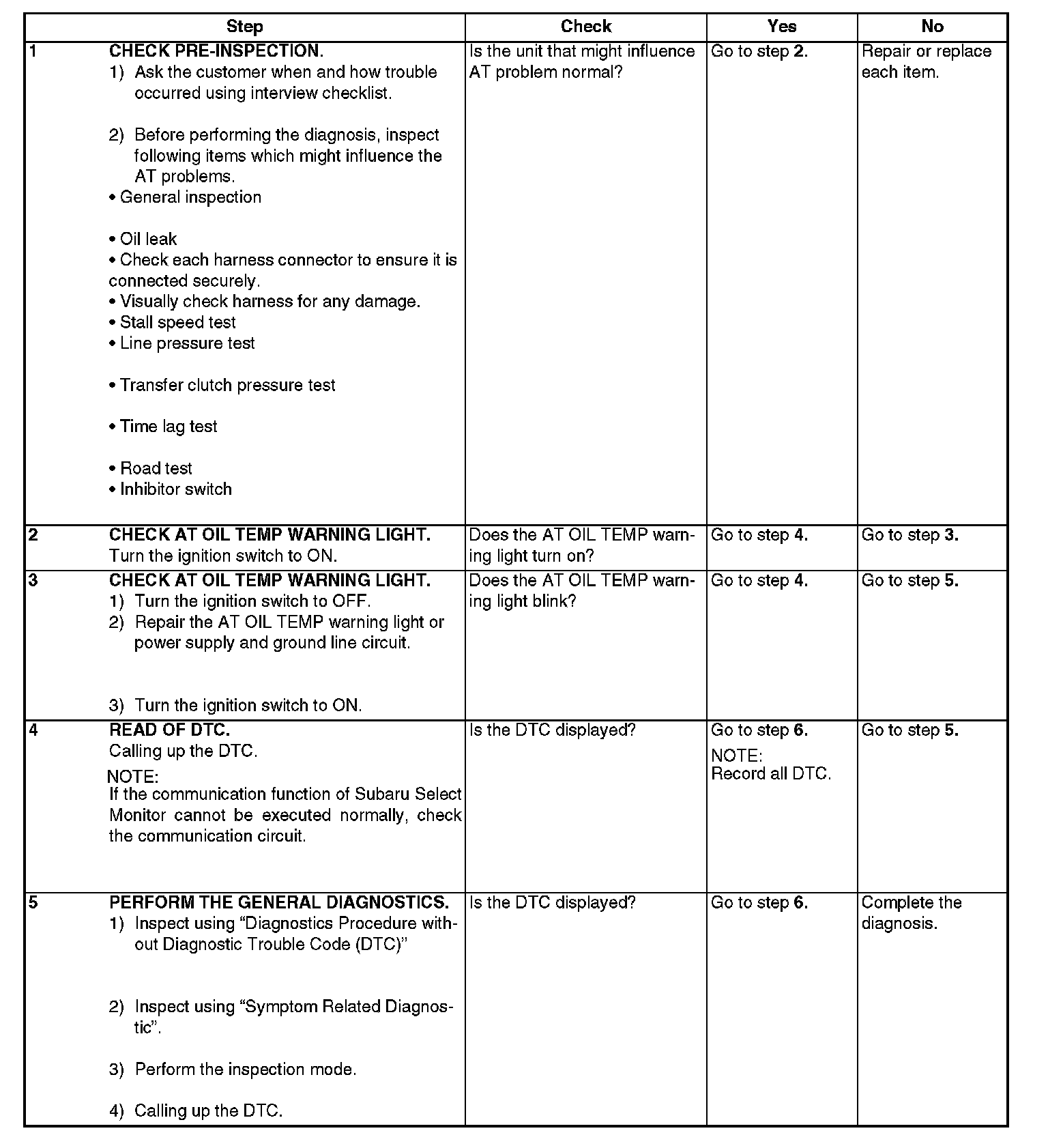

Steps 1 - 5:




Step 6:





PROCEDURE

NOTE: This is specified for H4DOTC engine model.
