Front Washer Nozzle
Front Washer NozzleADJUSTMENT
1. Turn wiper switch to OFF position.

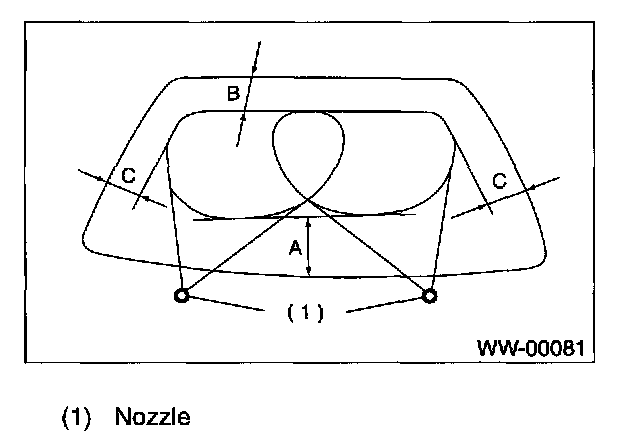

2. When vehicle stops, adjust washer injection position as shown in the figure.
Injection position:
A: 300 mm (11.81 in)
B: 100 mm (3.94 in)
C: 200 mm (7.87 in)
ADJUSTMENT
1. Turn wiper switch to OFF position.
2. When vehicle stops, adjust washer injection position as shown in the figure.
Injection position:
A: 300 mm (11.81 in)
B: 100 mm (3.94 in)
C: 200 mm (7.87 in)
