Read Current Data

Subaru Select Monitor
OPERATION

READ CURRENT DATA
1. On the "Main Menu" display screen, select the {Each System Check} and press the [YES] key.
2. On the "System Selection Menu" display screen, select the {Transmission Control System} and press the [YES] key.
3. Press the [YES] key after the information of transmission type is displayed.
4. On the "Transmission Diagnosis" display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the "Transmission Diagnosis" display screen, select the {Data Display} and press the [YES] key.
6. Using the scroll key, move the display screen up or down until desired data is shown.

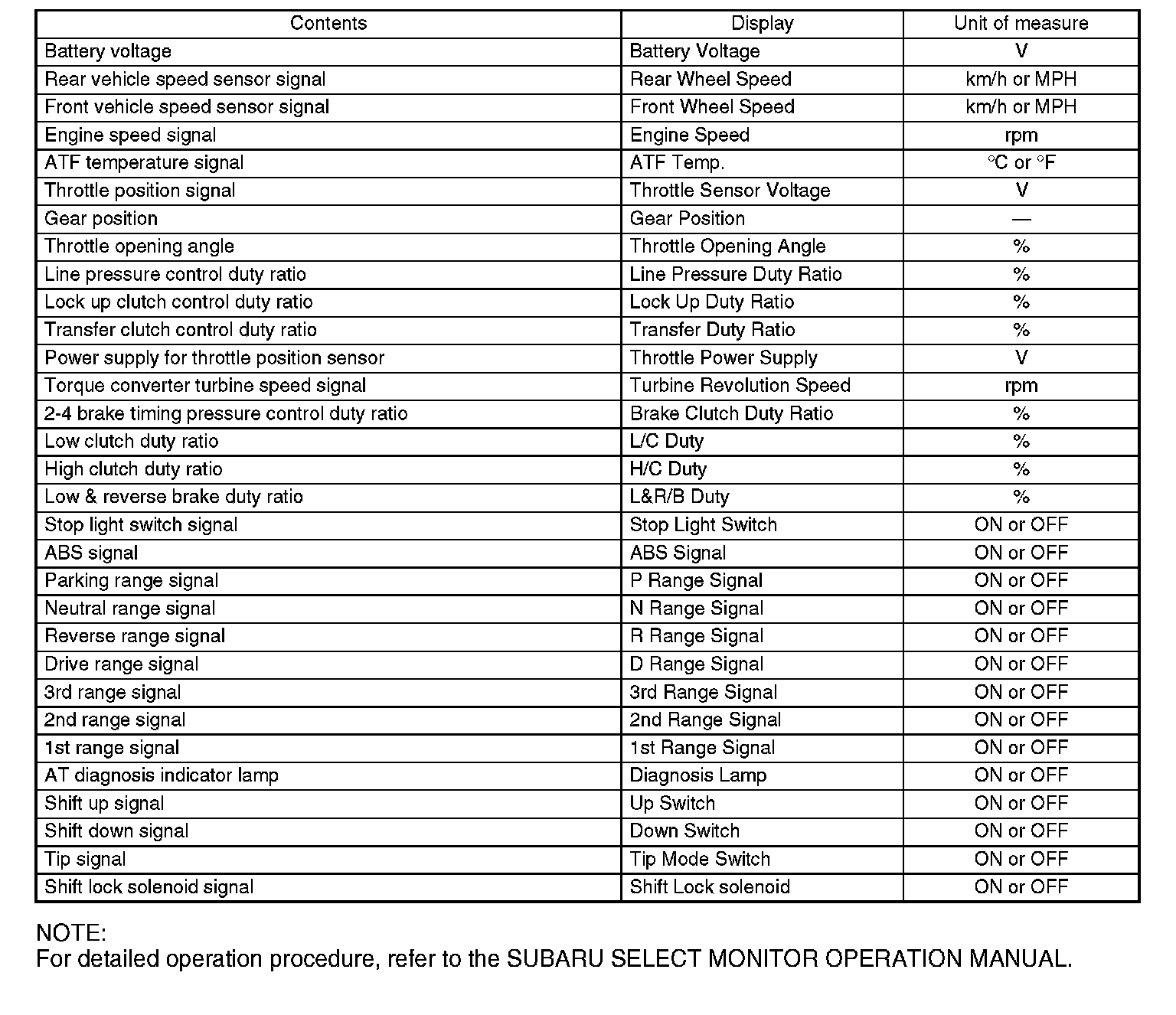

^ A list of the support data is shown in the following table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
