Check Sport Shift Switch

CHECK SPORT SHIFT SWITCH

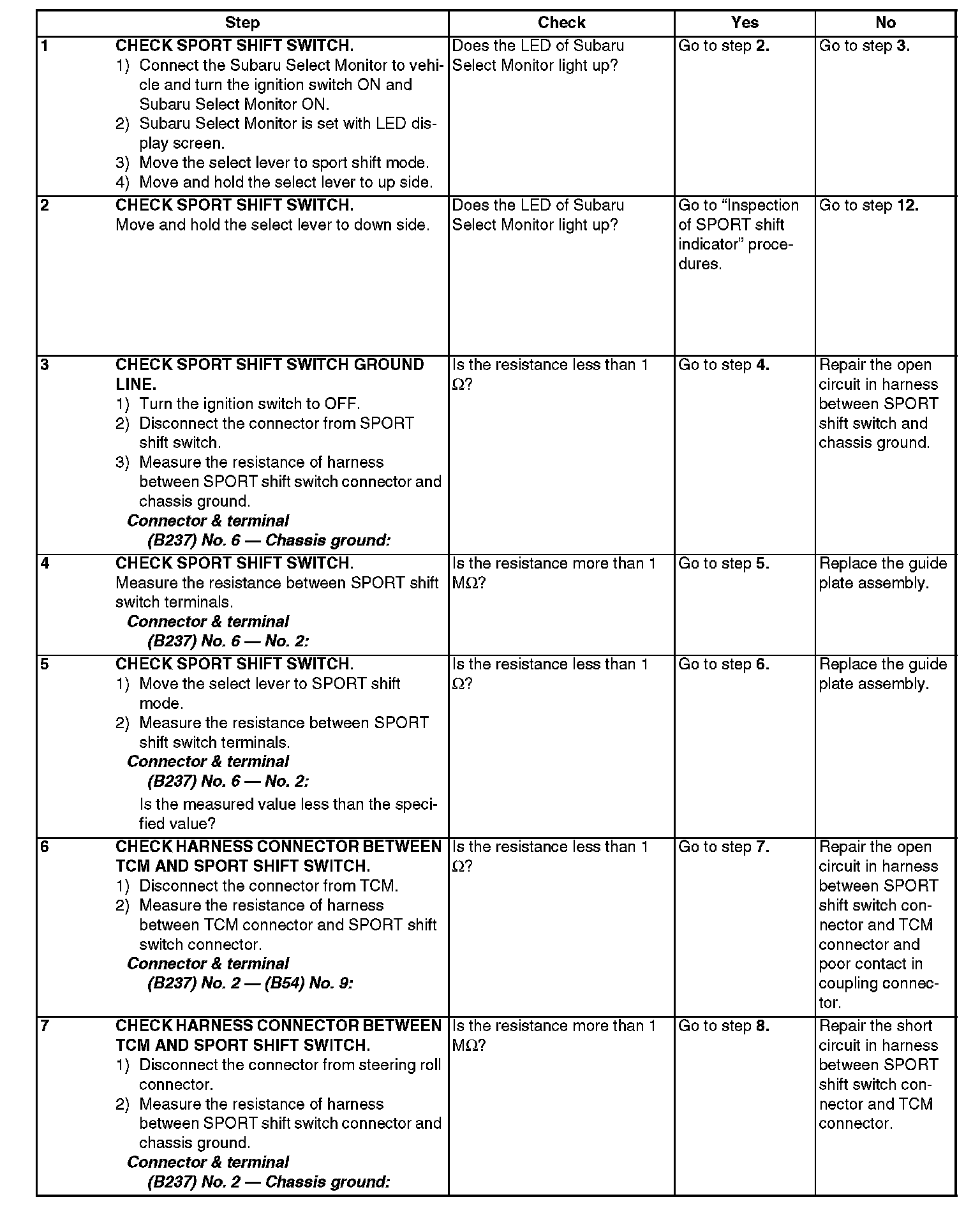

Steps 1-7:

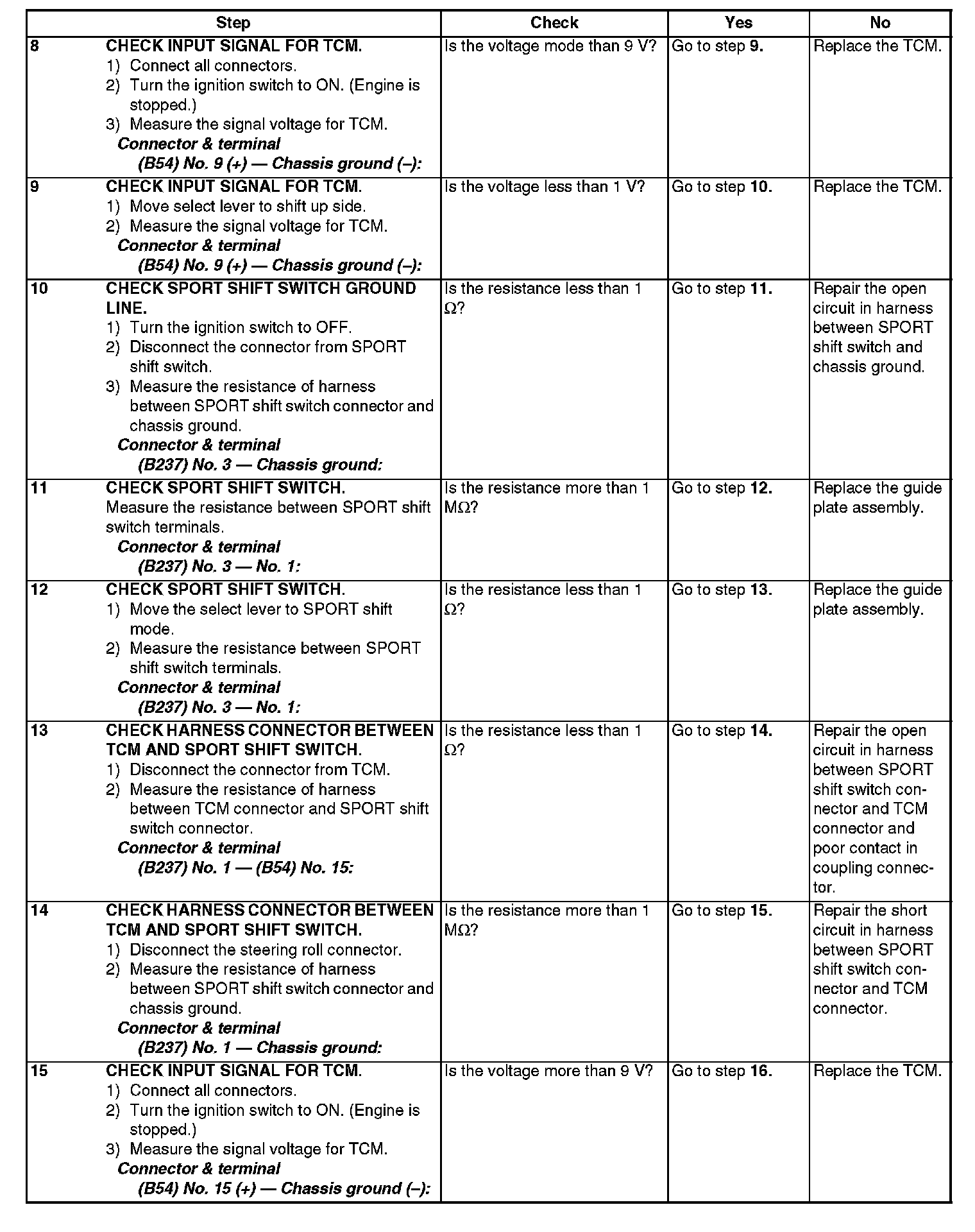

Steps 8-15:

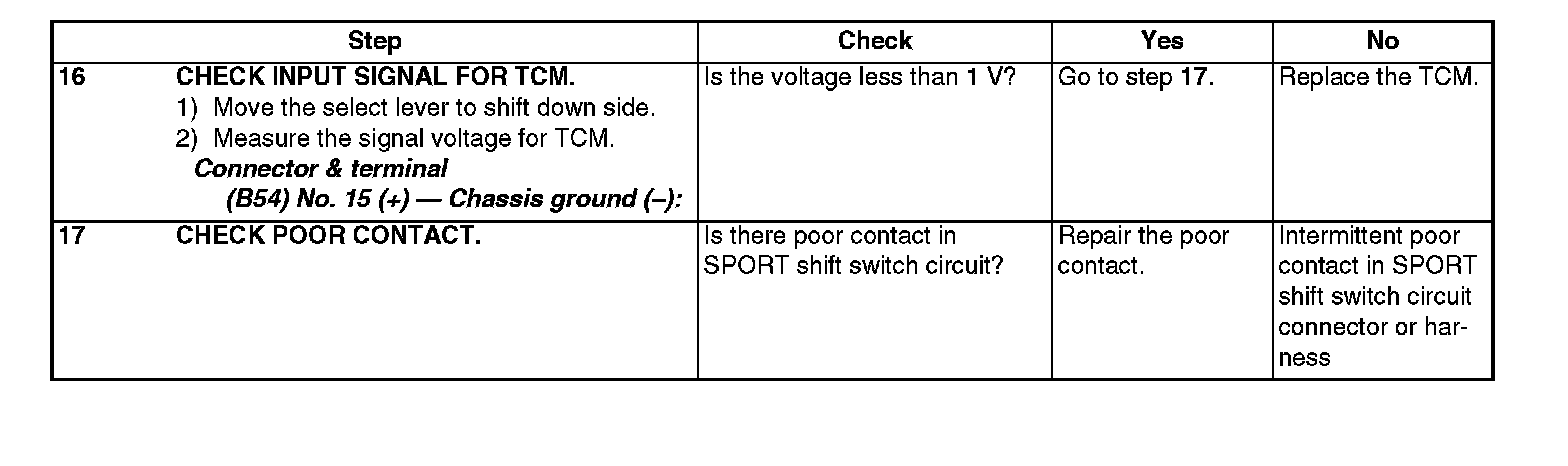

Steps 16 & 17:

DIAGNOSIS:
SPORT shift switch input signal circuit is open or shorted.

TROUBLE SYMPTOM:
Does not shift gears in SPORT shift mode.

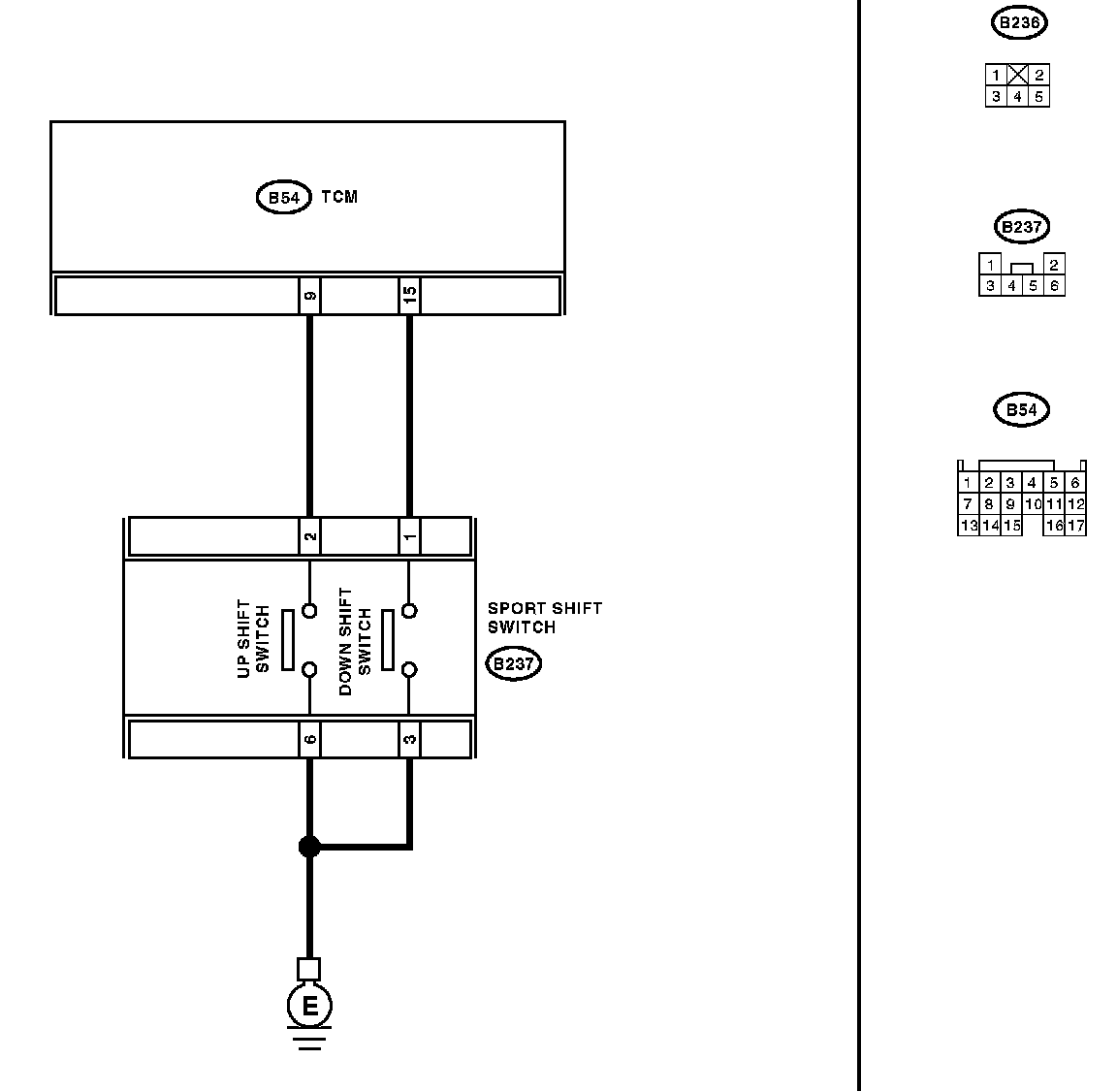

WIRING DIAGRAM
