Component Tests and General Diagnostics

INSPECTION
BACK-UP LIGHT SWITCH
Inspect the back-up light switch.

NEUTRAL POSITION SWITCH
1. Turn the ignition switch to OFF.
2. Disconnect the connector of neutral position switch.

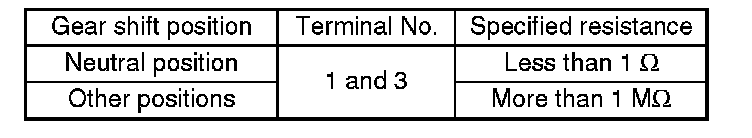

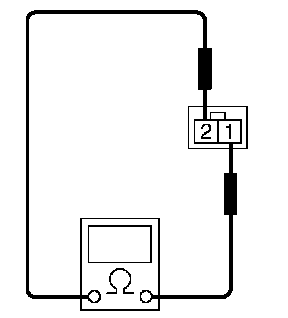

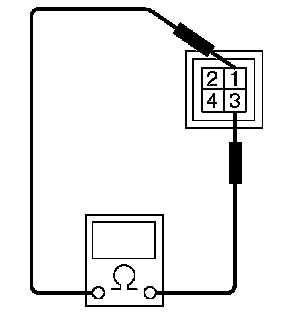

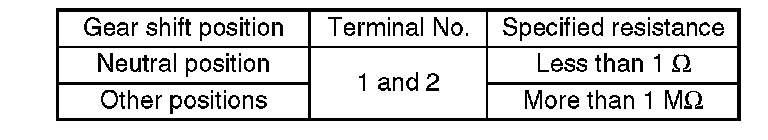

3. Measure the resistance between neutral position switch terminals.








Non-TURBO model








Turbo model

4. Replace defective parts.
