Main Shaft
Main Shaft
MAIN SHAFT

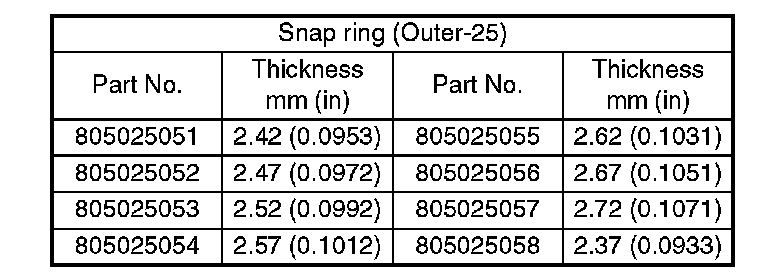

Snap ring (Outer-25) to synchronizer hub clearance
0.060 - 0.100 mm (0.0024 - 0.0039 inch)
