Select Lever Cannot Be Shift Locked

SELECT LEVER CANNOT BE SHIFT LOCKED

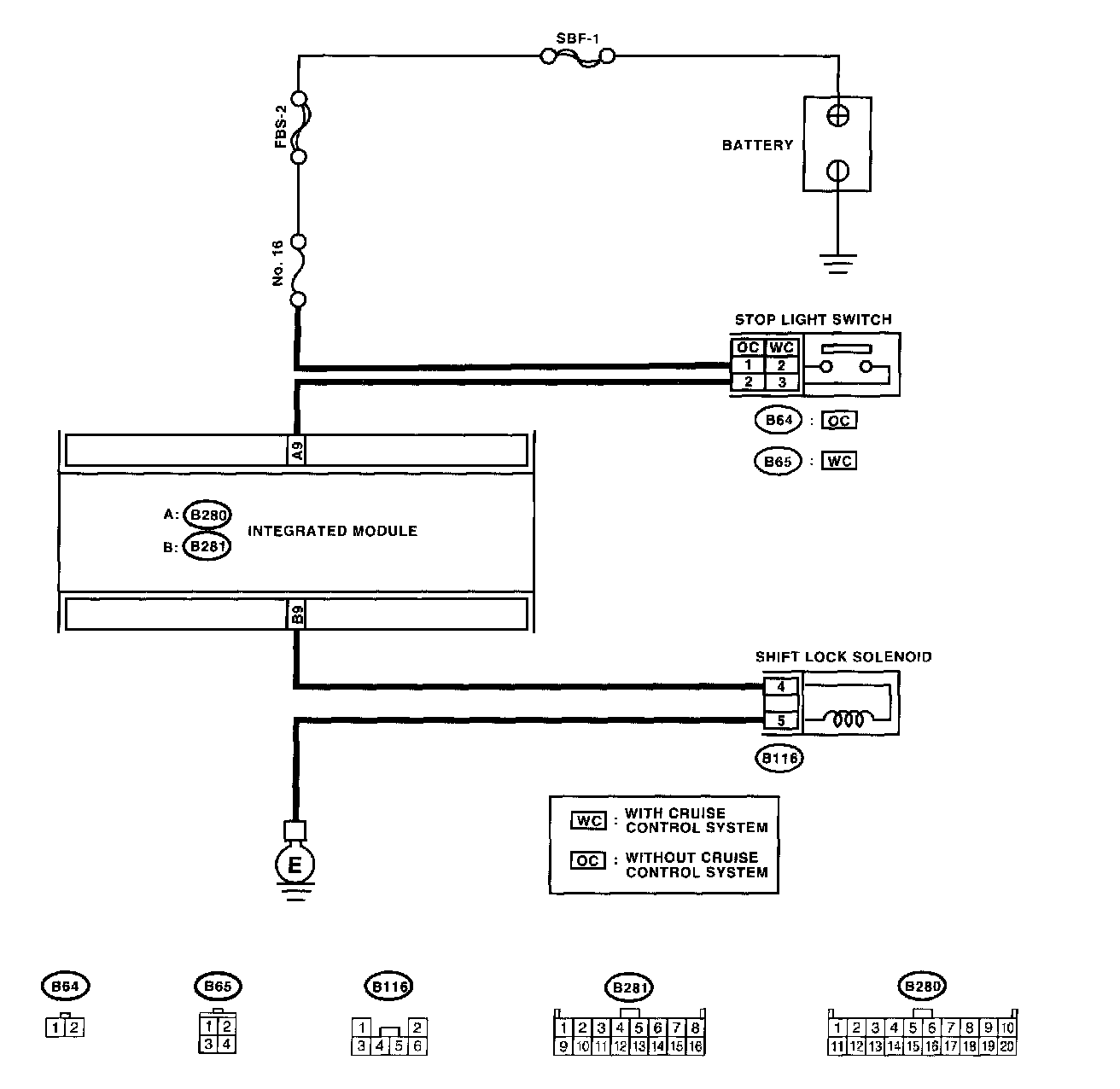

WIRING DIAGRAM:

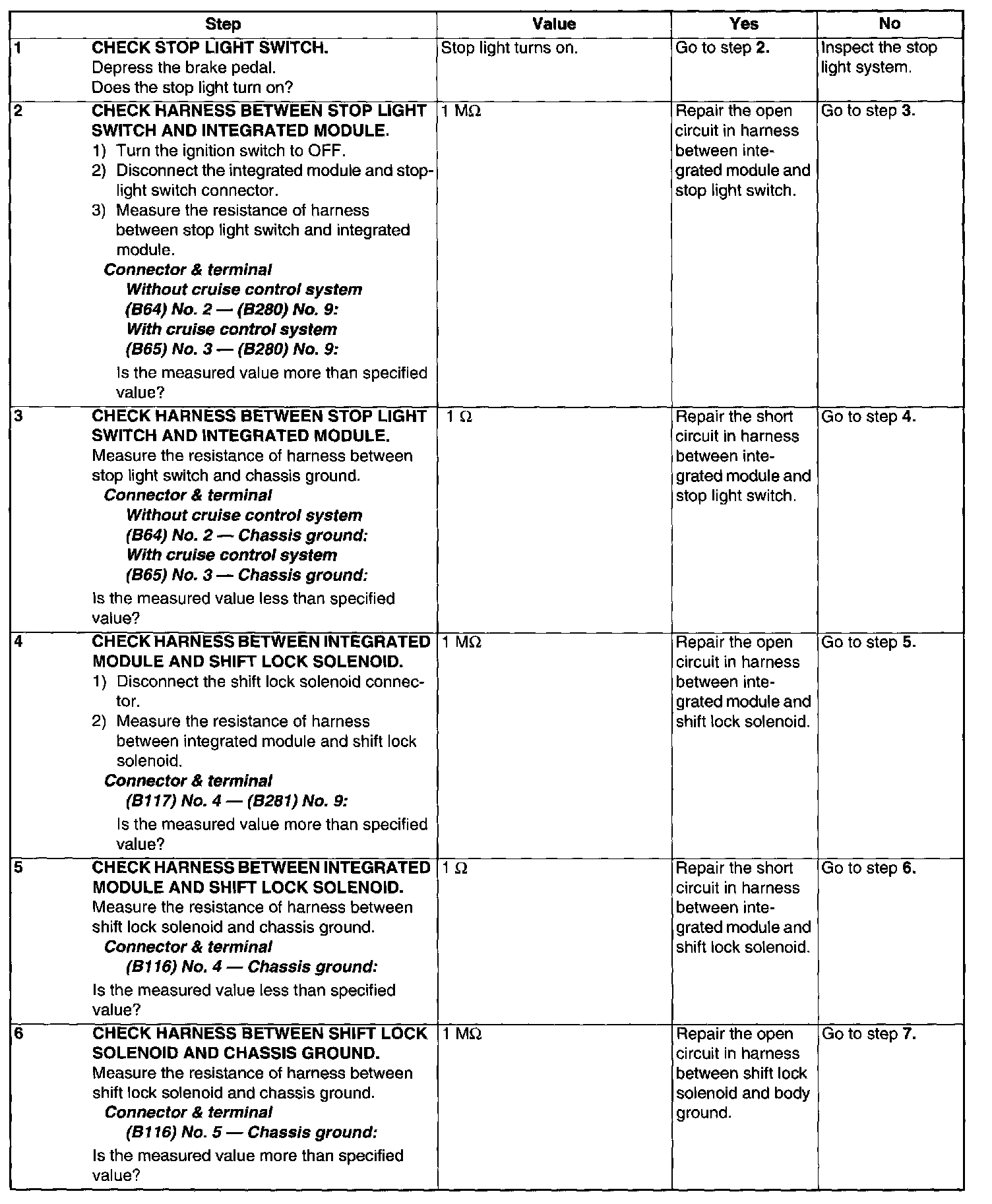

Test 1 Of 2:

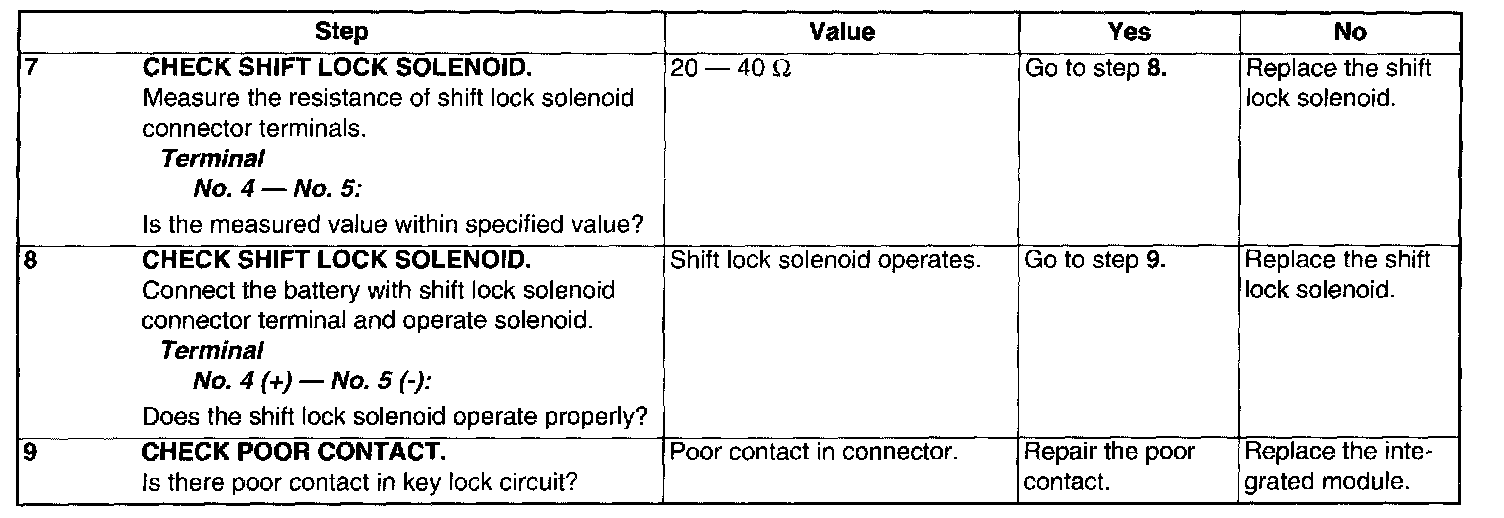

Test 2 Of 2:
