Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> A/T Shift Lock Solenoid and "P" Position Switch

A/T Shift Lock Solenoid and "P" Position Switch

AT Shift Lock Solenoid and "P" Position Switch

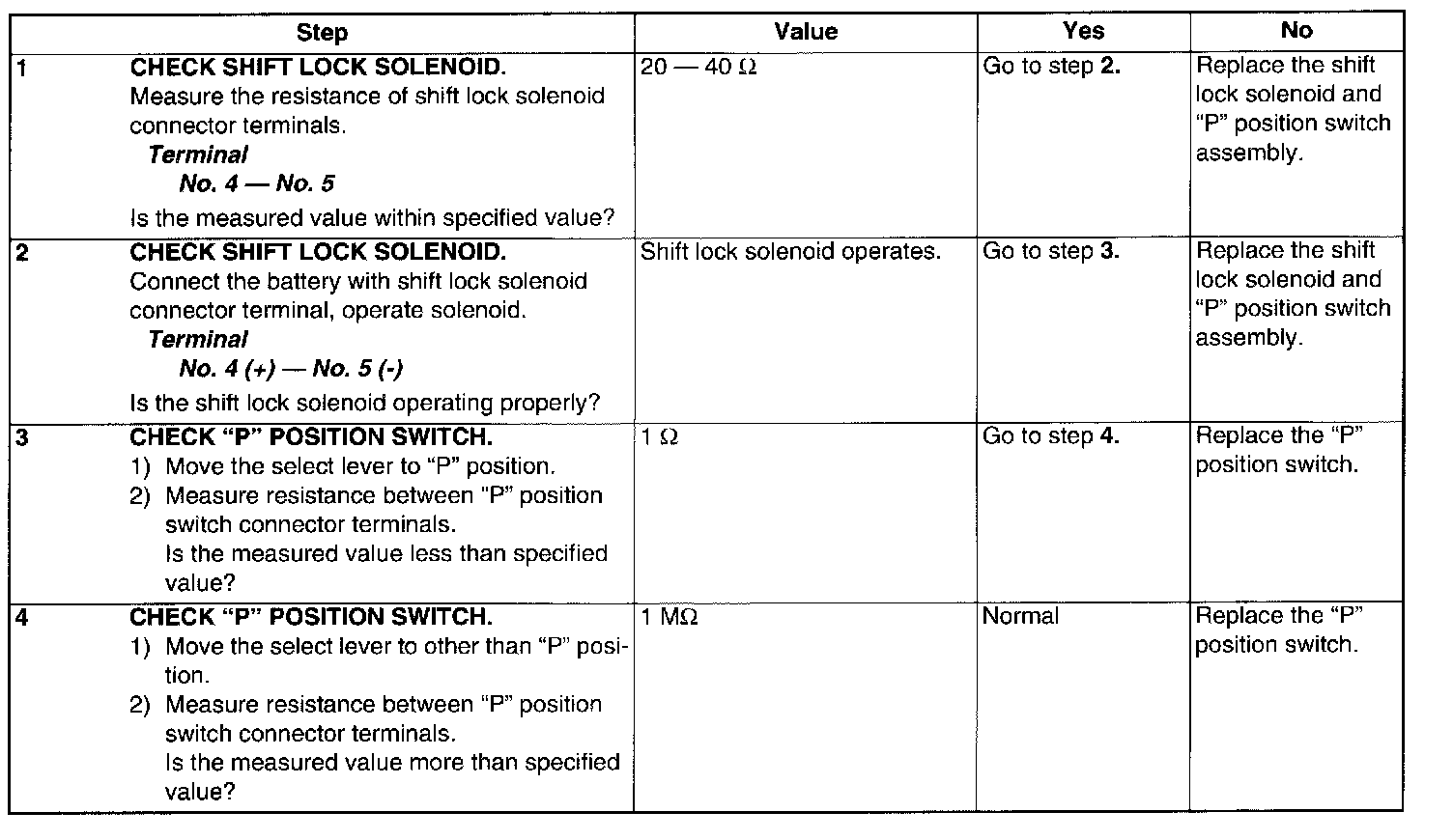

INSPECTION
