Shift Cable: Service and Repair
Select CableREMOVAL
1. Set the vehicle on a lift.
2. Disconnect the ground cable from battery.
3. Prior to removal, set the lever to "N" position.
4. Lift-up the vehicle.
5. Remove the front and center exhaust pipe.
6. Remove the heat shield cover. (If equipped)

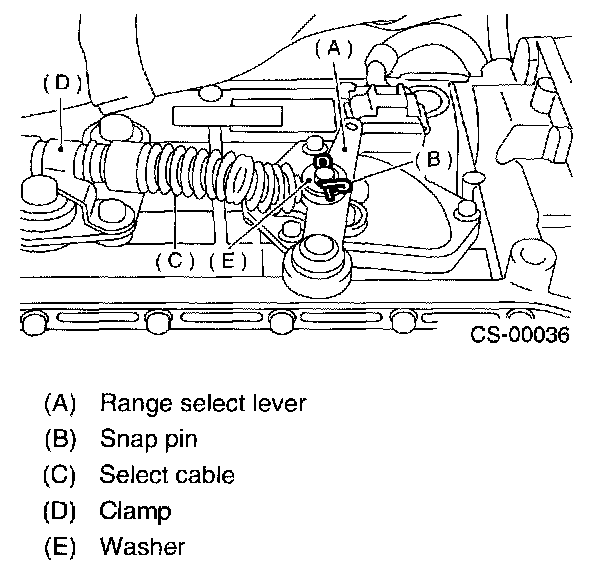

7. Remove the snap pin from range select lever.

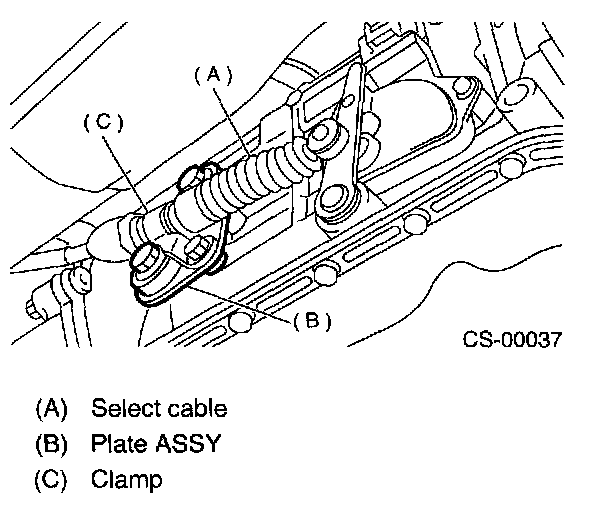

8. Remove the plate assembly from transmission
9. Disconnect the cable from select lever, and then remove the cable bracket.
10. Remove the select cable from plate assembly.
INSTALLATION
1. Install the select cable to base plate.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
2. Install the select cable to range select lever.

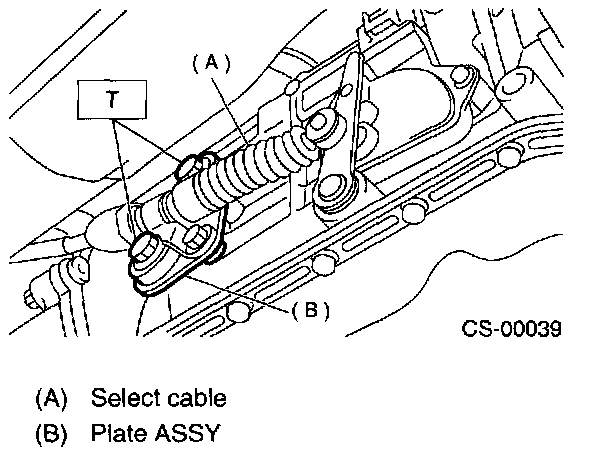

3. Install the plate assembly to transmission.
Tightening torque: T: 24.5 Nm (2.5 kgf-cm. 18.1 ft. lbs.)

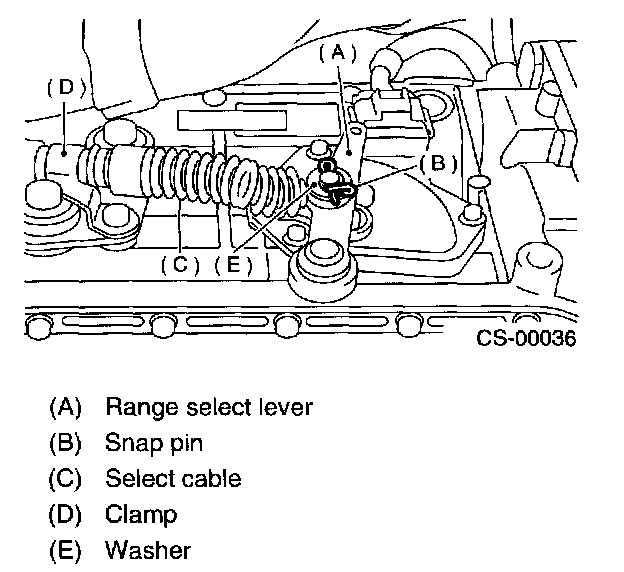

4. Install the washer and snap pin to range select lever.
5. Move the select lever to "N" position, then adjust the select cable position.
6. Install the heat shield cover. (If equipped)
7. Install the front and center exhaust pipe.
