Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Tools and Equipment >> Rear

Rear

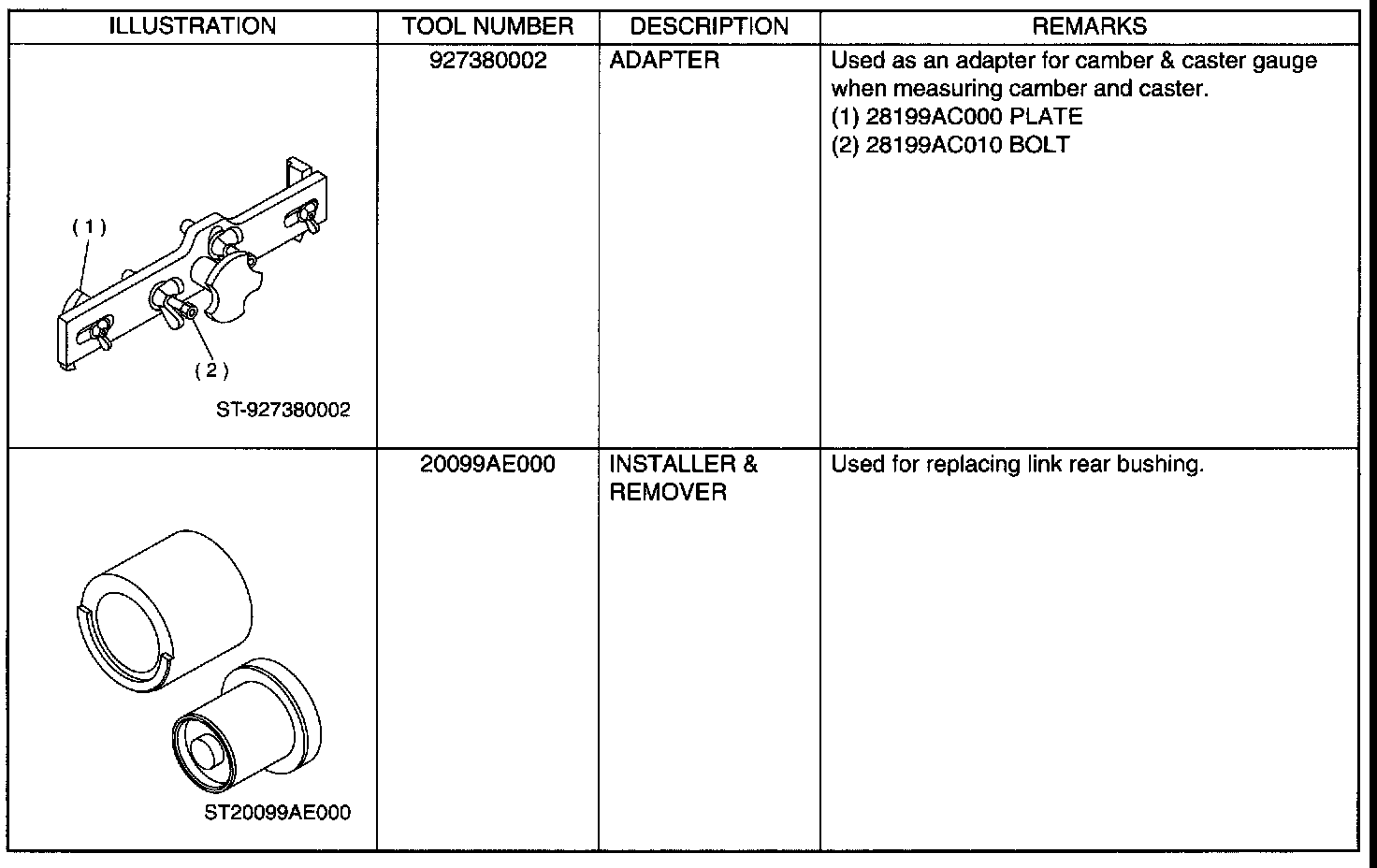

Rear Suspension / Special Tools:

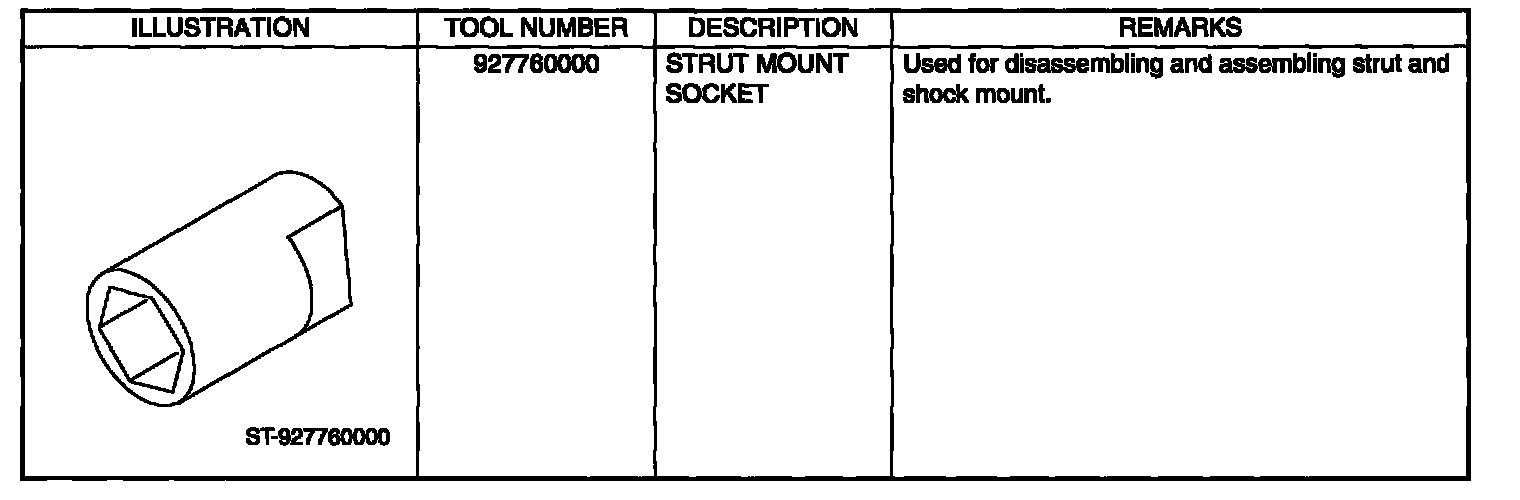

Rear Suspension / Special Tools:

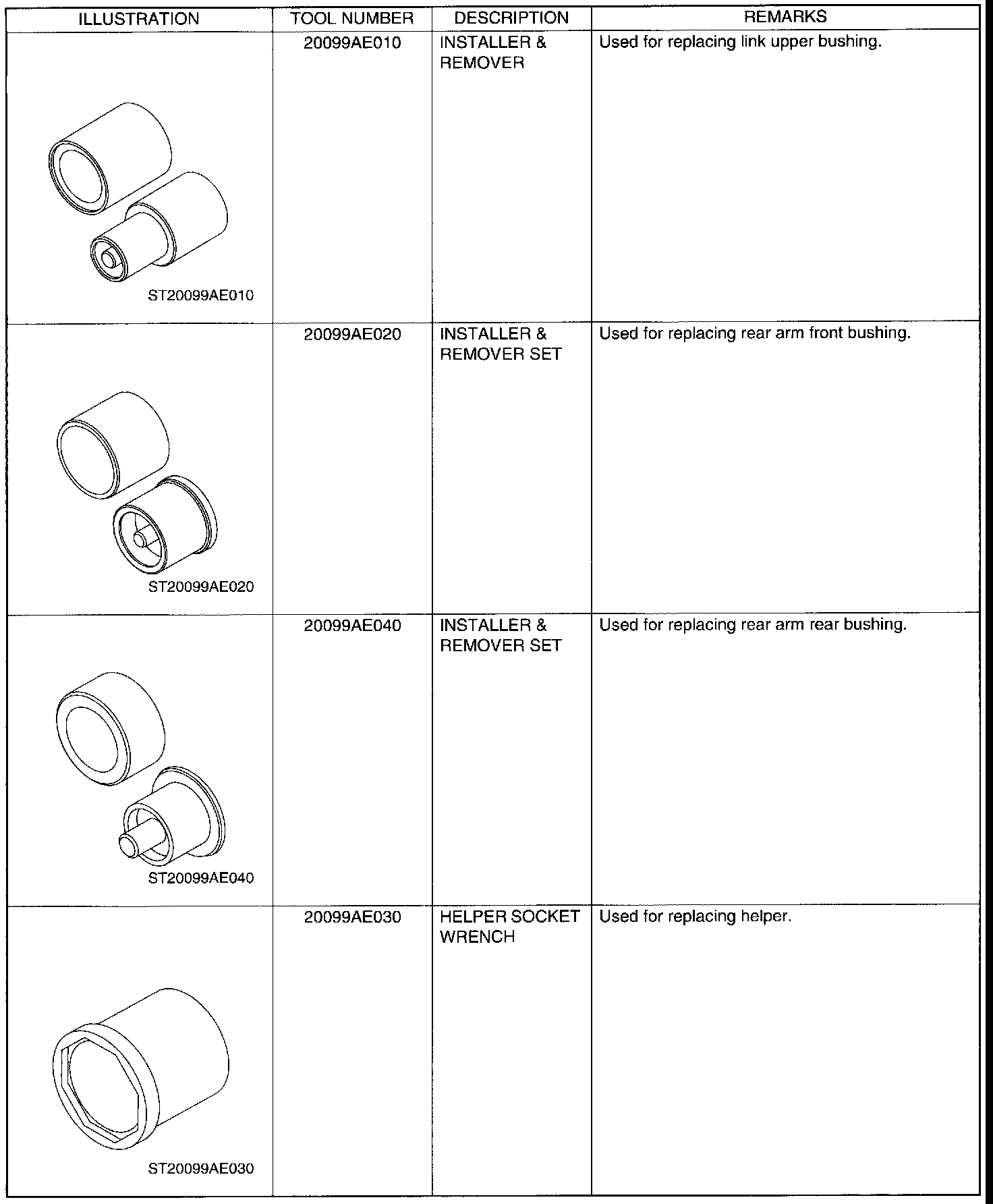

Rear Suspension / Special Tools:

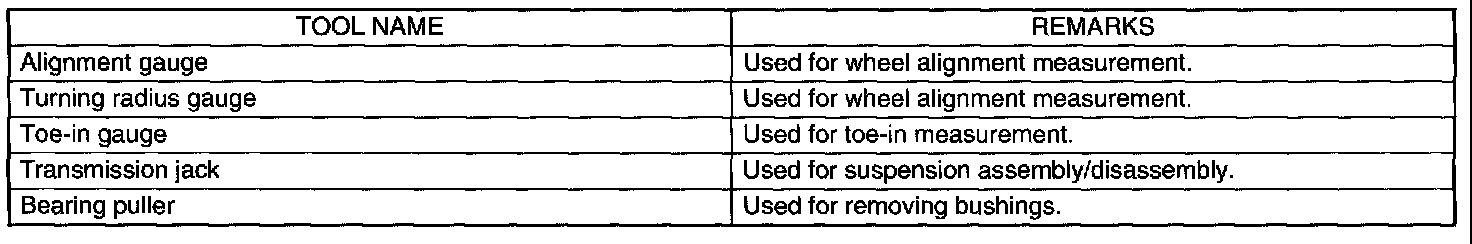

Rear Suspension / General Purpose Tools:
