Steering: Tools and Equipment

PREPARATION TOOL

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:

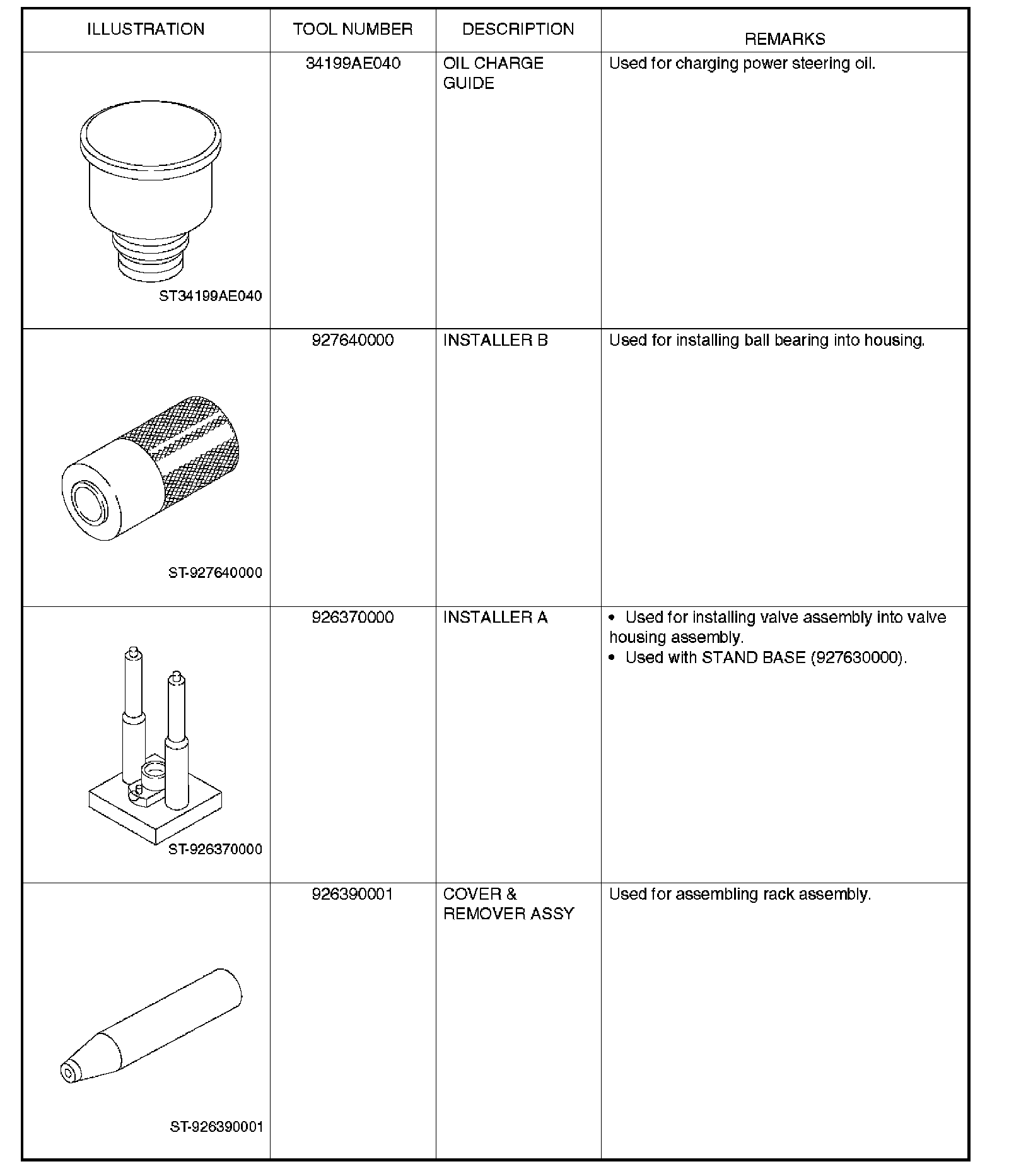

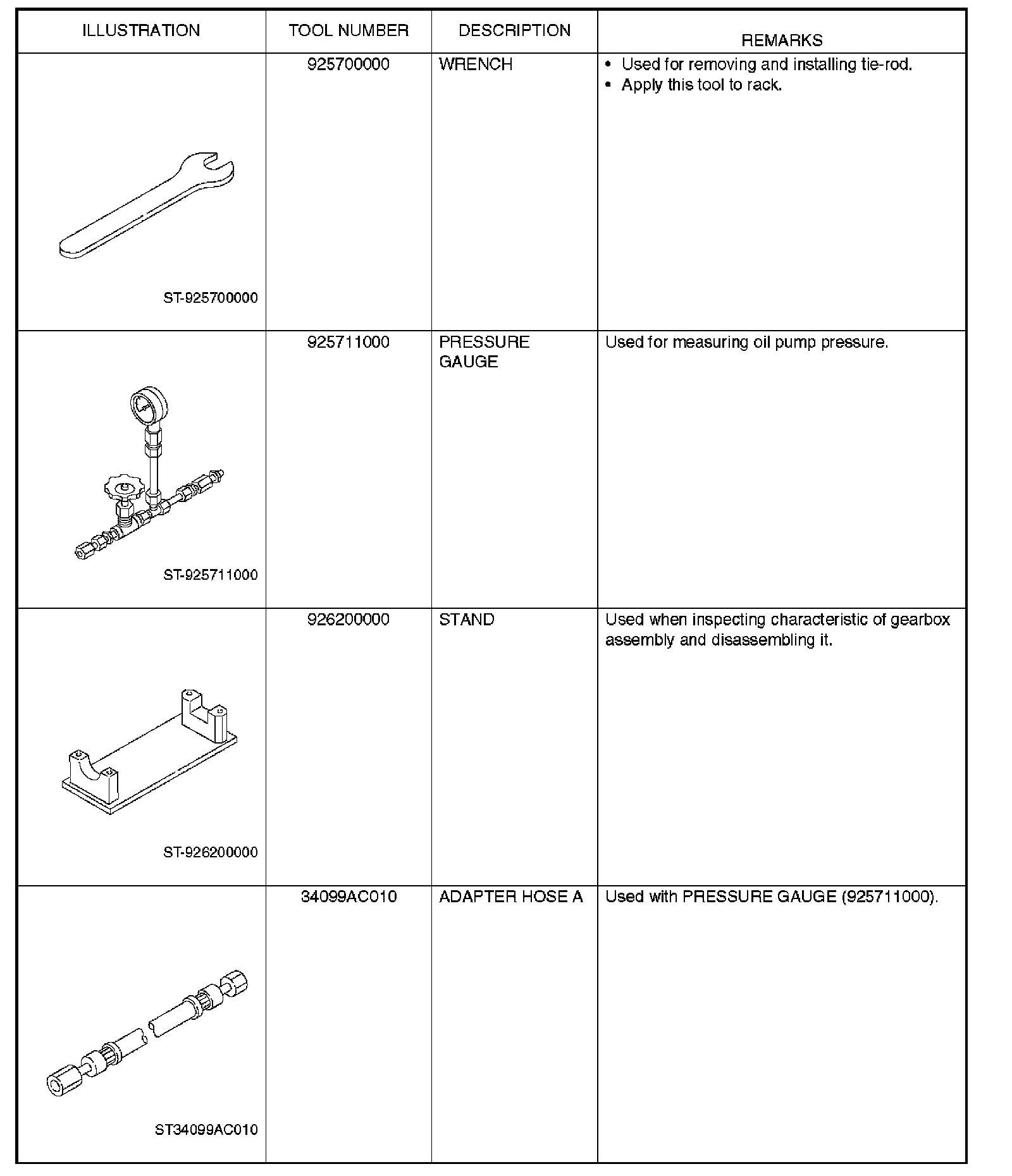

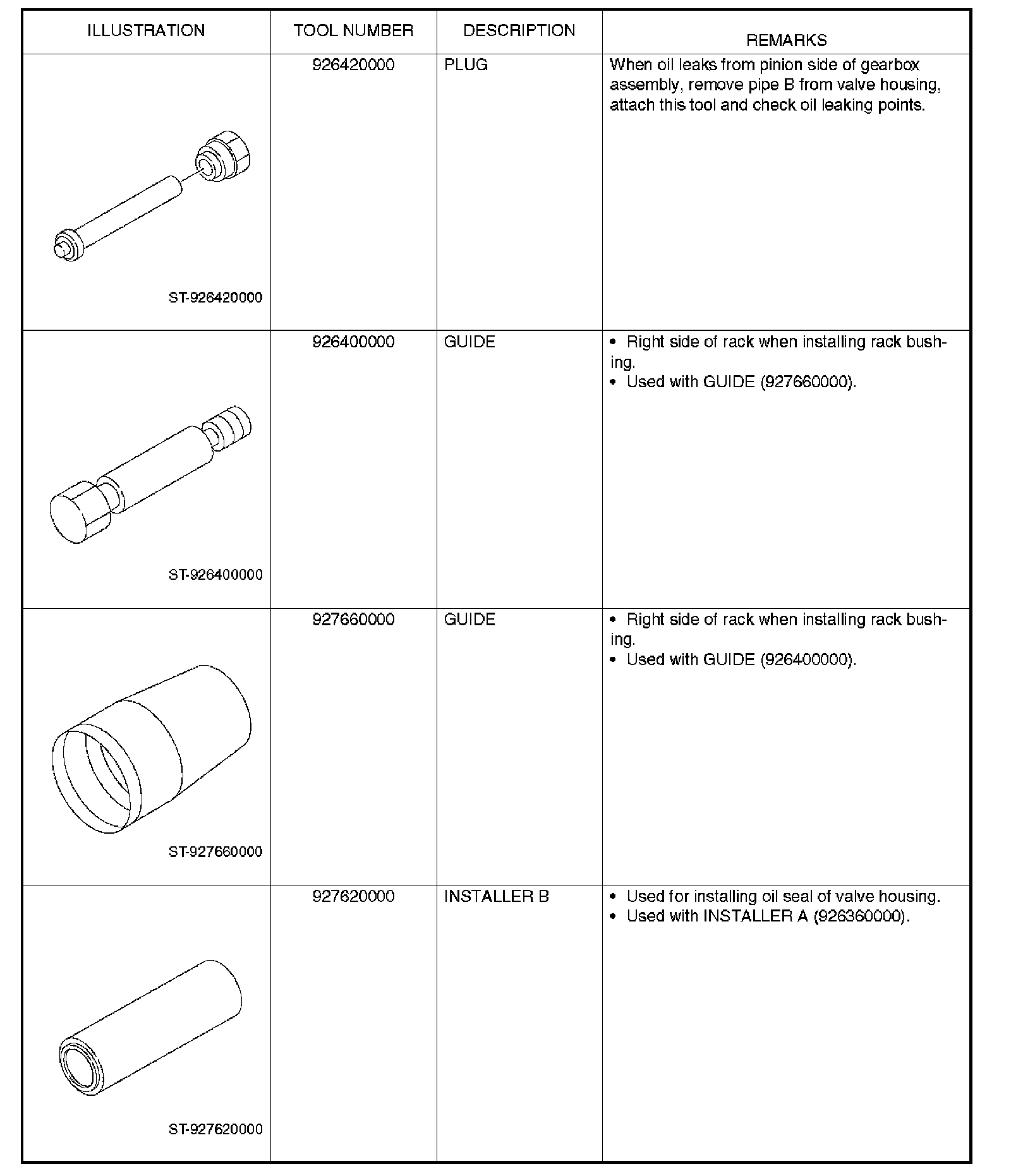

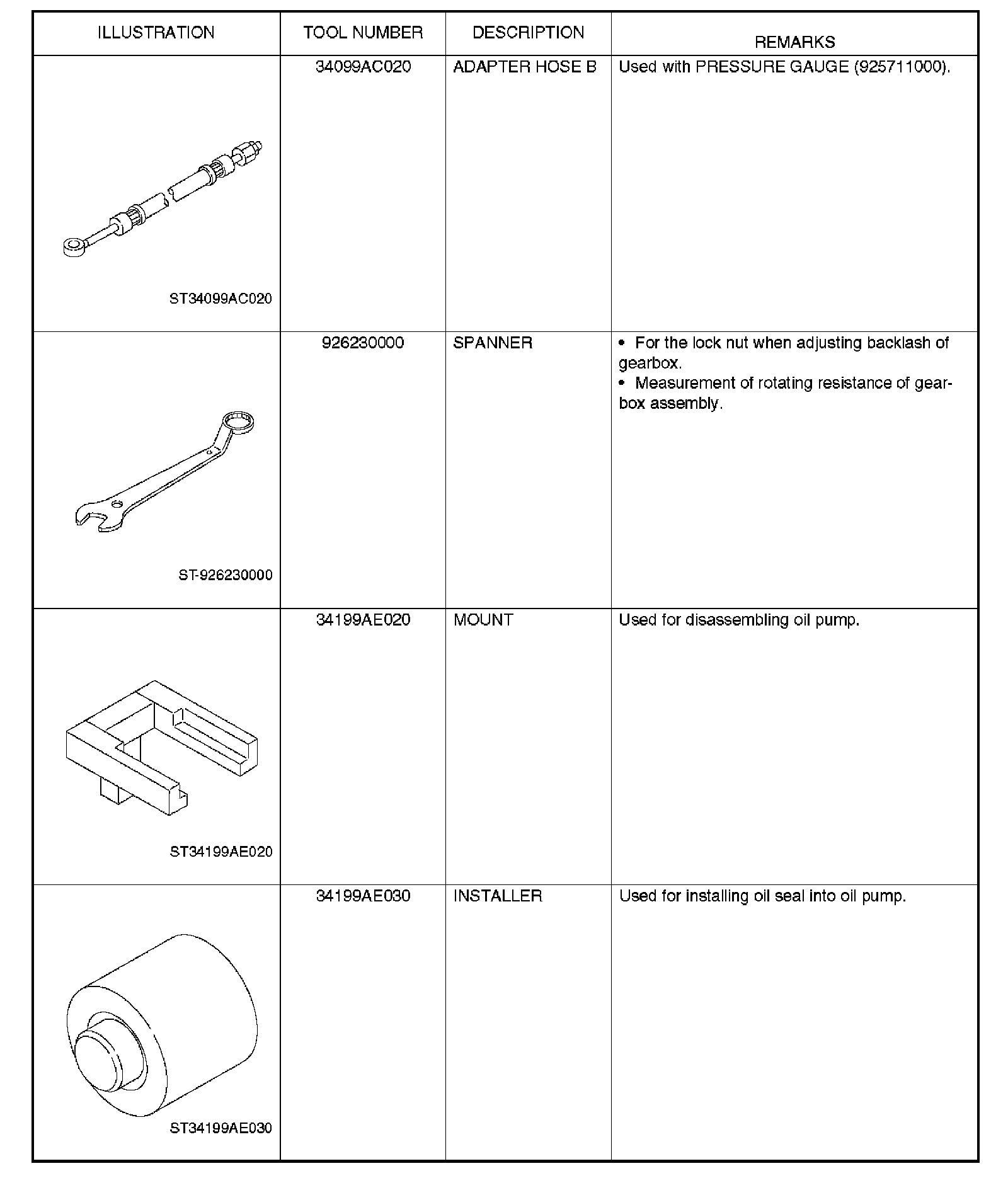

SPECIAL TOOLS

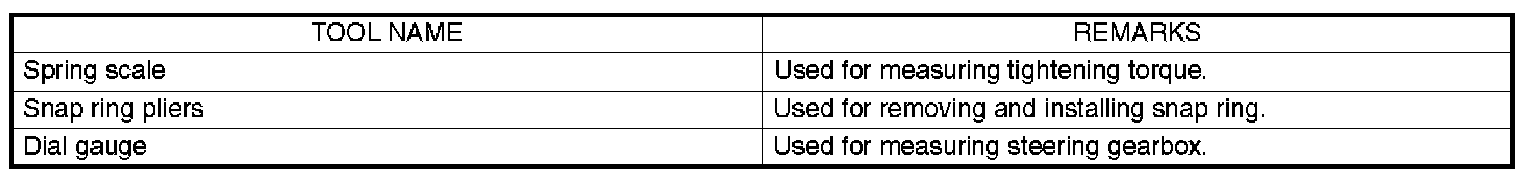

GENERAL PURPOSE TOOLS
