Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Wheels and Tires >> System Specifications >> Adjusting Parts

Adjusting Parts

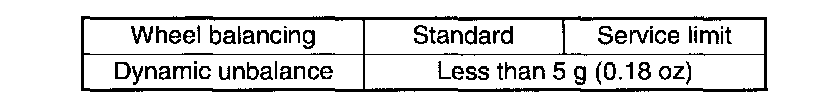

Adjusting Parts 1 of 3:

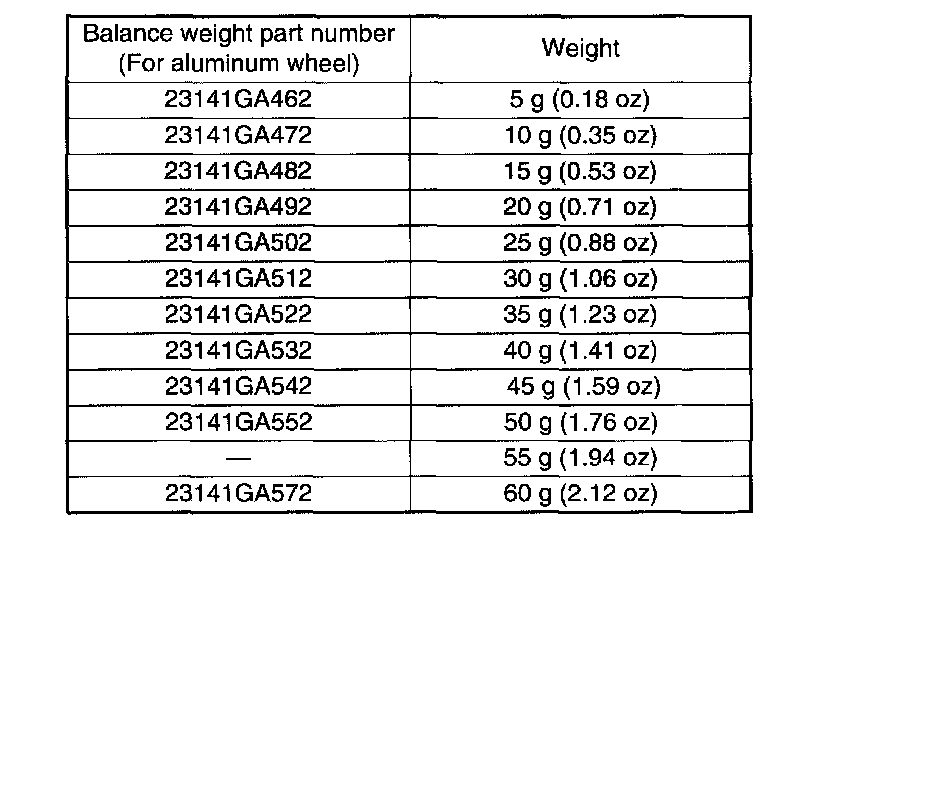

Adjusting Parts 2 of 3:

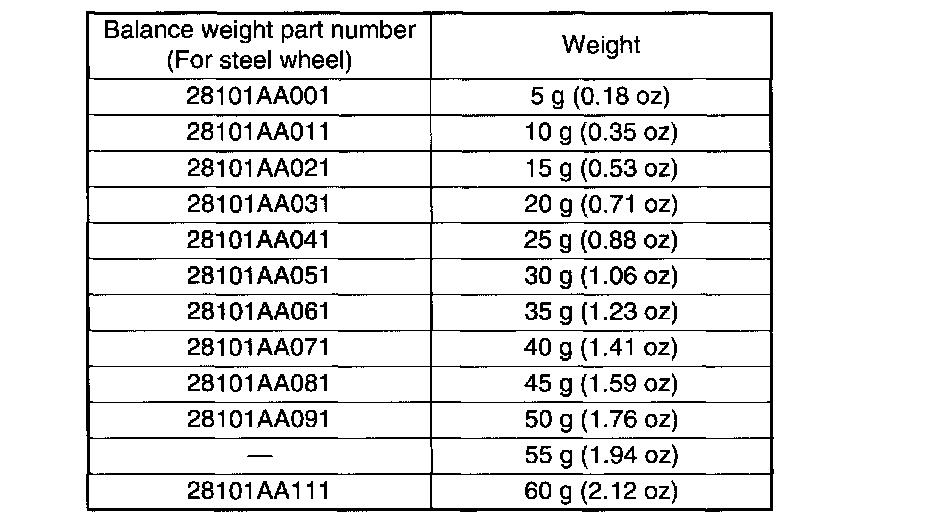

Adjusting Parts 3 of 3:
