Gear Sensor/Switch: Service and Repair

REMOVAL
BACK-UP LIGHT AND NEUTRAL POSITION SWITCH
1. Disconnect ground cable from battery.
2. Remove the air intake duct and cleaner case or the air intake chamber. (Non-TURBO model
3. Remove the intercooler. (Turbo model)





4. Disconnect the connector of back-up light switch and neutral position switch.

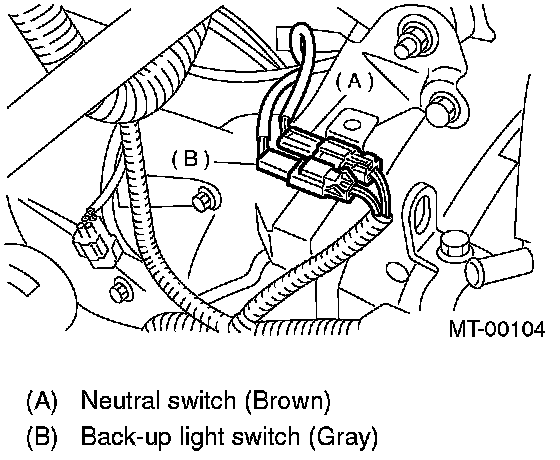

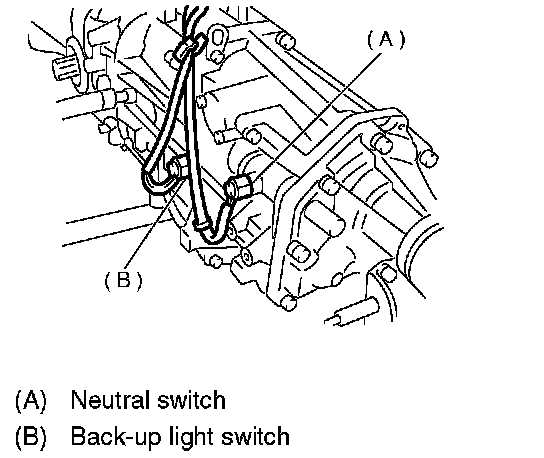

^ NON-TURBO MODEL

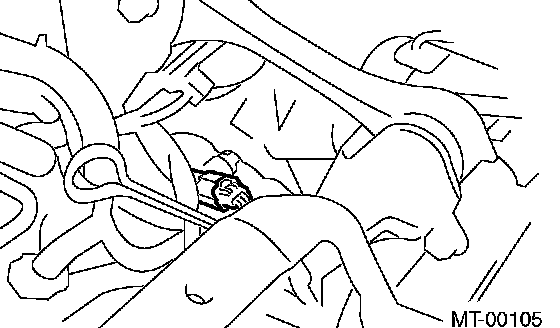

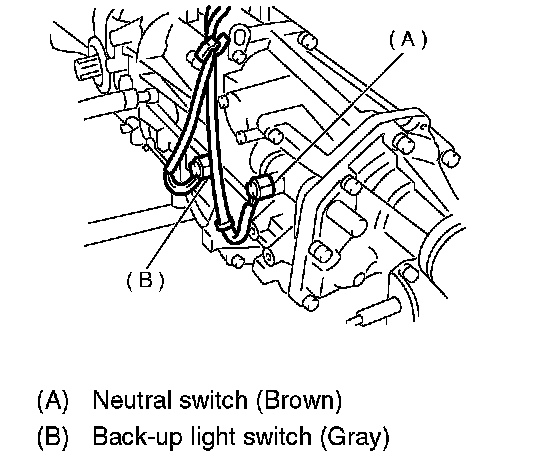

^ TURBO MODEL
5. Lift-up the vehicle.





6. Remove the back-up light switch and neutral position switch with harness.

INSTALLATION
BACK-UP LIGHT SWITCH AND NEUTRAL POSITION SWITCH





1. Install the back-up light switch and neutral position switch with harness.
Tightening torque: 24.5 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
2. Connect the connector of back-up light switch and neutral position switch.
3. Install the air intake duct and cleaner case or the air intake chamber. (Non-TURBO model)
4. Install the intercooler. (Turbo model)
5. Connect the battery ground cable to battery.

INSPECTION
BACK-UP LIGHT SWITCH
Inspect the back-up light switch.

NEUTRAL POSITION SWITCH
1. Turn the ignition switch to OFF.
2. Disconnect the connector of neutral position switch.
3. Measure the resistance between neutral position switch terminals.








Non-TURBO model








Turbo model

4. Replace defective parts.
