Evaporative Emission Control Canister: Service and Repair

Canister

REMOVAL

1. Lift-up the vehicle.




2. Loosen two clamps which hold two canister hoses, and disconnect three evaporation hoses from canister.

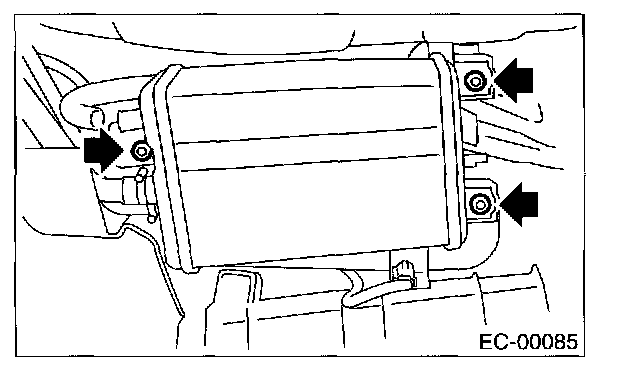

3. Remove canister from body.

INSTALLATION




Install in the reverse order of removal.

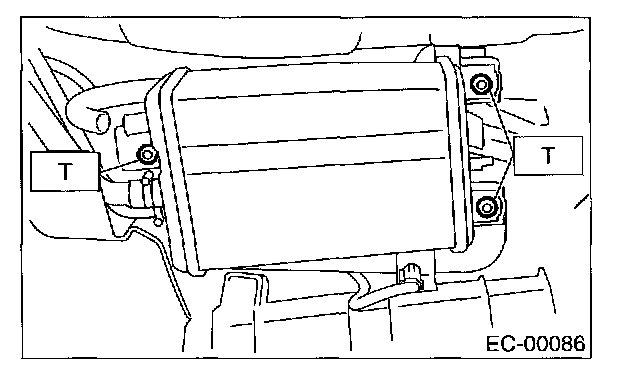

Tightening torque: 23 N.m (2.3 kgf-m, 17 ft-lb)
