Malfunction Indicator Lamp (MIL) Does Not Go OFF

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT GO OFF

DIAGNOSIS:
The CHECK ENGINE malfunction indicator lamp (MIL) circuit is shorted.

TROUBLE SYMPTOM
Although MIL comes on when engine runs, trouble code is not shown on Subaru select monitor or OBD-II general scan tool display.

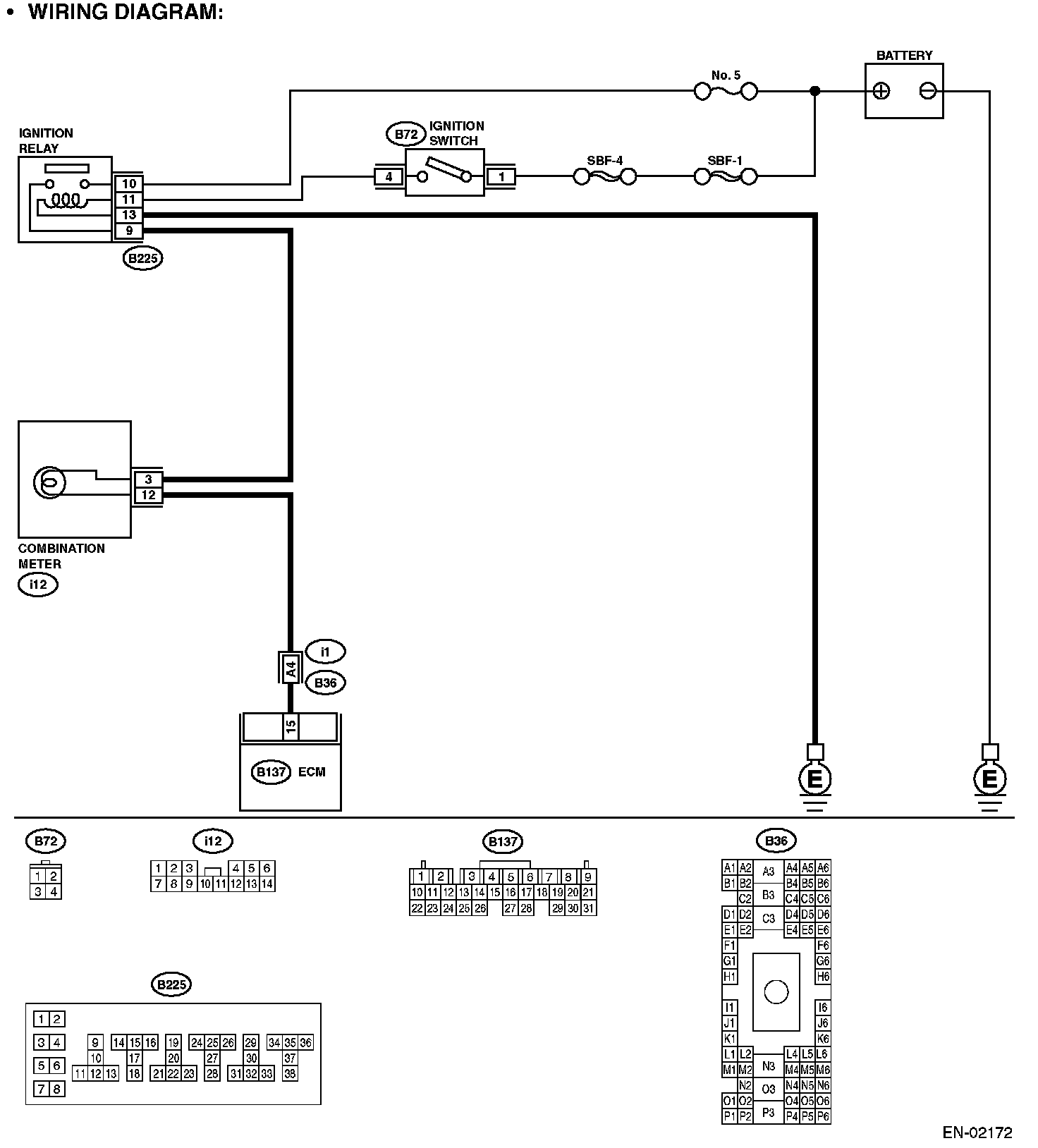

Wiring Diagram:

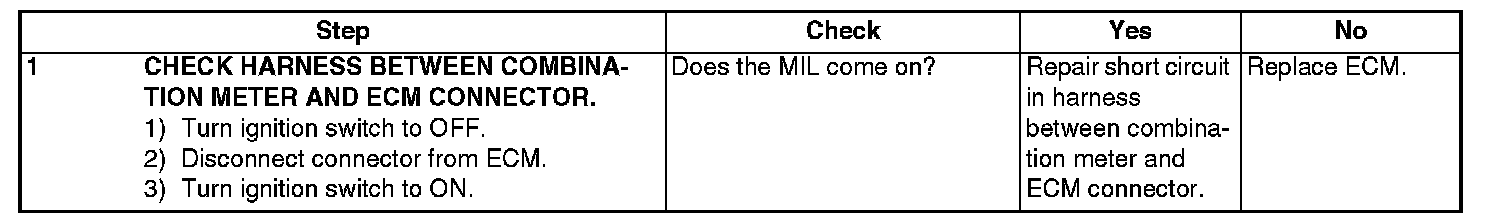

Step 1:
