Ignition Control System
IGNITION CONTROL SYSTEMCAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

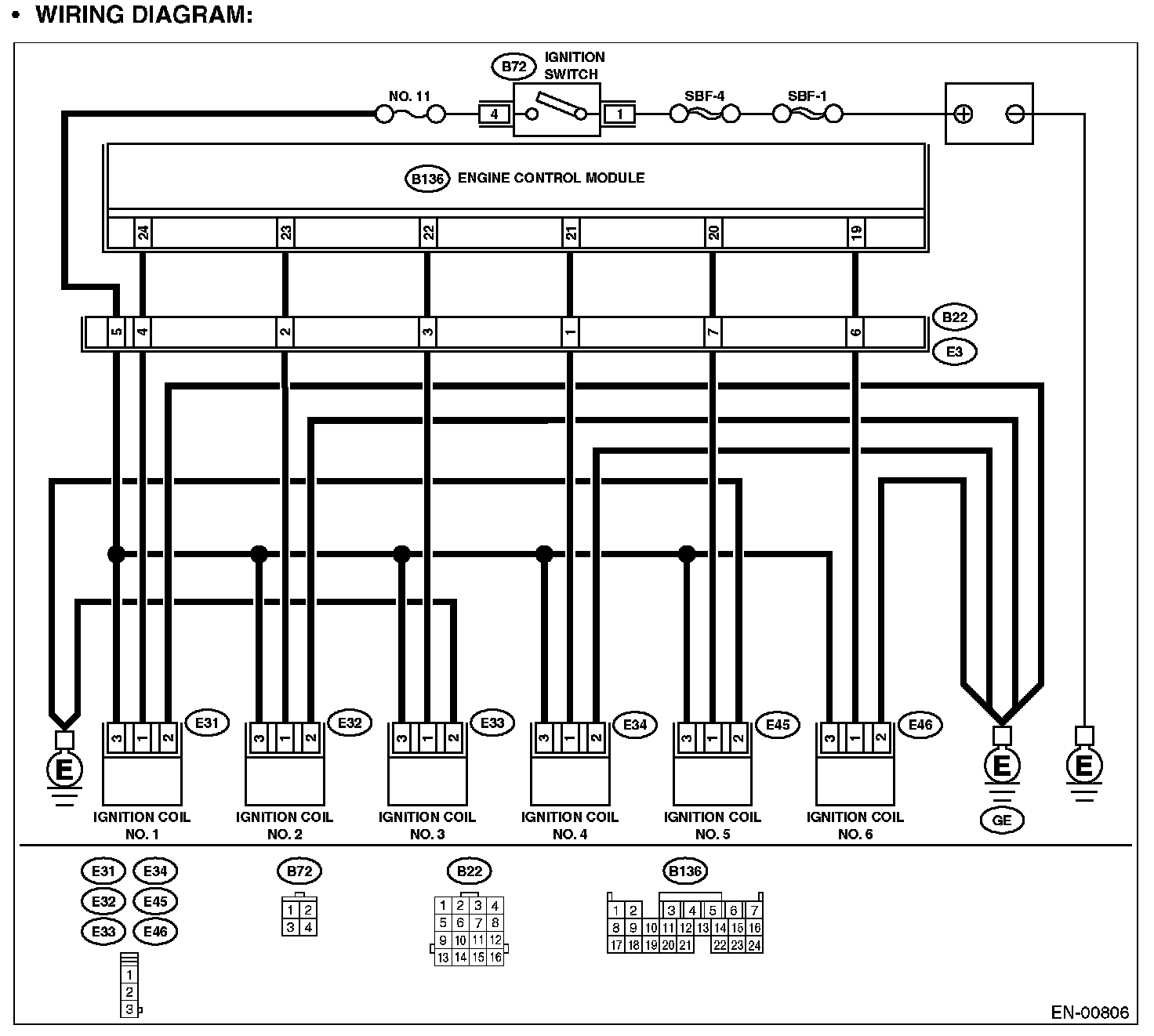

Wiring Diagram:

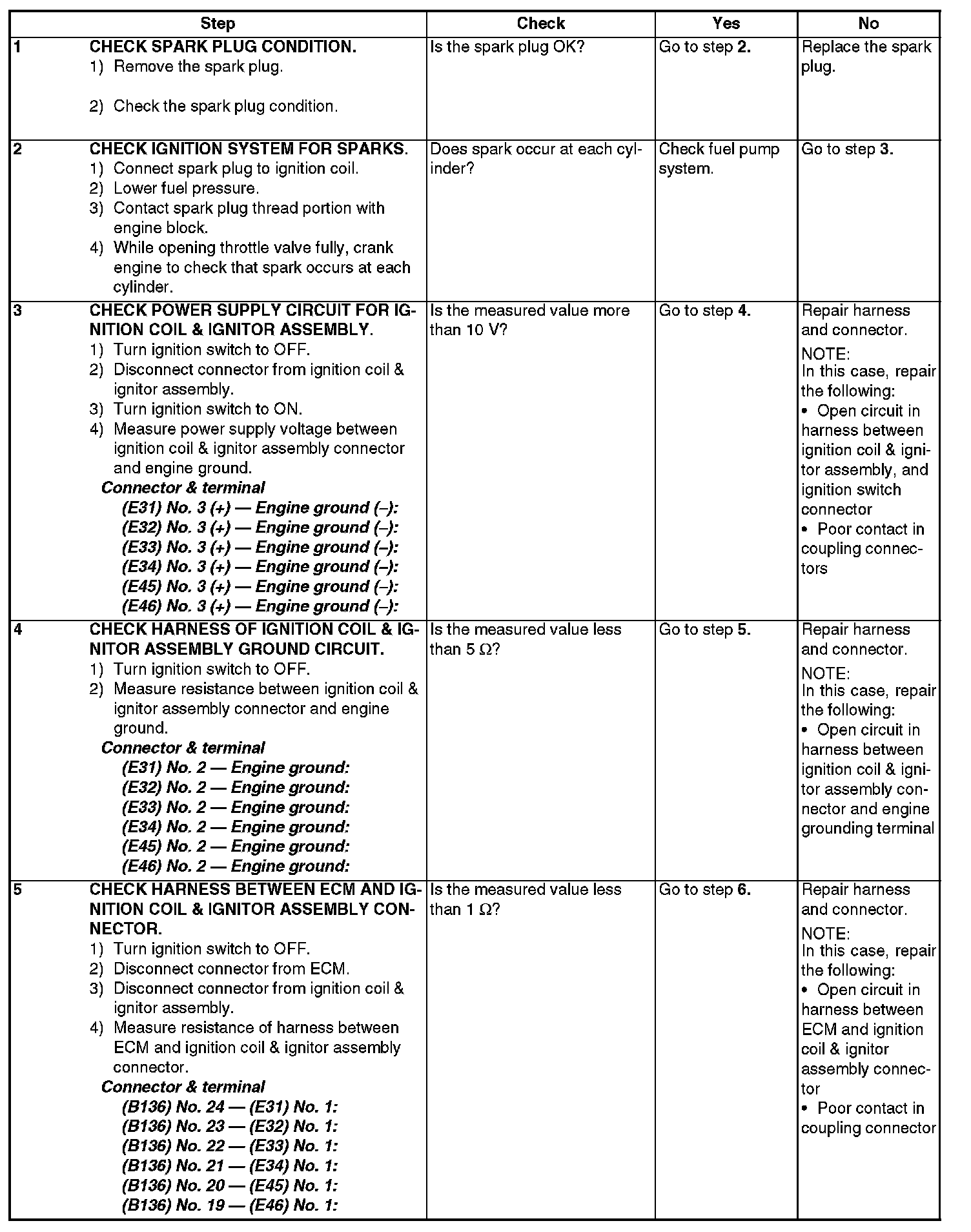

Step 1 - 5:
Step 6 - 8:
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
