Control Module Power Supply and Ground Line
CONTROL MODULE POWER SUPPLY AND GROUND LINECAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

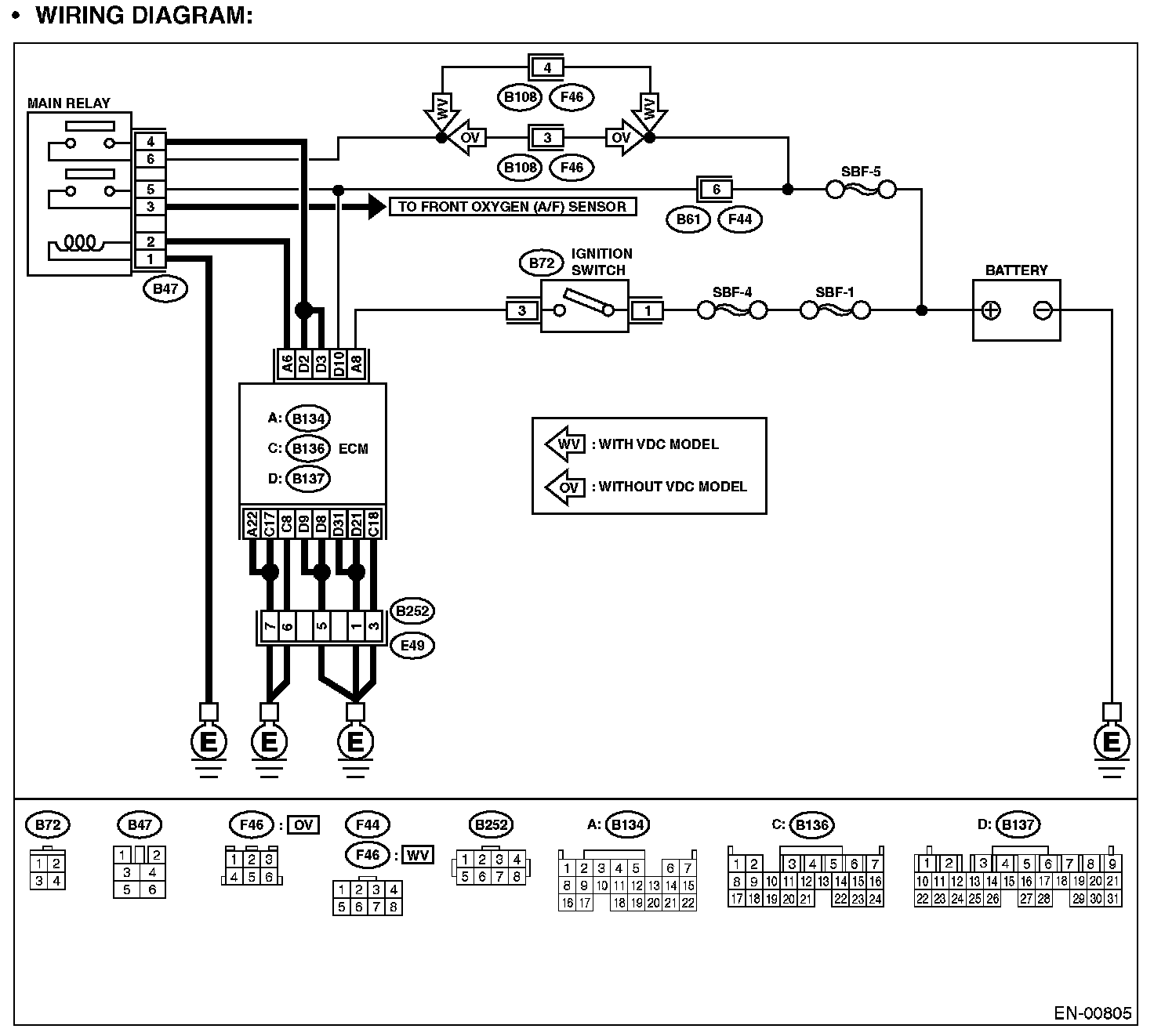

Wiring Diagram:

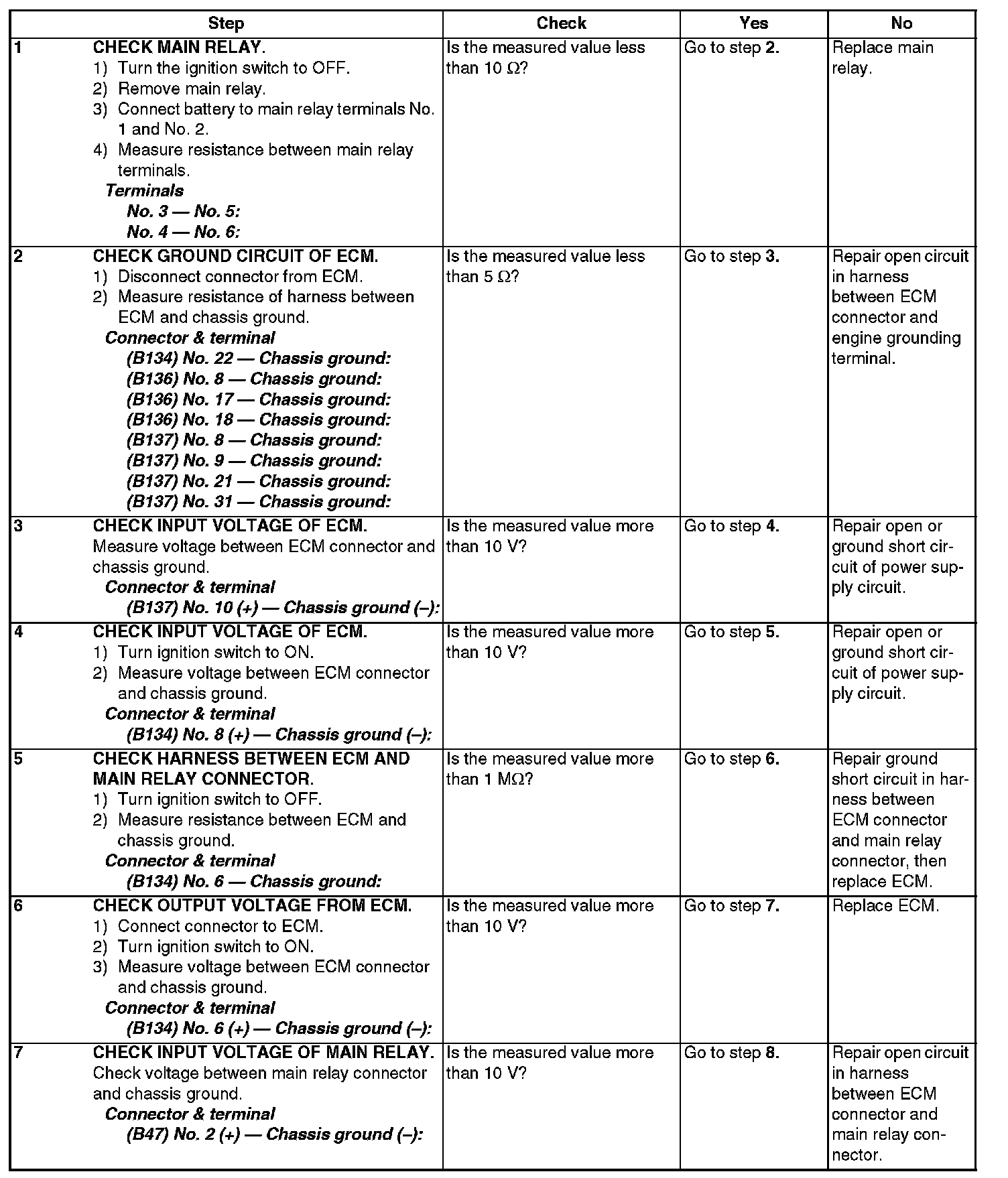

Step 1 - 7:
Step 8 - 10:
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
