Relay Box: Application and ID

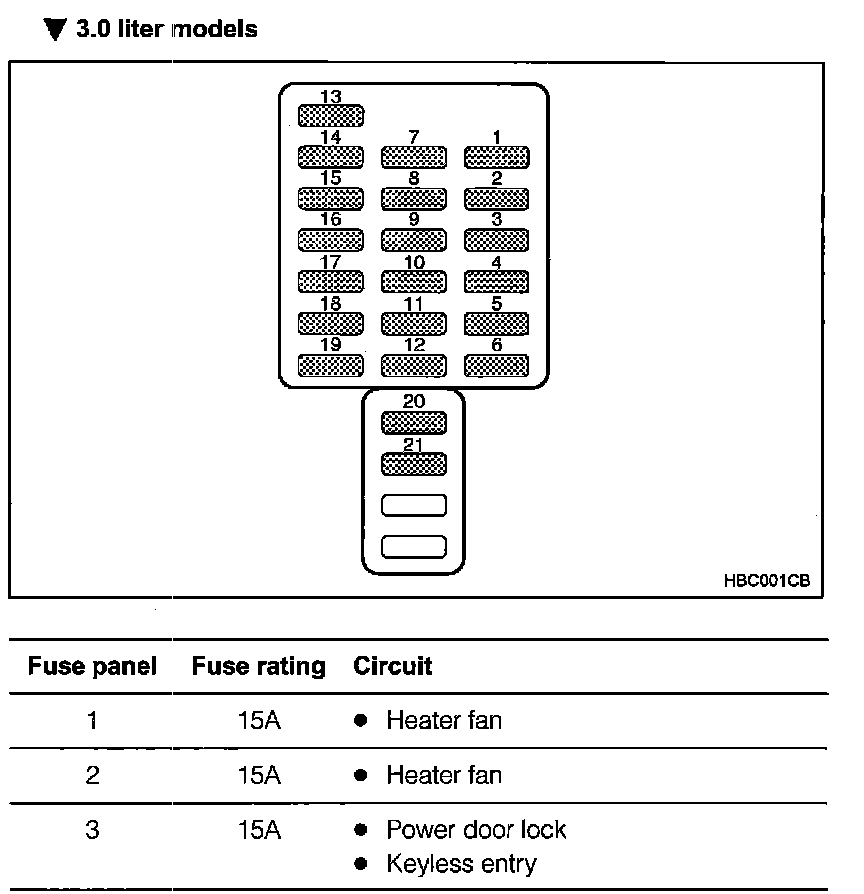

Fuse Panel Located Behind Coin Tray:
Fuse Box Locations

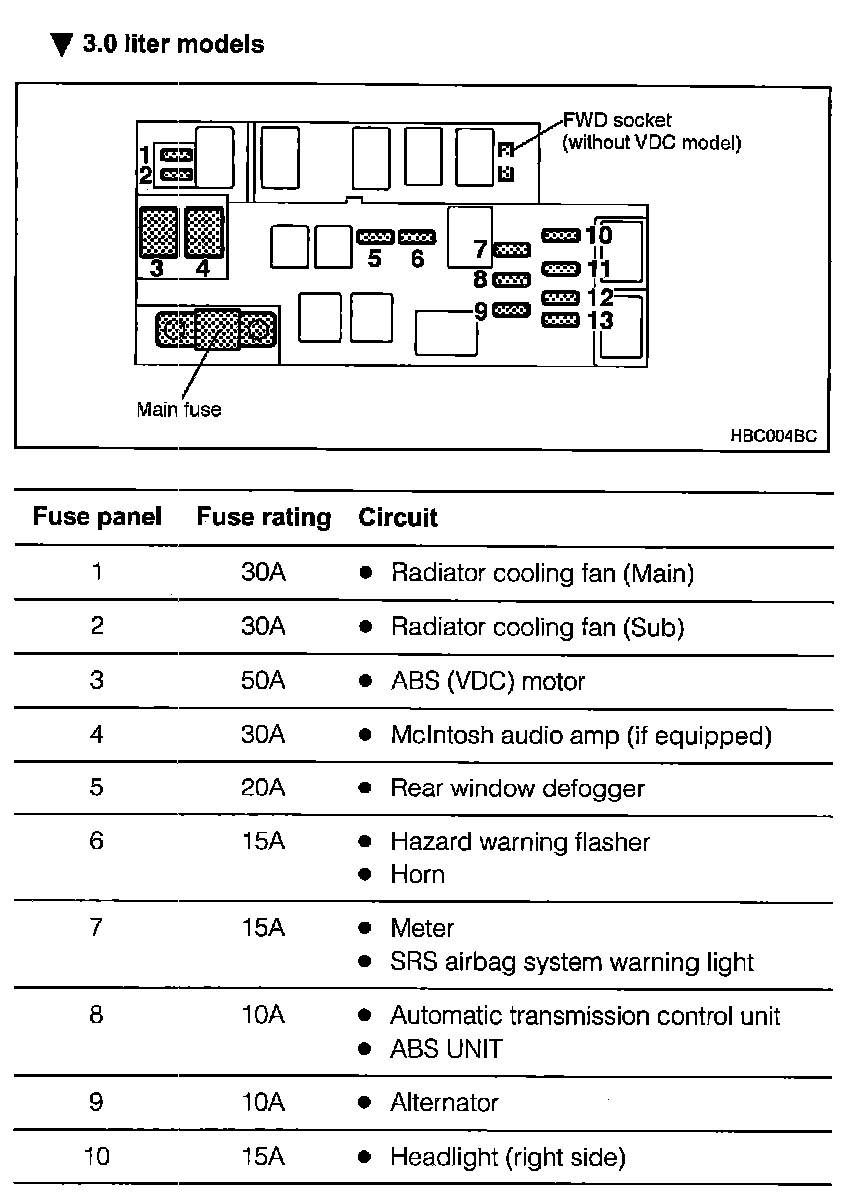

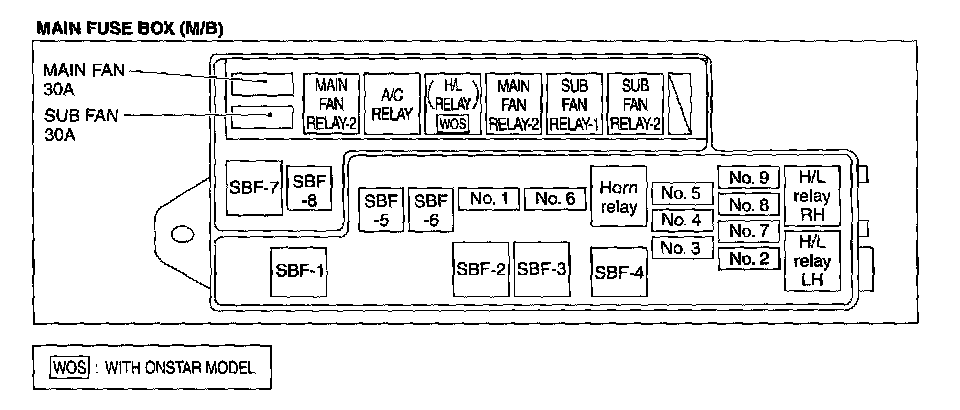

Main Fuse Box (M/B):

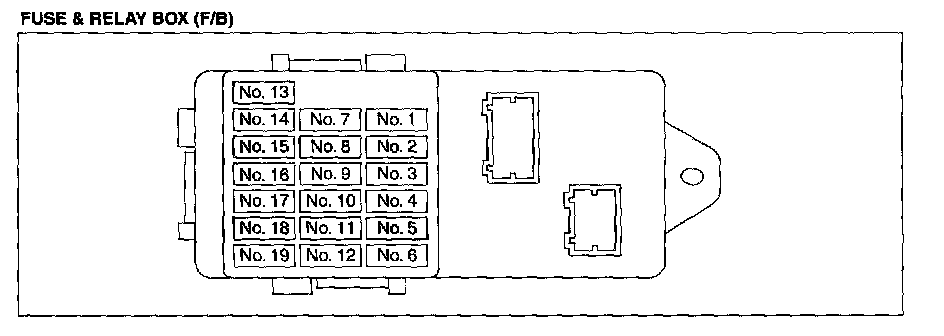

Fuse & Relay Box (F/B):

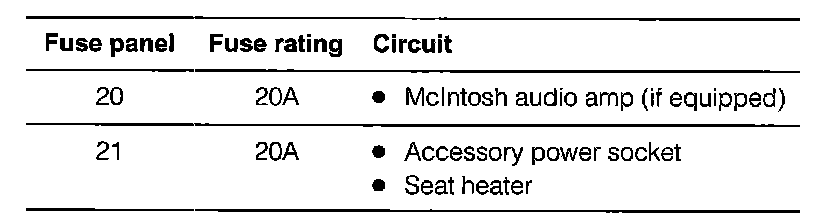

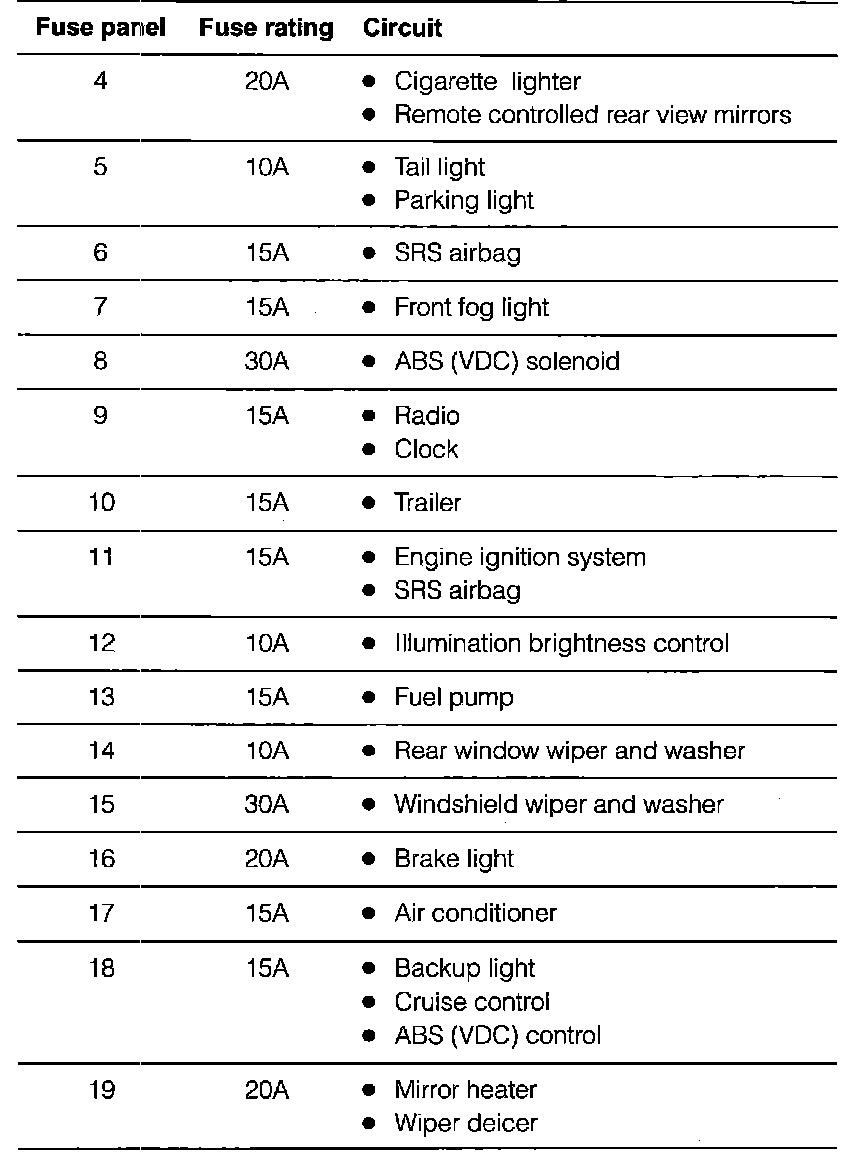

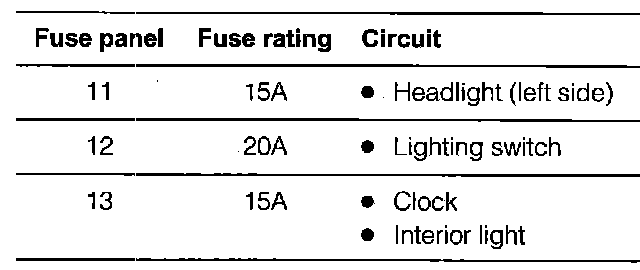

Fuse Panel Details
