Backup Lamp Switch
>>
Testing and Inspection
>>
Back-Up Light Switch (M/T)
Back-Up Light Switch (M/T)
BACK-UP LIGHT SWITCH (M/T)

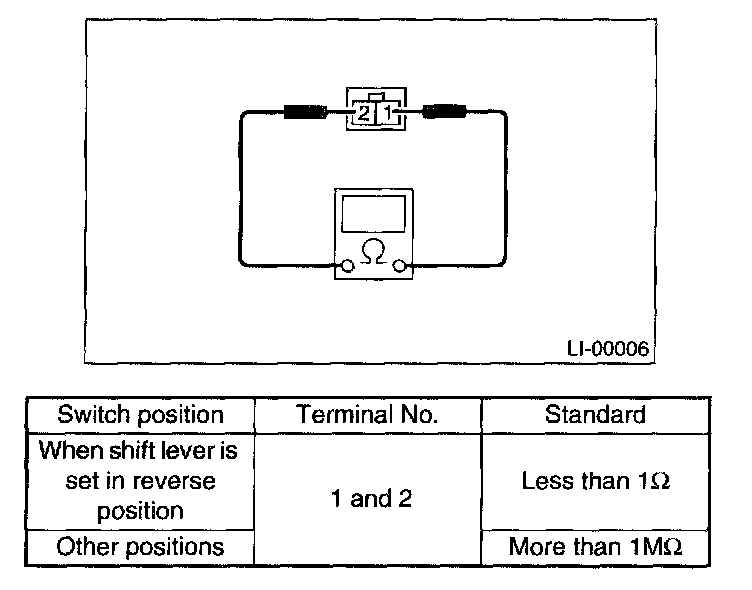

Measure back-up light switch resistance.
