Compartment Temperature Does Not Change

COMPARTMENT TEMPERATURE DOES NOT CHANGE FROM "SET" TEMPERATURE OR AIR CONDITIONING SYSTEM DOES NOT RESPOND QUICKLY

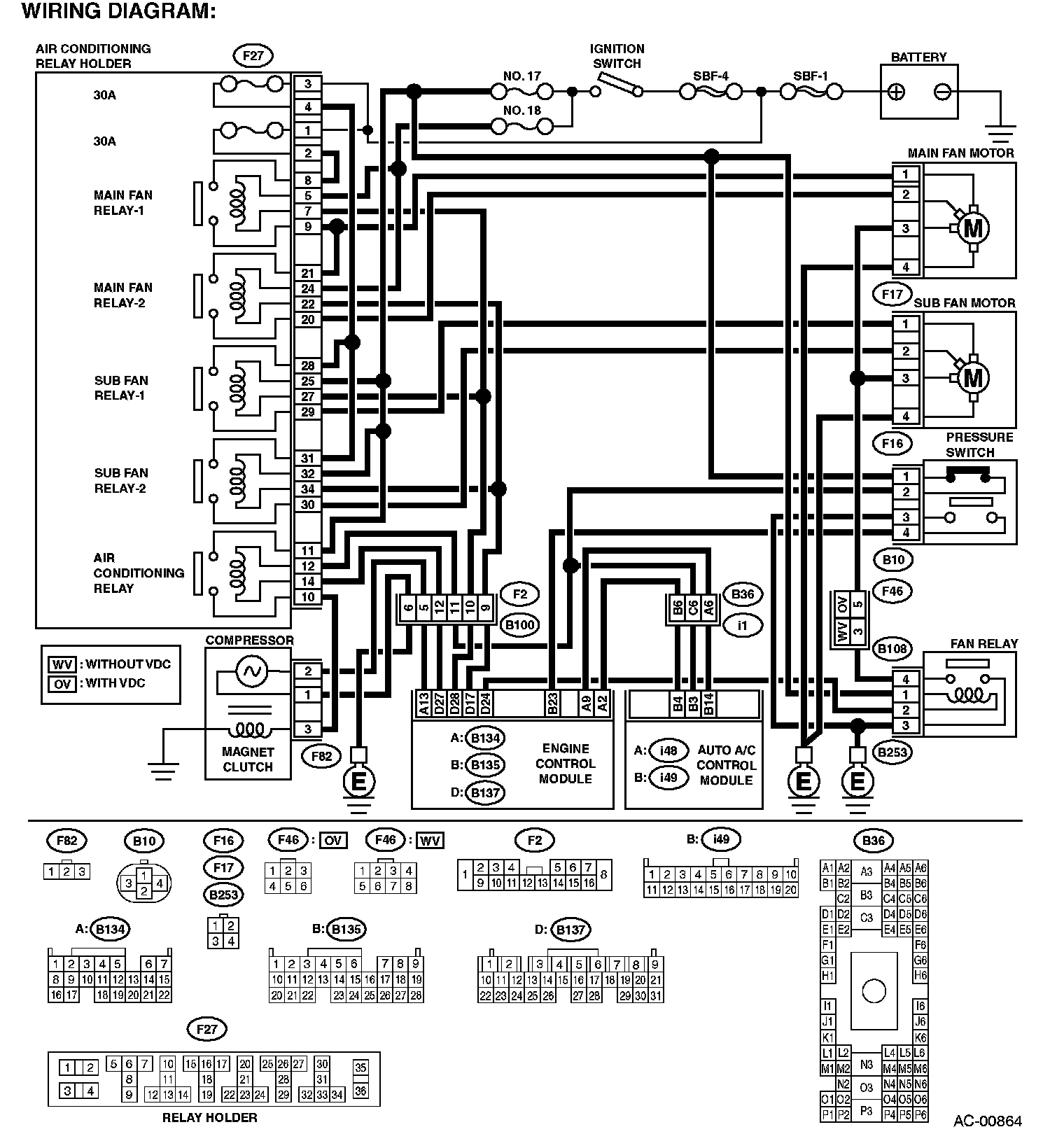

Wiring Diagram:




WIRING DIAGRAM:

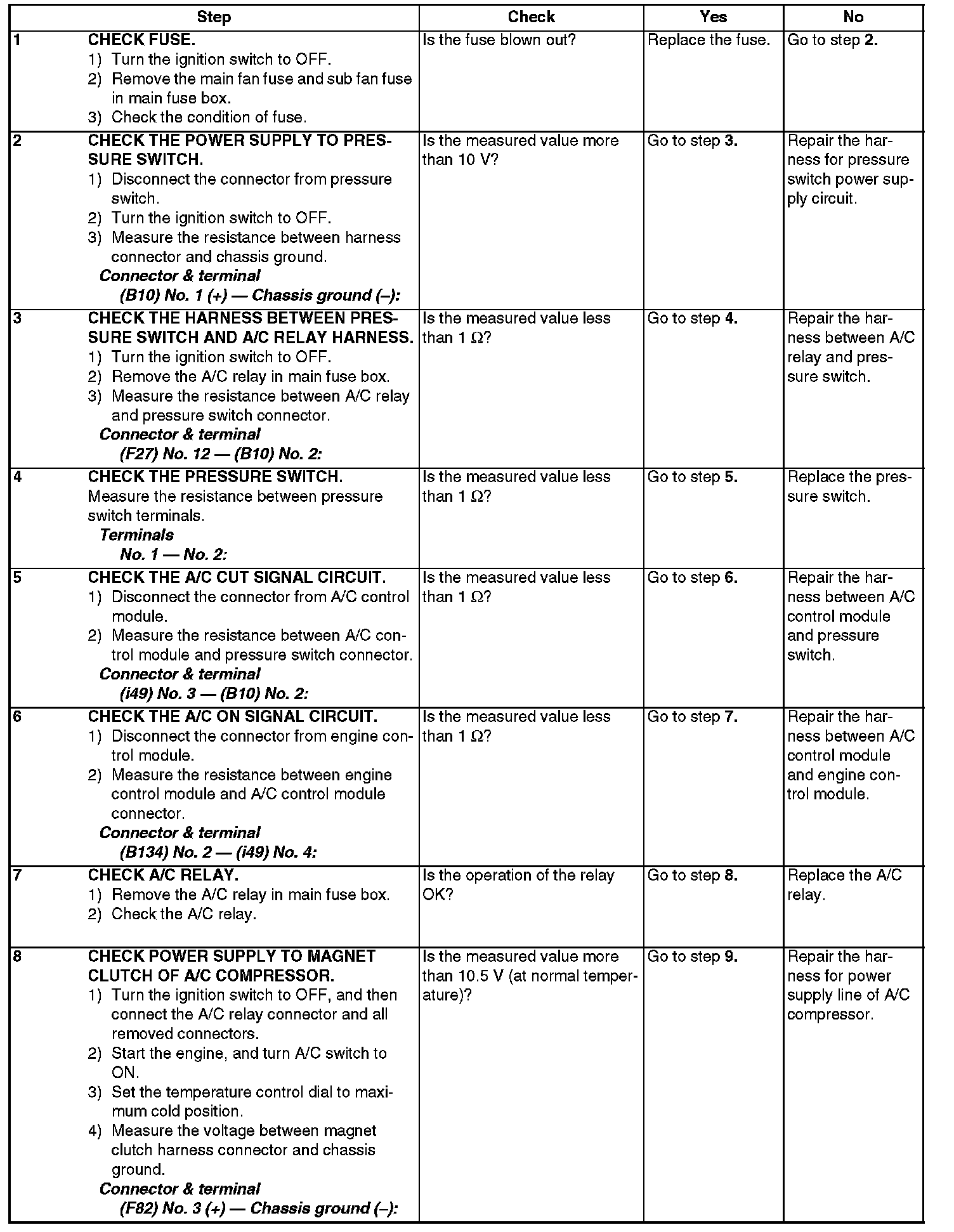

Step 1 - 8:

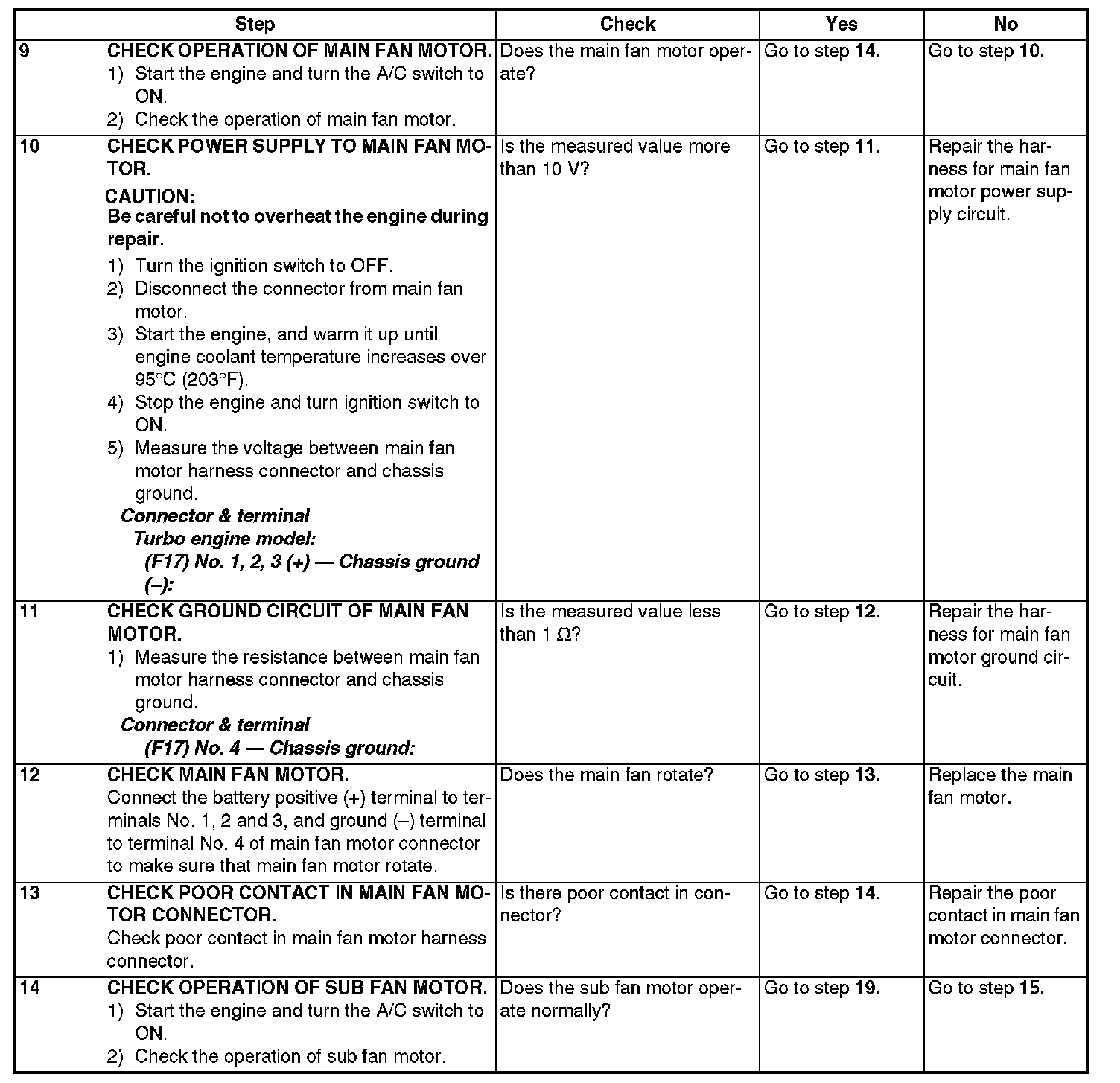

Step 9 - 14:

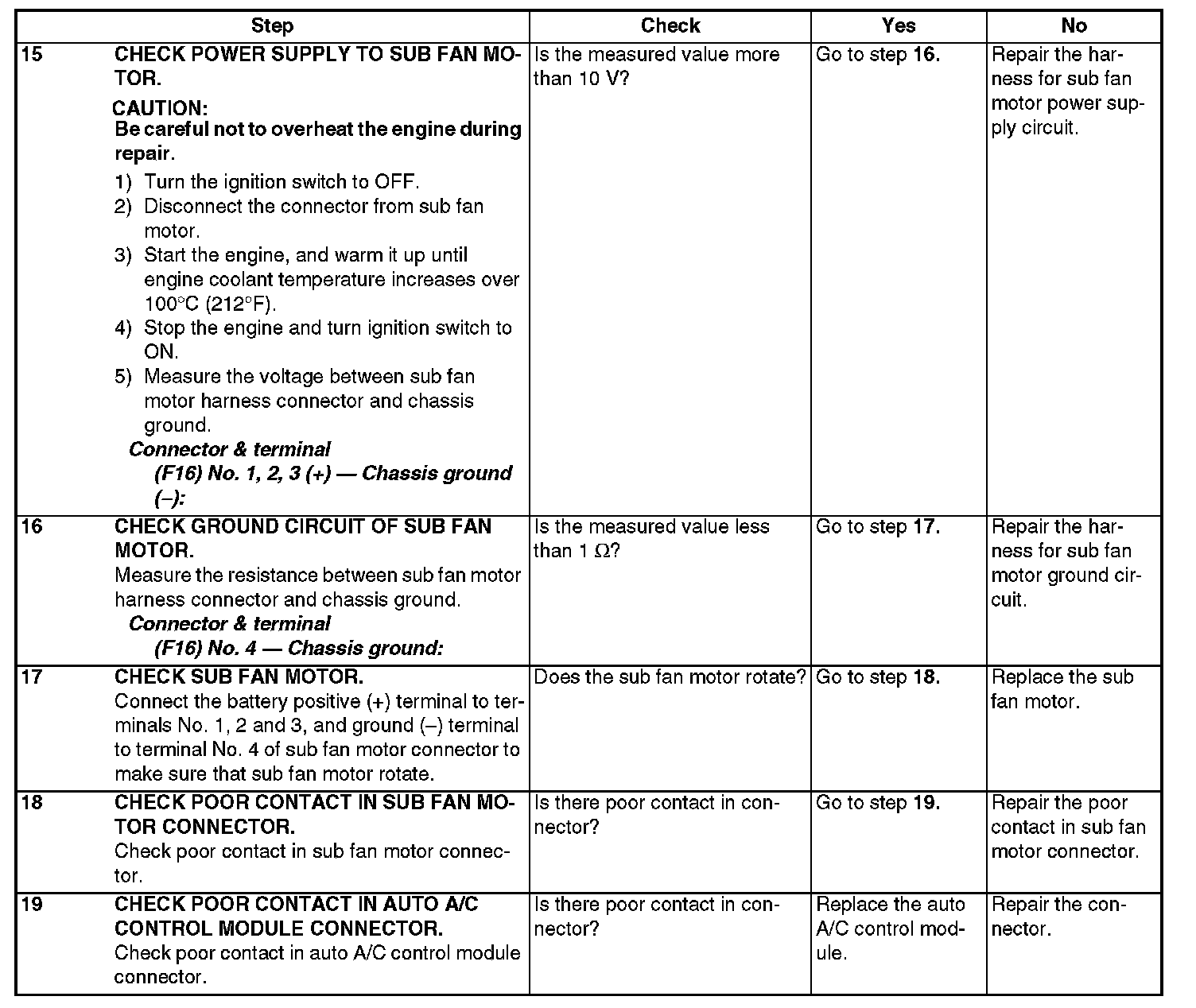

Step 15 - 19:
