Mode Selector Switch and Air Flow

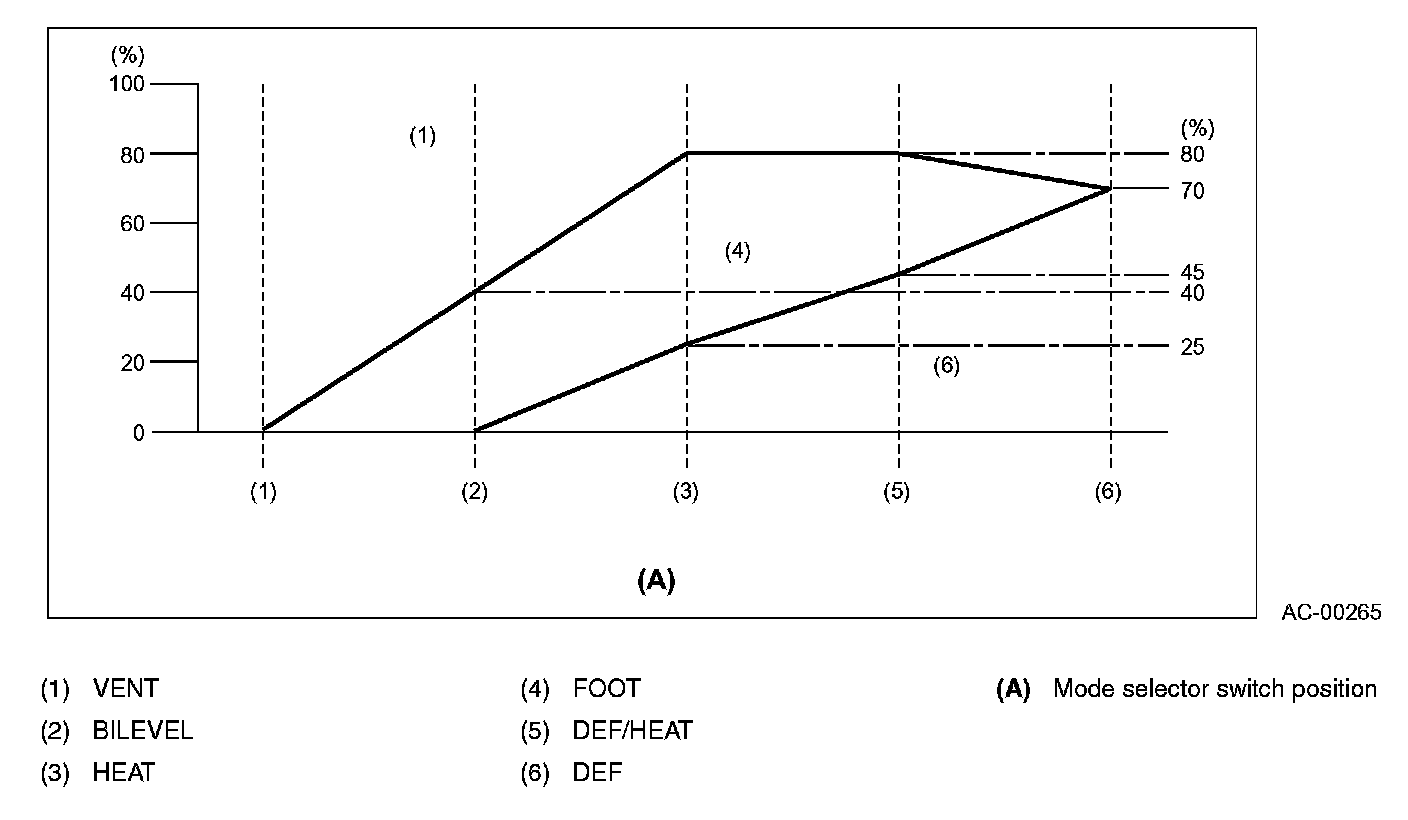

Air Distribution Ratio
The above diagram shows air distribution for each position of the mode selector switch.

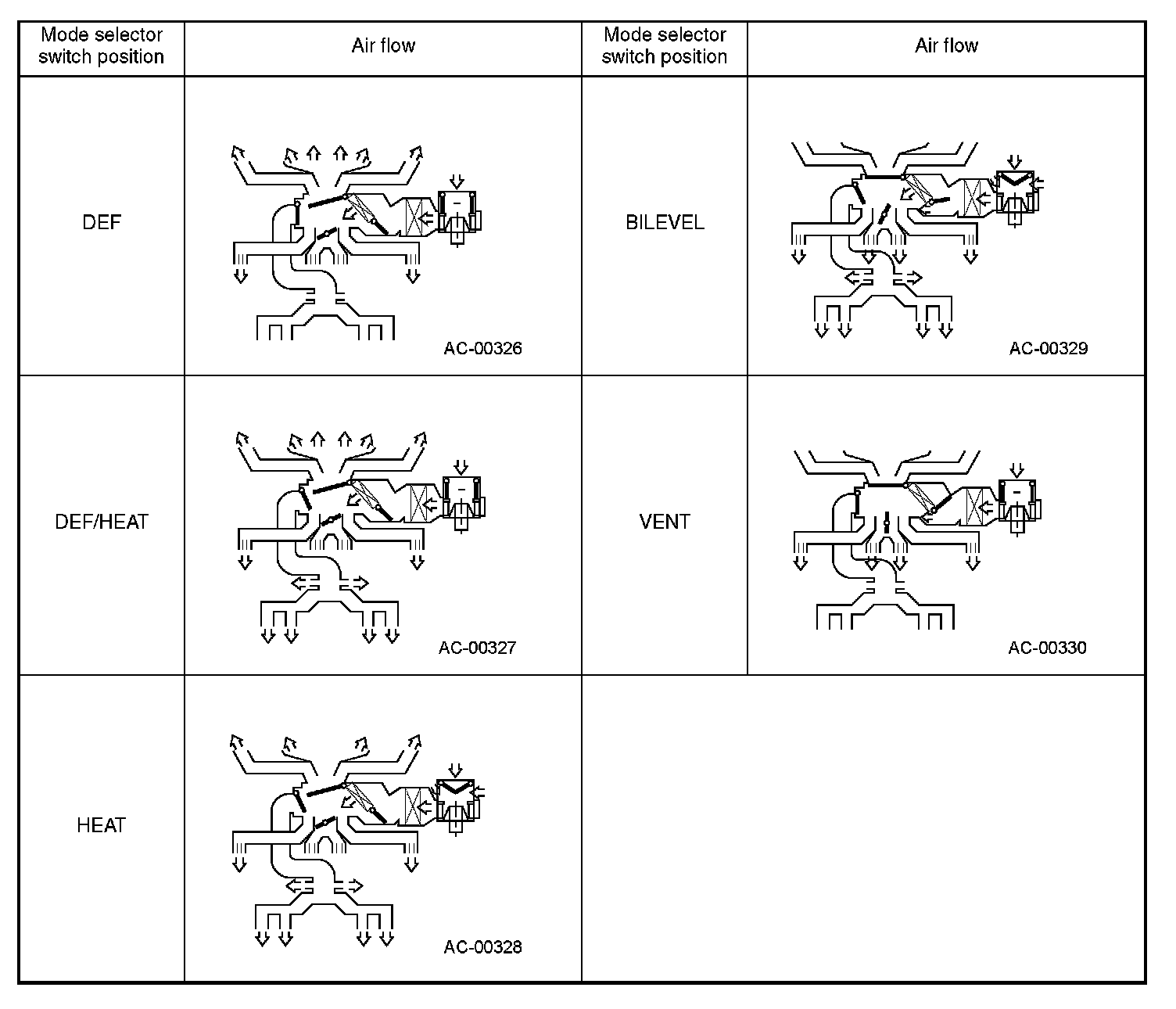

Air Flow:





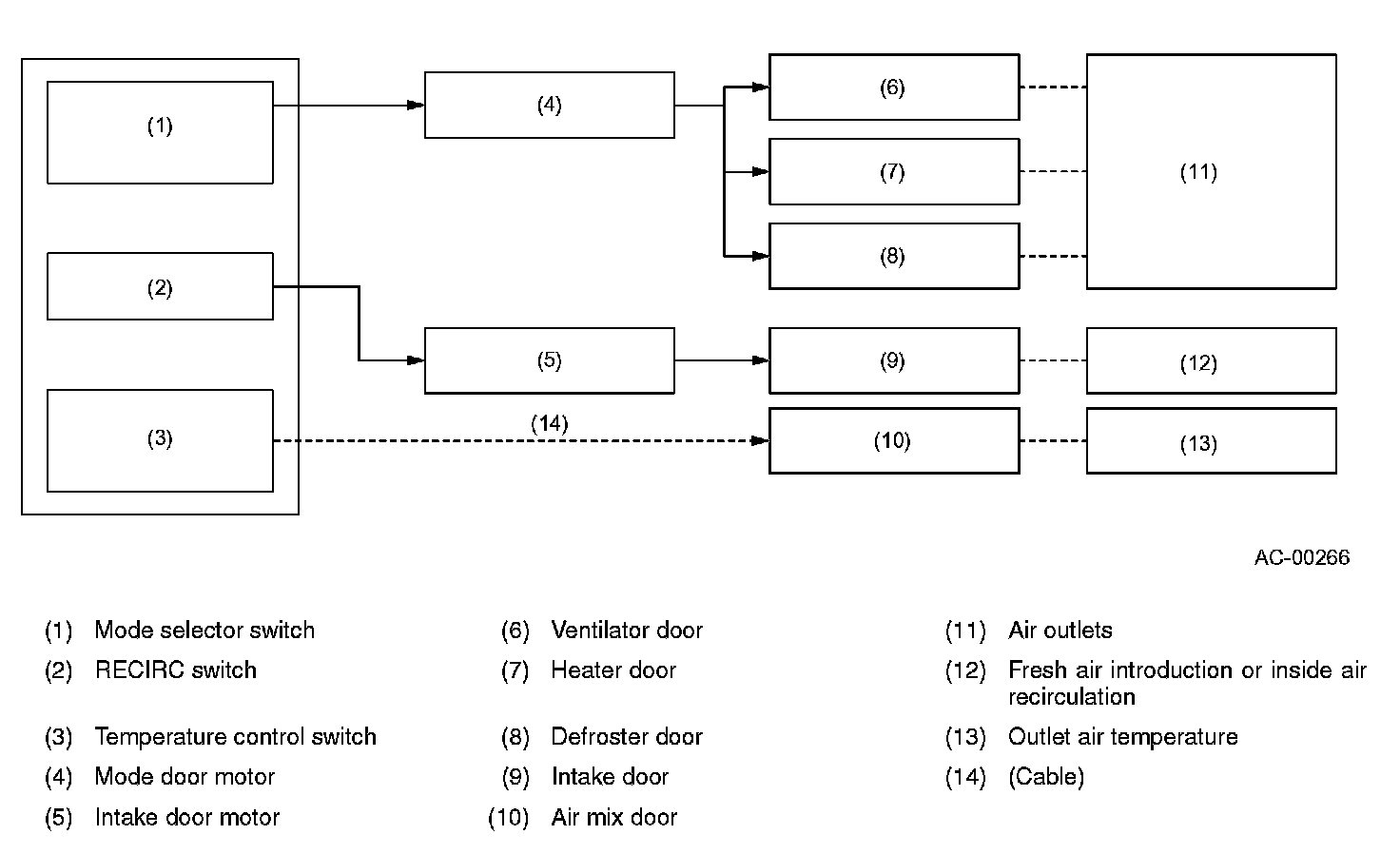

System Control Flow:
