Blower Motor: Testing and Inspection

BLOWER MOTOR DOES NOT ROTATE

TROUBLE SYMPTOM:
- Blower motor does not rotate.
- Blower motor does not rotate in "HI".

Wiring Diagram:




WIRING DIAGRAM:

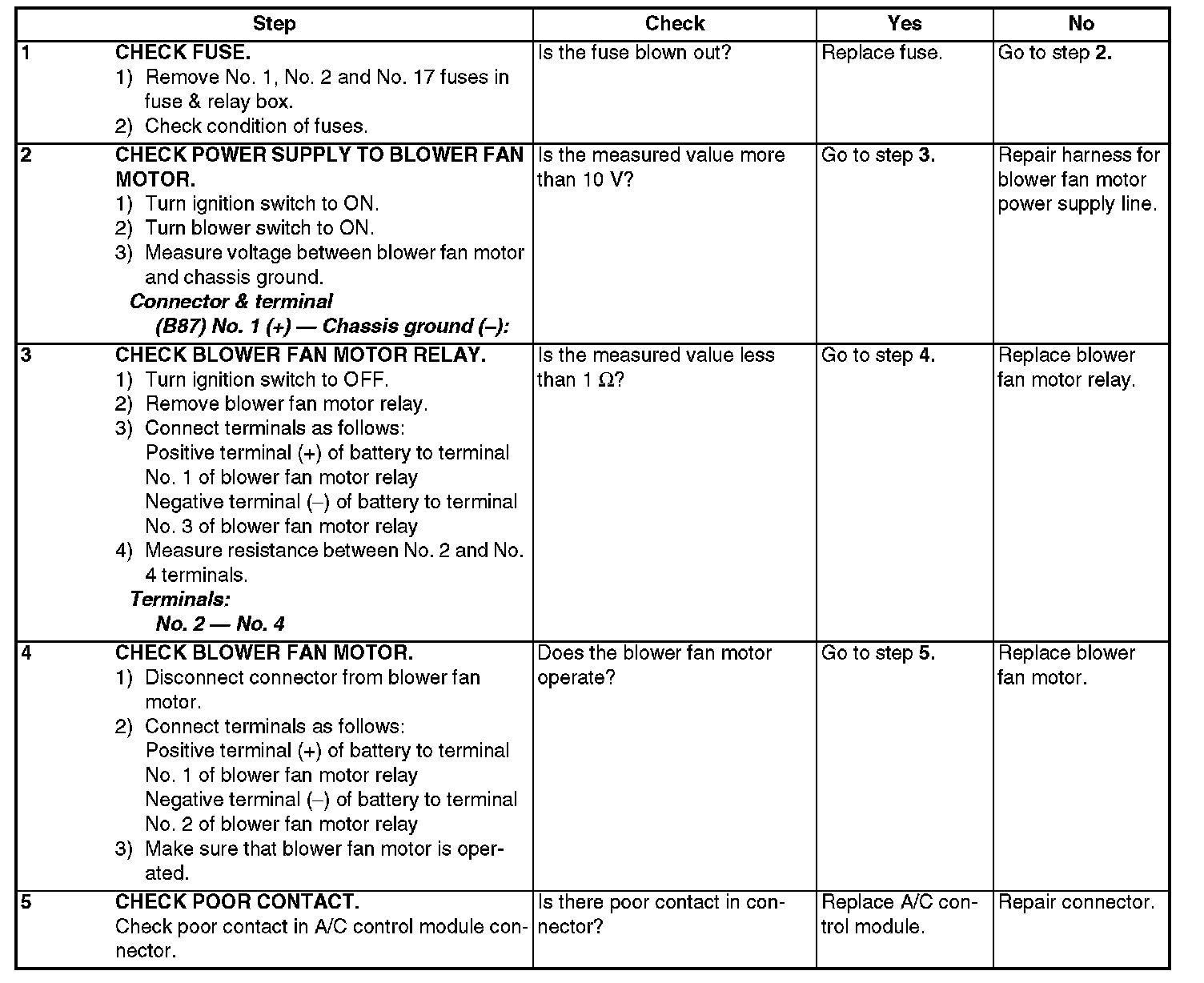

Step 1 - 5:
