System Diagram

COMPONENT

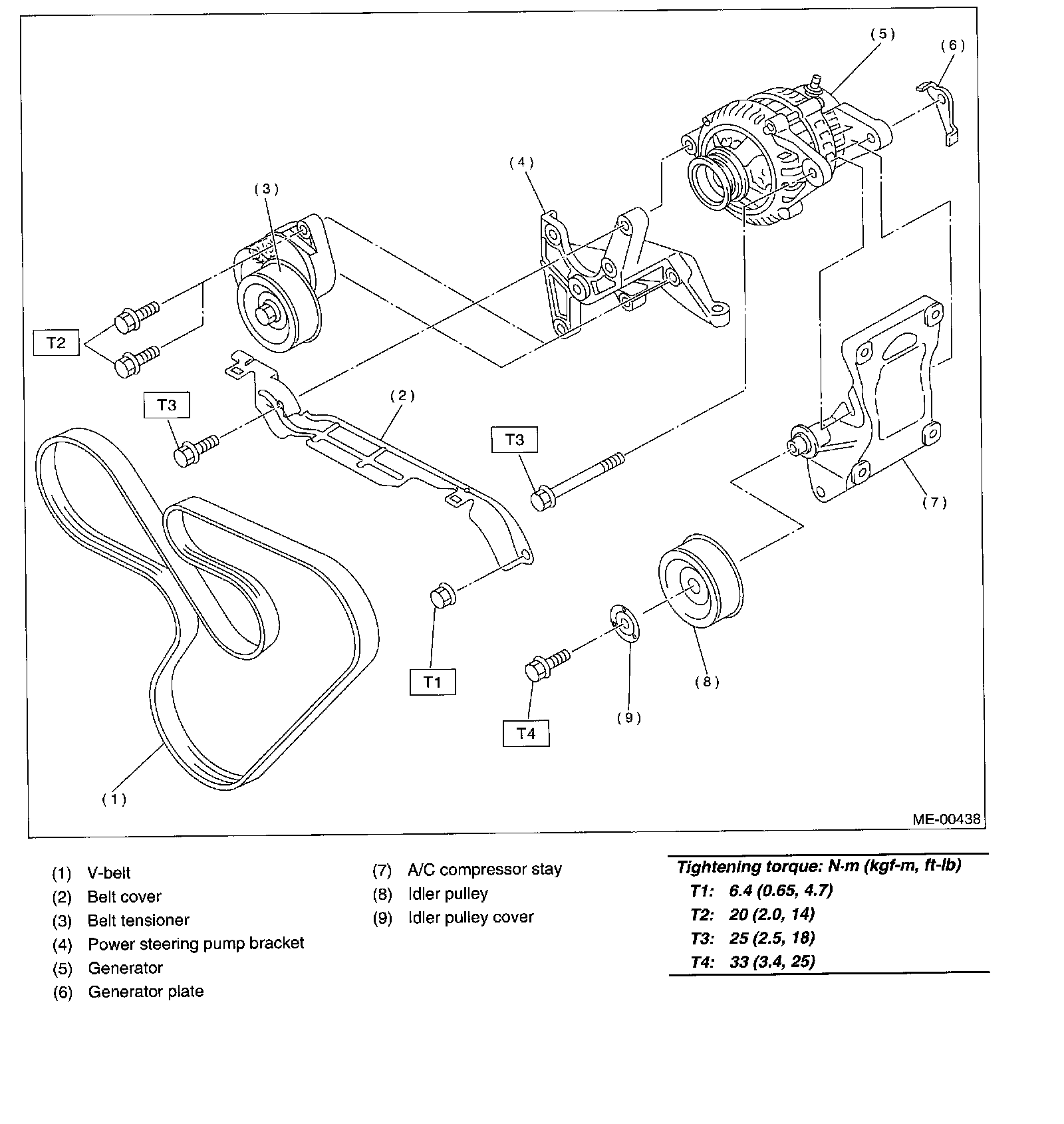

V-BELT

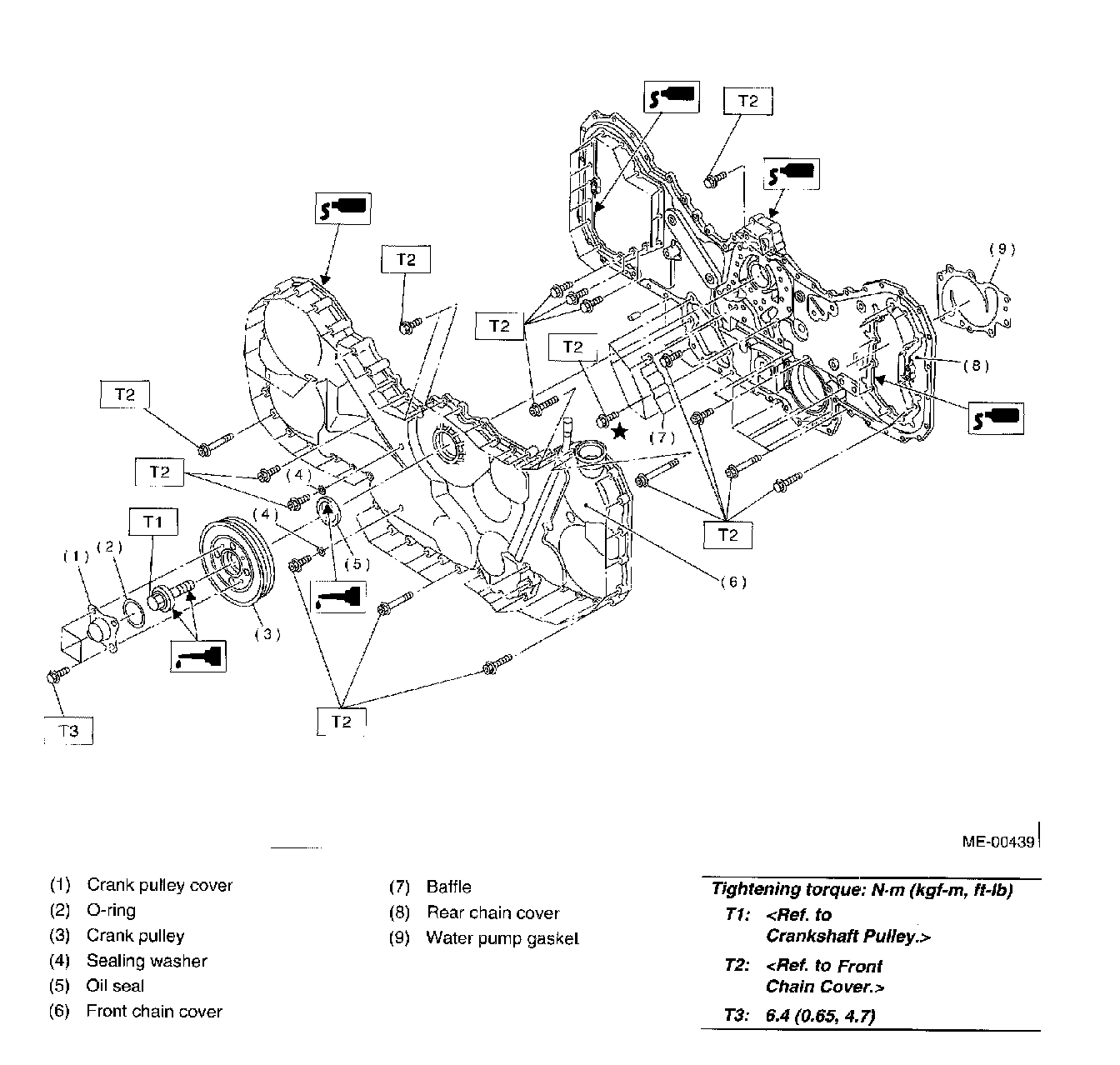

TIMING CHAIN COVER

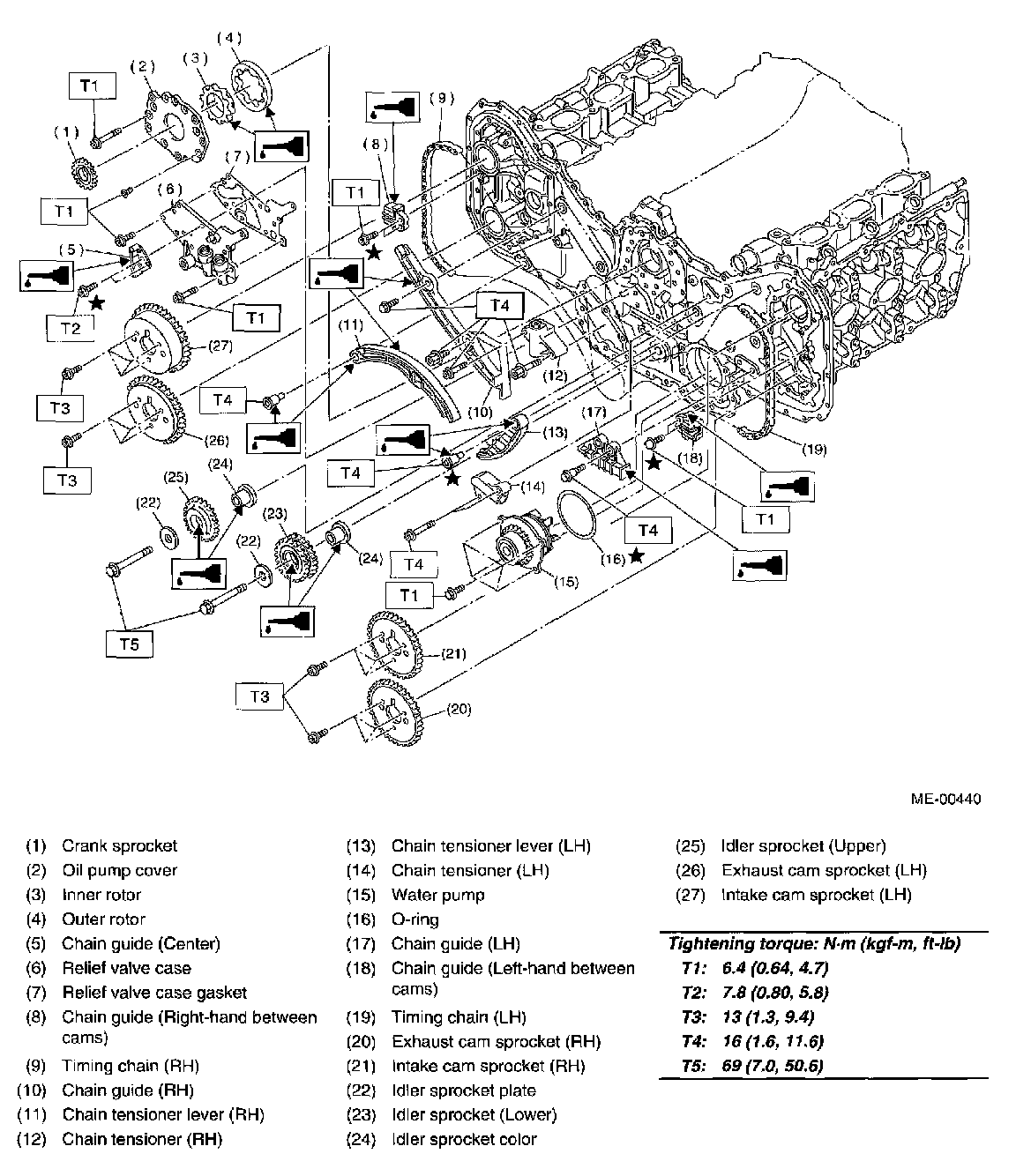

TIMING CHAIN

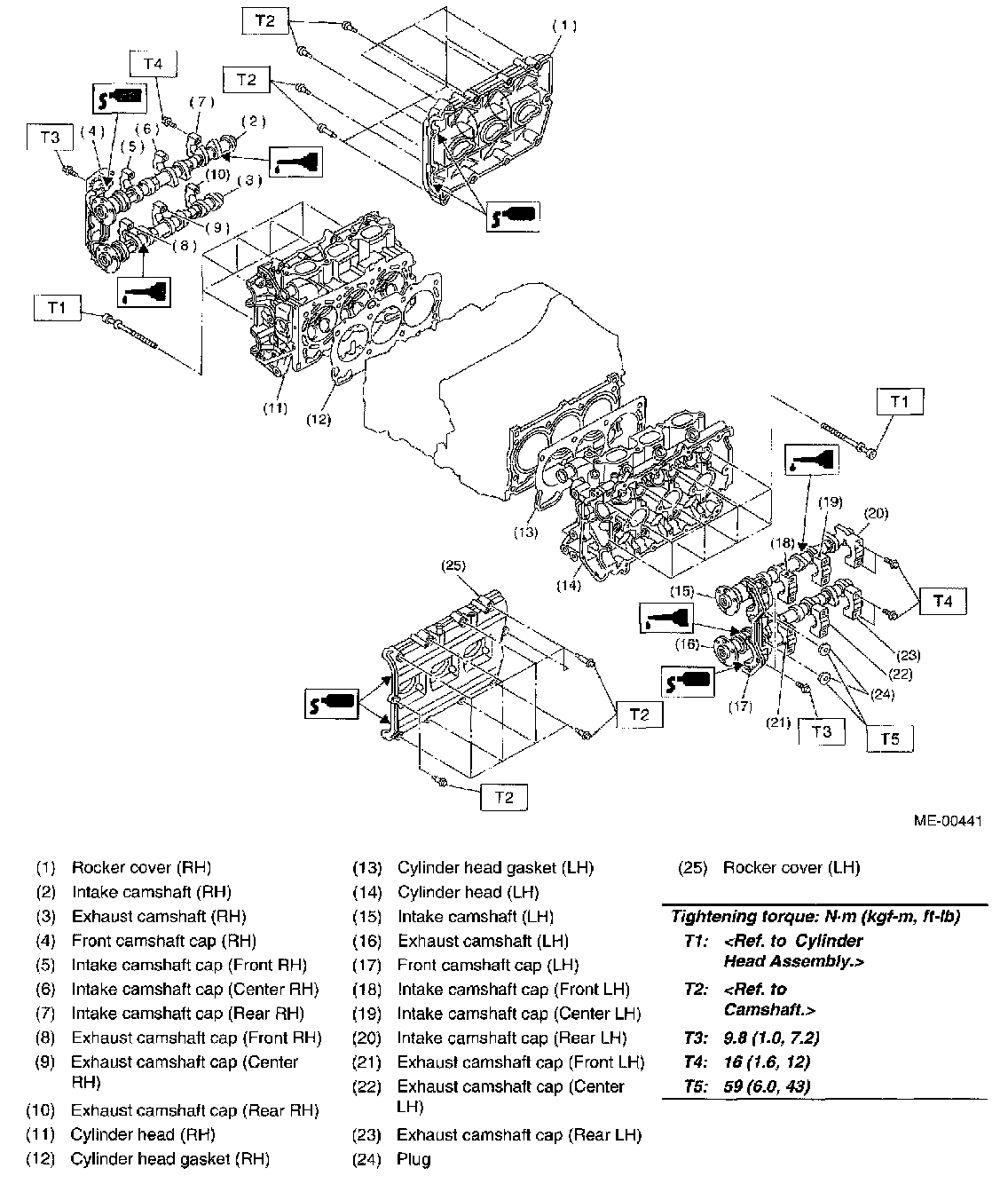

CYLINDER HEAD AND CAMSHAFT

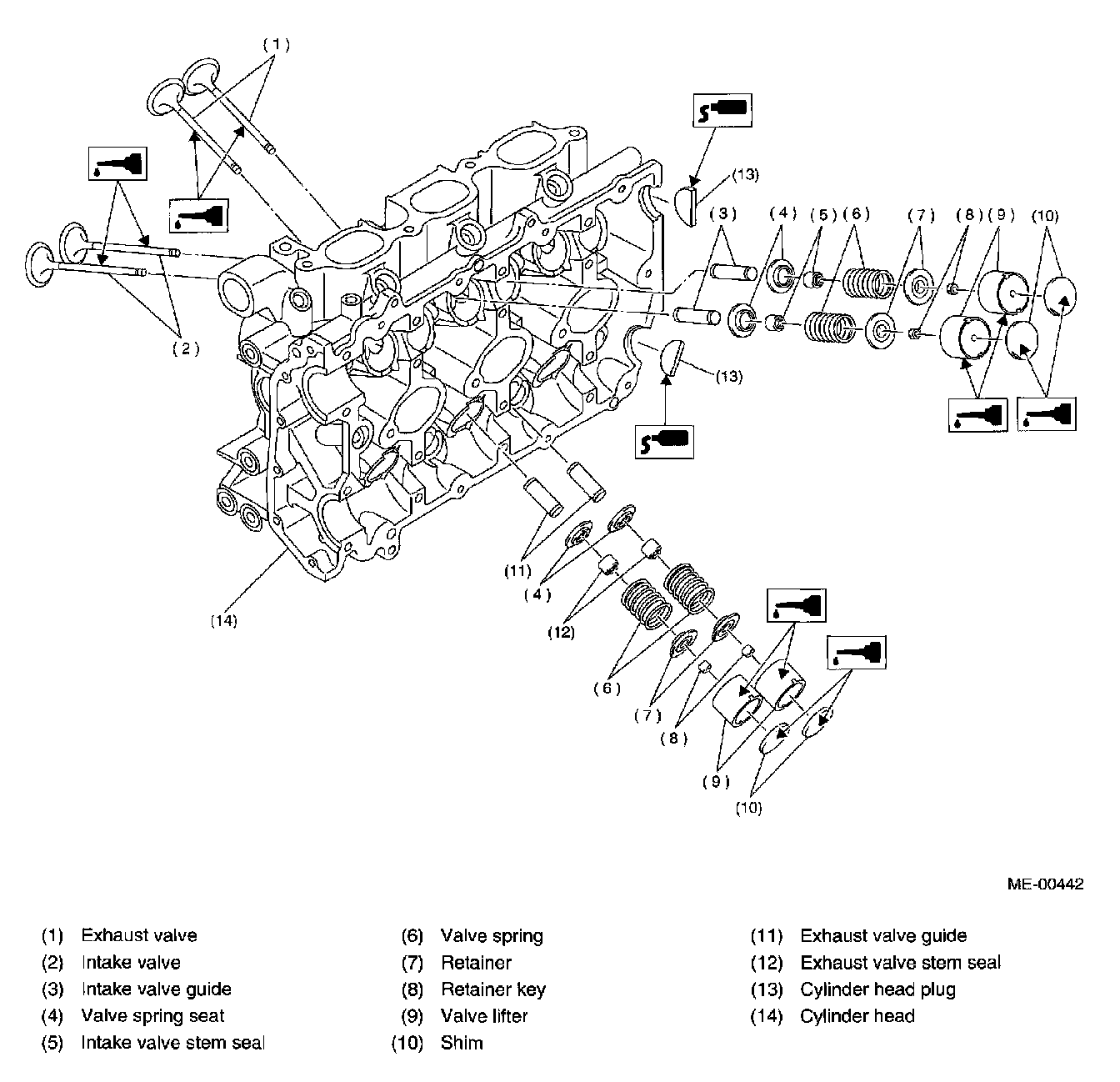

CYLINDER HEAD AND VALVE ASSEMBLY

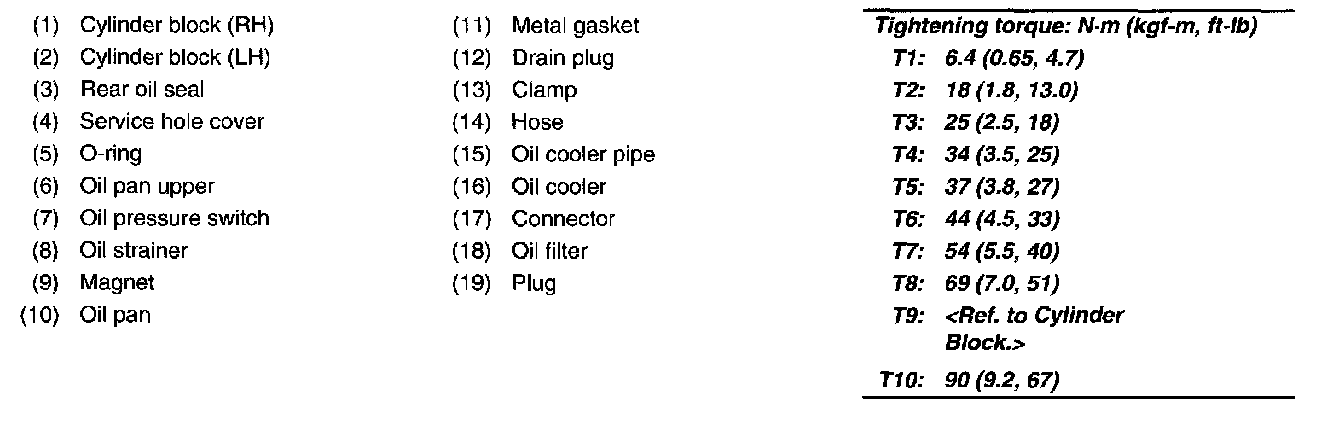

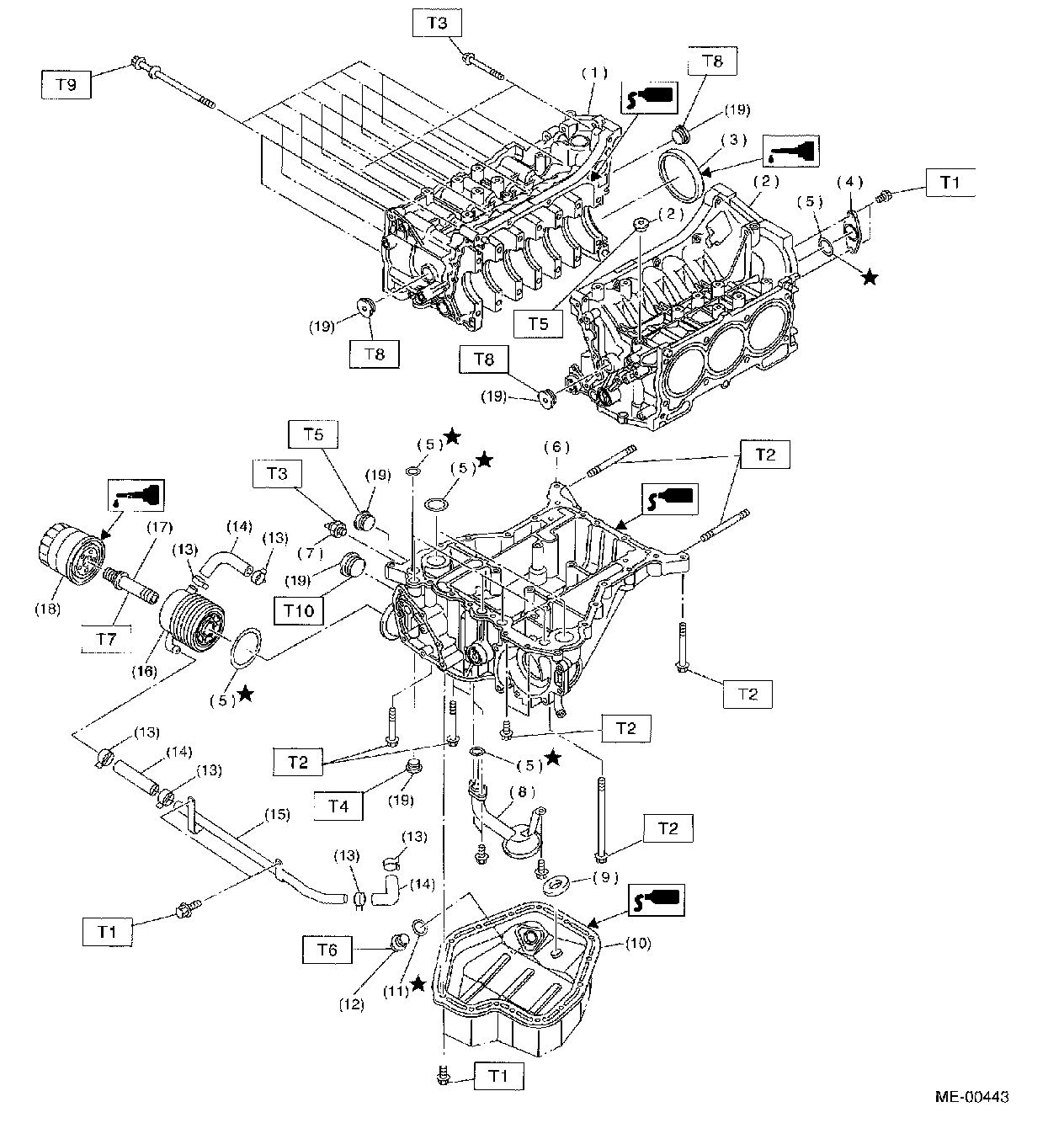

CYLINDER BLOCK

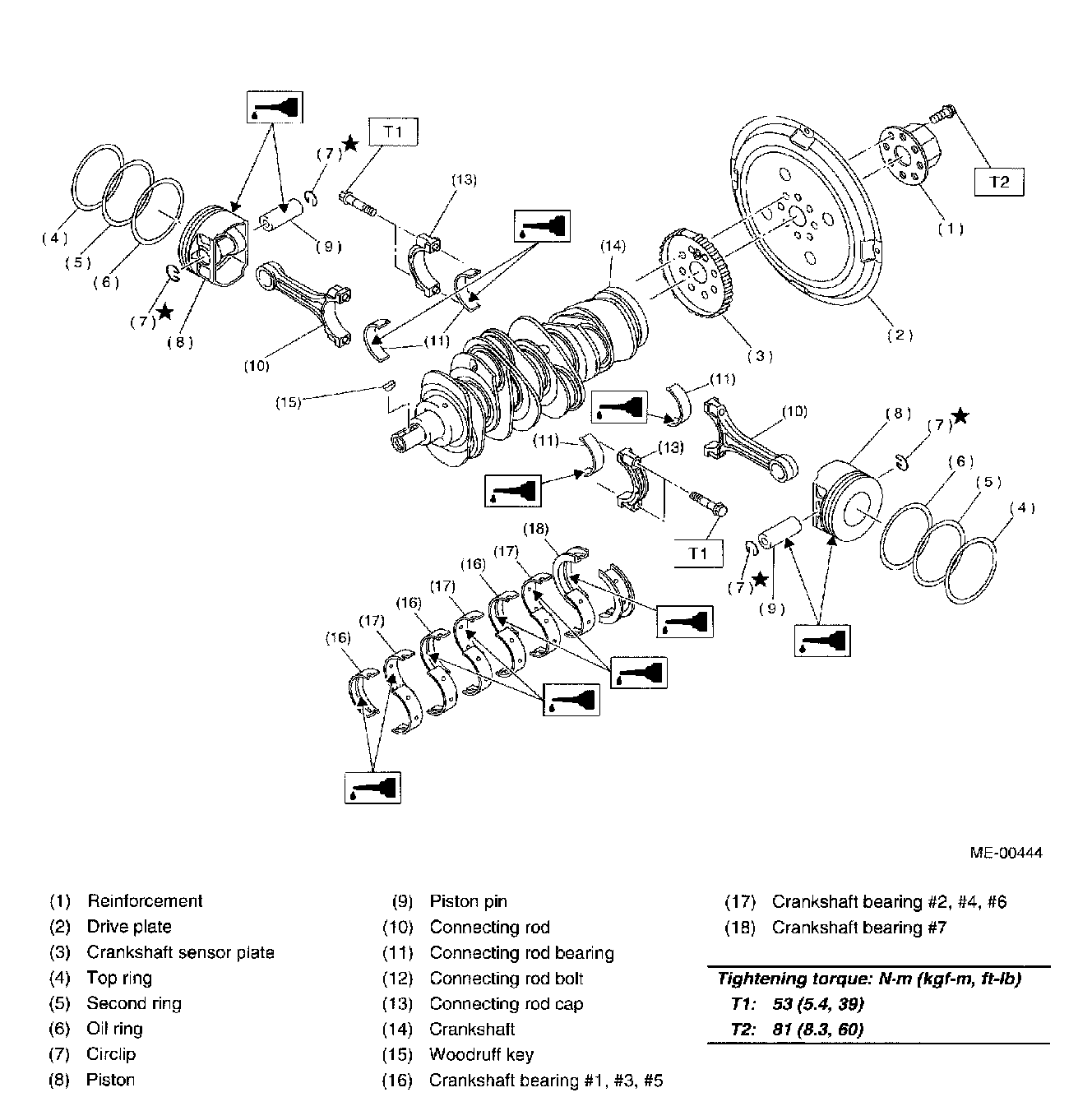

CRANKSHAFT AND PISTON

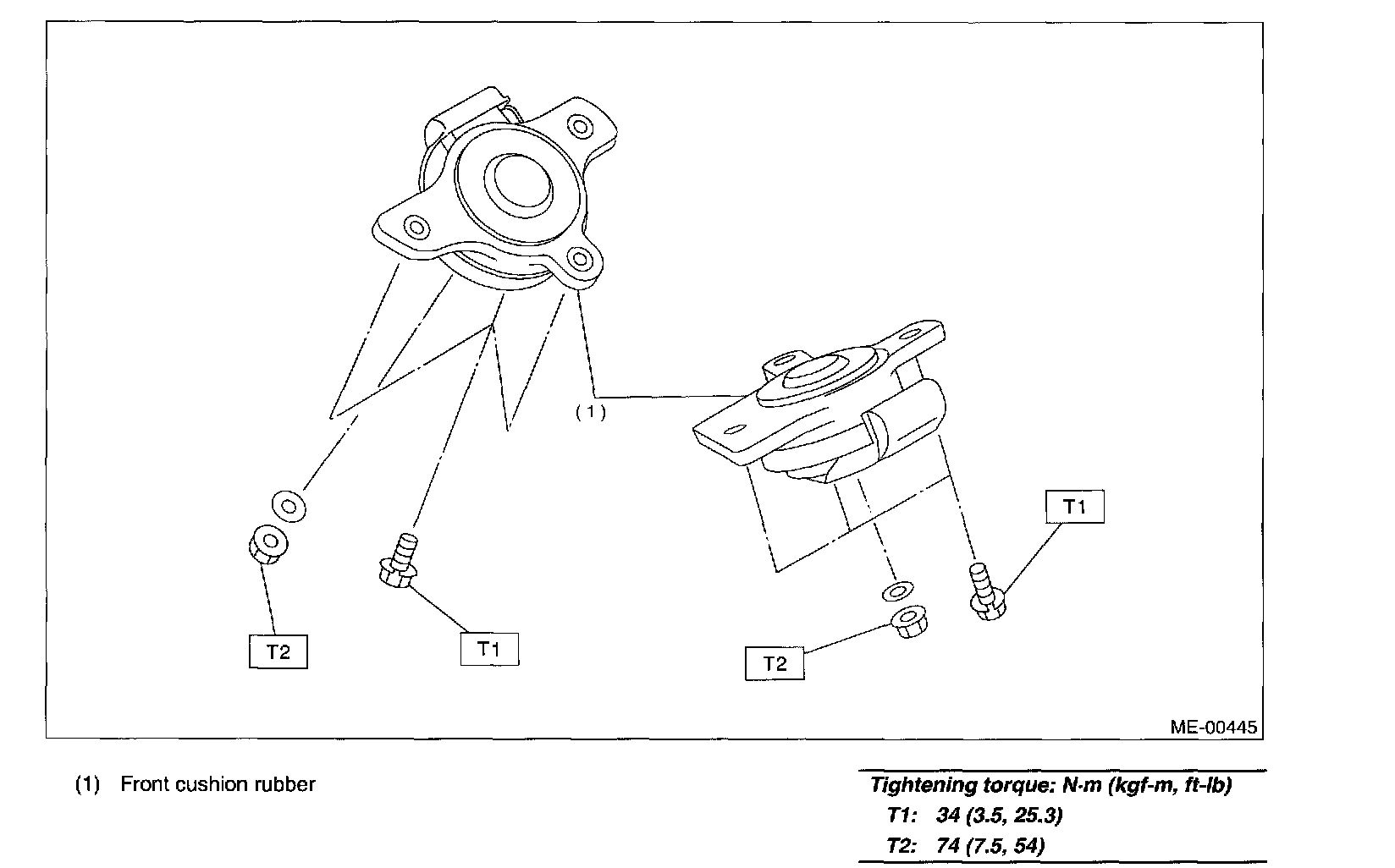

ENGINE MOUNTING
