Subaru
>>
2004
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Pedal Assy
Brake Pedal Assy
BRAKE PEDAL FOR MT MODEL

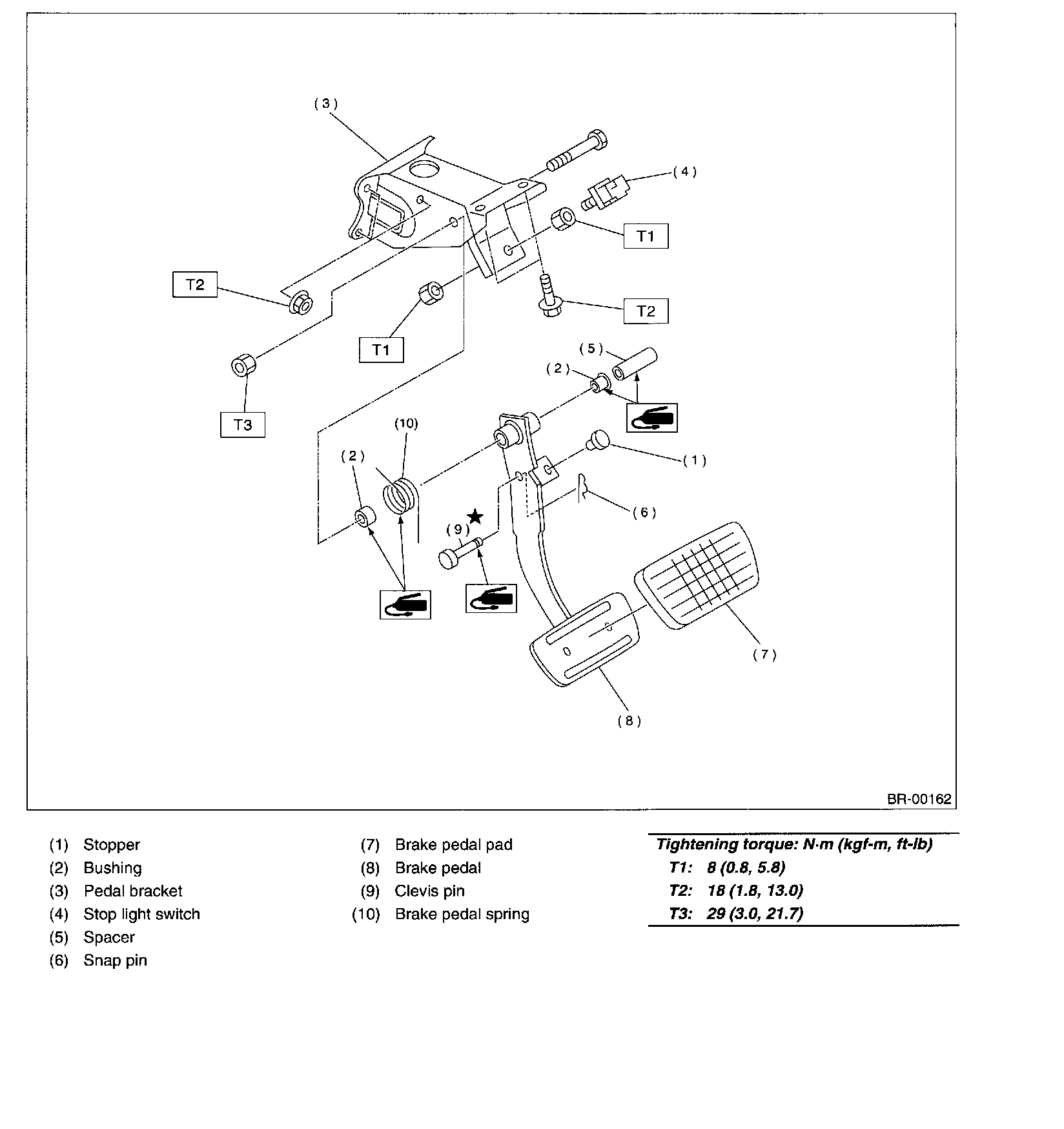

BRAKE PEDAL FOR AT MODEL
