Shifter A/T

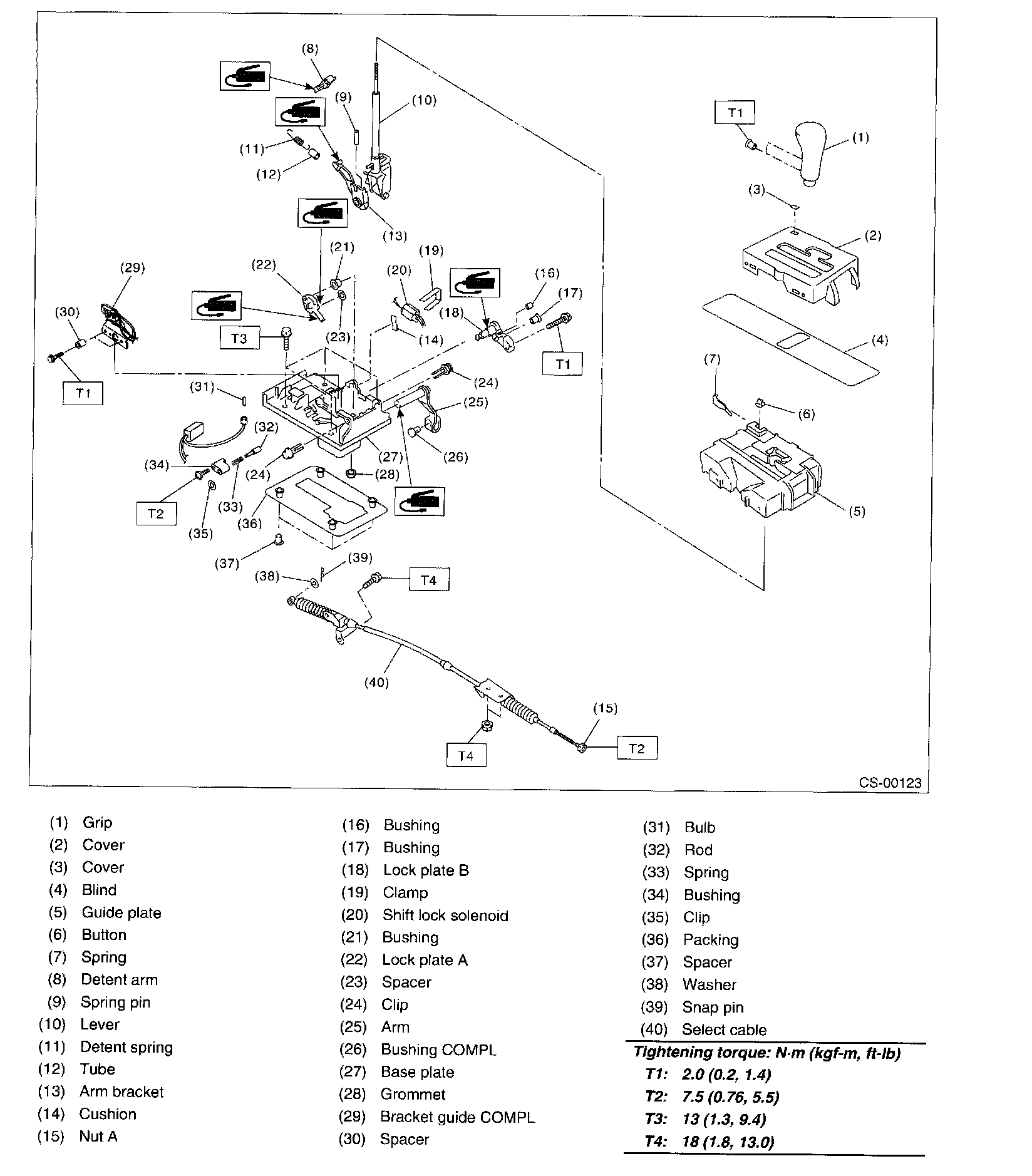

AT SELECT LEVER (EXCEPT SPORT SHIFT MODEL)
AT SELECT LEVER (SPORT SHIFT MODEL)

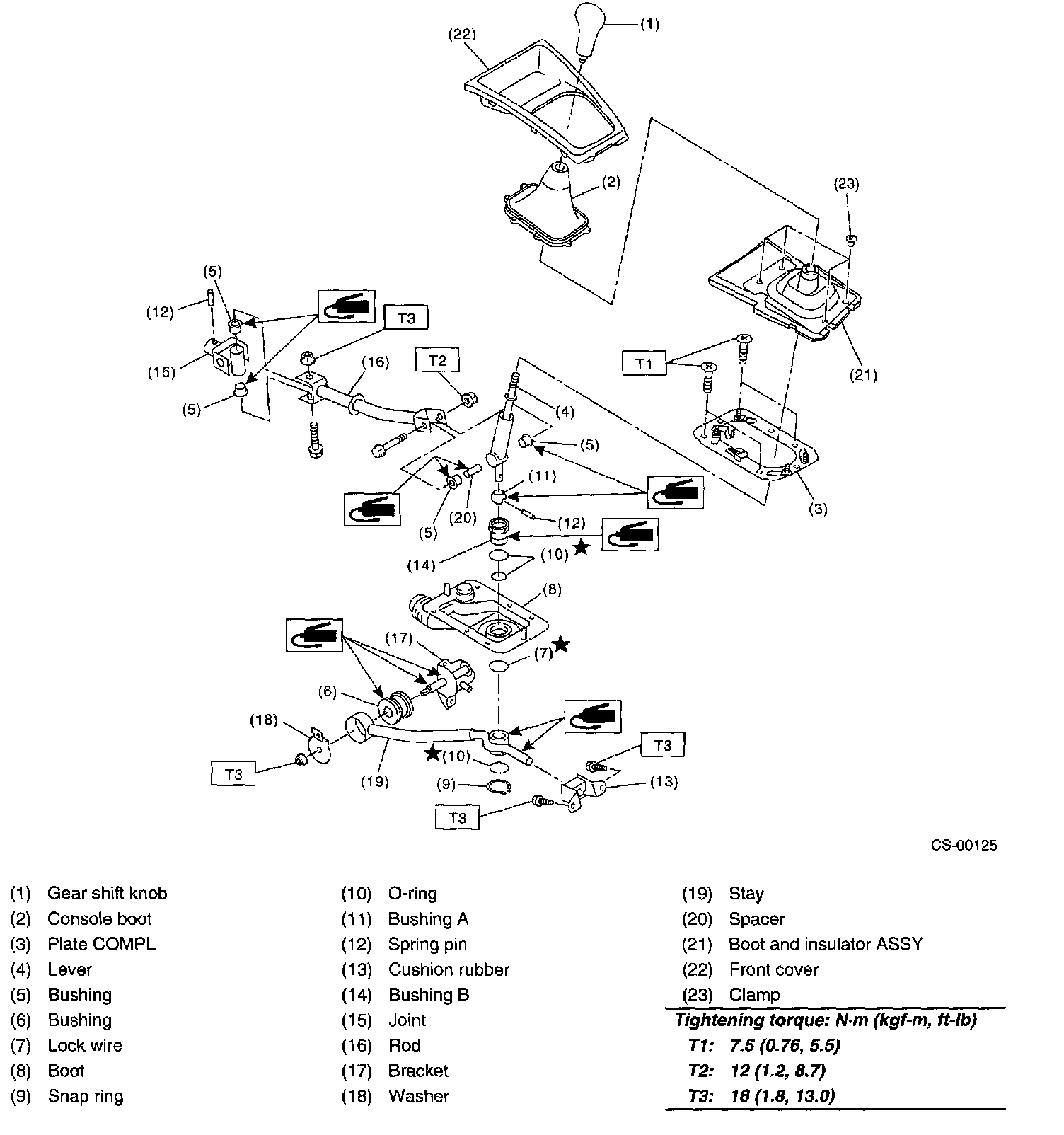

MT GEAR SHIFT LEVER
