Subaru
>>
2004
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R15-R158
R15-R158

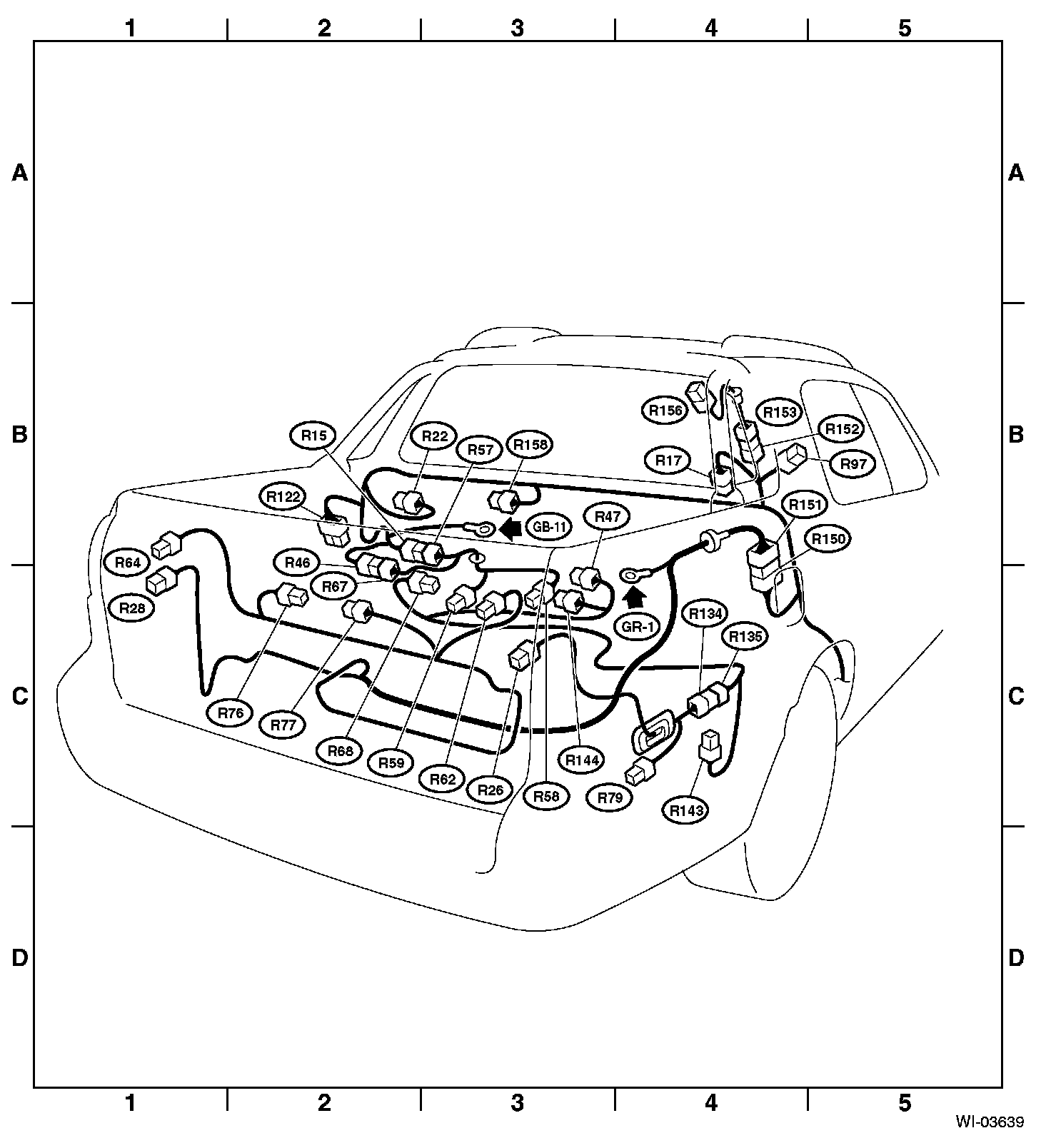

REAR WIRING HARNESS AND REAR TAIL GATE CORD
R15-R158:
Area View:
